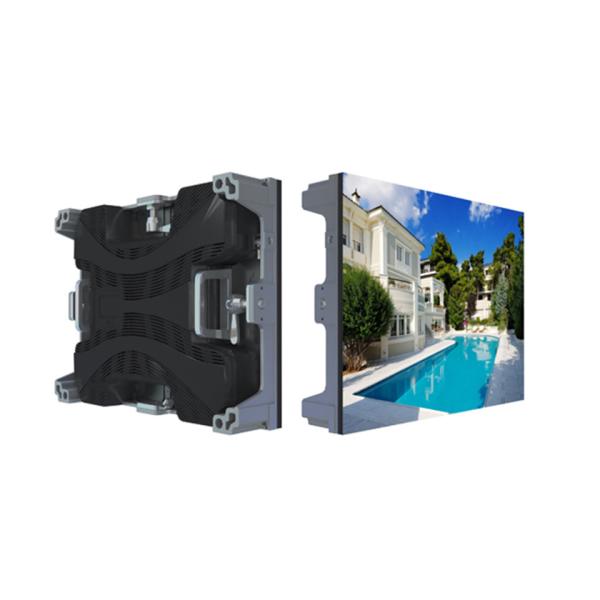

256x128mm Full Color Led Panel , Led Screen P2 1000cd/M2
256x128mm Full Color Led Panel , Led Screen P2 1000cd/M2
256x128mm Full Color Led Panel , Led Screen P2 1000cd/M2
256x128mm Full Color Led Panel , Led Screen P2 1000cd/M2
256x128mm Full Color Led Panel , Led Screen P2 1000cd/M2
256x128mm Full Color Led Panel , Led Screen P2 1000cd/M2
Specifications
Brand Name :
X-media
Model Number :
P2
Certification :
CE/ROHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
Shenzhen,China
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Application TV Station LED Screen hd Led
Cabinet material :
Die-casting Aluminum
Module size :
256x128mm
Screen dimension :
Customized design
Brightness :
>1000CD
Warranty :
5 years
Life span :
100000H
MTBF :
10000H
Description

Led Video Wall Indoor Full Color LED Display High Refresh Rate over 3840hz P2

Features


1, The led display screen have optional data interface depend on customers' requirements like DVI, VGA,

RGB, Pr Pb HDMI etc.

2, Our led display is PC connected and synchronously show all kinds of word, text, graph, picture, flash,

existing video, real time video, 2-dimention cartoon, and 3-dimention cartoon supported by your personal

computer.

3, Our led display have free control system software with on-line update and 12 kind of language including

English, French, Spanish, Polish, Italian, Portuguese, Russian and Korean.

4, Easy installation without any steel structure, wall-mounted installation or hanging installation

5, All parts front access to save installation space, more convenient for maintenance and installation

Indoor Full Color Led Display Product Specification

Item Technical parameter

Panel

 Dimension (W)256mm*128mm(H)
Pixel pitch 2mm
Pixel Density 250000dots/m2
Pixel configuration 1R1G1B
LED specification SMD 1515
Led Chip Epistar
Pixel resolution (W)160*160(H)
Panel weight 0.5KG

Cabinet&Bracket

 Weight for bracket 18KG/M2
Best viewing distance 120/90
Best viewing angle 2-80M
Working temperature -20-+65
Panel power supply 5V40A
Screen power supply AC110V—AC250V
Max power 800W/M2
Average power 350W/M2

Technical Parameter

 Driving device Constant current drive
Drive type 1/32 Scanning
Refresh frequency 3840HZ/S
Brightness 1000cd/M2
Life span 100000Hours
Communication distance

<100M

Indoor Full Color Led Display Production process

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

256x128mm Full Color Led Panel , Led Screen P2 1000cd/M2

Indoor Full Color Led Display Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

256x128mm Full Color Led Panel , Led Screen P2 1000cd/M2

FAQ

What kind of payment terms you can accept ?

We can accept T/T and .

What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the

quality of our products continuity.

What is your delivery time ?

Within 8-10 days according to your area and quantity.

Is your LED display competitive ?

Yes,we are led display manufacturer for more than 12 years.Mass and professional production

ensure our led display’s competitiveness.

Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 8-10 working days

8. Excellent R&D team,factory Price and assure you quality goods.
