Specifications
Brand Name :
X-media
Model Number :
P10mm
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Special led display
Cabinet material :
Aluminum
Module size :
480x320mm
Screen size :
Customized design
Brightness :
6000cd
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

P10 Indoor Film Special Led Display Fixed On Glass For Facade Of Building

Product Description

Transparent LED Film screen is a high-end product that breaks the conventional LED display
Mount components on highly transparent PCB boards using specific bare chips
Through the unique capping process, the display module is integrated into a highly transparent optical lens substrate with a high transparent display with a thickness of only 1~3mm.
Light, thin, transparent, easy to install, and achieve efficient and scalable advertising media
Turning glass into an advertising medium to develop more and more valuable advertising spots

P10 Film Special LED Display , transparent led film display 480x320mm Fixed On Glass

Product features:

Light ( ≤3.5kg / ㎡)

Thin ( 1 ~ 3mm)

Translucent and

transparent Can be cut

and bent High and low brightness can be switched No component on the screen

P10 Film Special LED Display , transparent led film display 480x320mm Fixed On GlassP10 Film Special LED Display , transparent led film display 480x320mm Fixed On Glass

Product Features, Give you a more perfect product

P10 Film Special LED Display , transparent led film display 480x320mm Fixed On GlassP10 Film Special LED Display , transparent led film display 480x320mm Fixed On Glass

P10 Film Special LED Display , transparent led film display 480x320mm Fixed On Glass

Specification

Model P2.5*5 P4*8 P5*10 P6 P6.5 P8 P10 P16
Model size(mm) 480x160 480x256 480x320 480x192 481X208 480x256 480x320 480x192
Transparency 45% 60% 68% 50% 60% 60% 70% 75%
weight(Kg/㎡) 1~3 1~3 1~3 1~3 1~3 1~3 1~3 1~3
Thickness(mm) ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
Pixel pitch(mm) 2.5X5 4X8 5X10 6X6 6.5X6.5 8X8 10X10 16X16
brightness(cd/㎡) 3000 4000 4000 4000 4000 4000 4000 3000
Chromaticity uniformity ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003
viewing angle( °) 160 160 160 160 160 160 160 160
Pixel composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Refresh rate(Hz) ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920
Average power(w/㎡) ≤420 ≤420 ≤300 ≤460 ≤400 ≤420 ≤400 ≤300
Maximum power consumption(w/㎡) ≤850 ≤850 ≤900 ≤920 ≤800 ≤850 ≤850 ≤600
Working temperature(℃) -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃
Working humidity(RH) 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90%
Driving Static Static Static Static Static Static Static Static
Control system colorlight colorlight colorlight colorlight colorlight Colorlight colorlight colorlight

Save cost, No need for steel frame structure, no need to change the appearance of the building.

effectively reducing transportation and installation costs

P10 Film Special LED Display , transparent led film display 480x320mm Fixed On Glass

LED Adhesive film Installation way

P10 Film Special LED Display , transparent led film display 480x320mm Fixed On Glass

P10 Film Special LED Display , transparent led film display 480x320mm Fixed On Glass

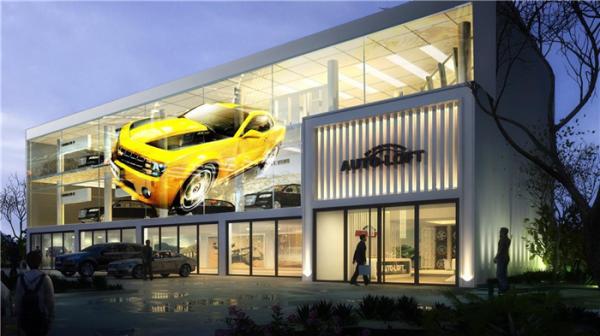

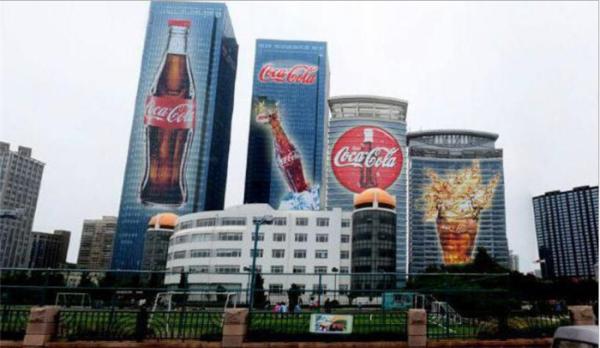

Show Case

P10 Film Special LED Display , transparent led film display 480x320mm Fixed On Glass

P10 Film Special LED Display , transparent led film display 480x320mm Fixed On GlassP10 Film Special LED Display , transparent led film display 480x320mm Fixed On Glass

♦ Why choose us:

Continues Quality

With more than 12 years experience in led display producing, equipments are updated regularly. What’s

more, unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology, our company have built

effective modular production. We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date, we will try our best to fulfill it, special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales: Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales: We will track the products usage and then constantly perfect our products.

♦ FAQ

What kind of payment terms you can accept ?

We can accept T/T and .

What about your Led Display quality ?

Checking in the whole manufacturing process & 100% inspection before shipment ensure the quality of

our products continuity.

What is your delivery time ?

Within 8-10 days according to your area and quantity.

Is your LED display competitive ?

Yes,we are led display manufacturer for more than 12 years.Mass and professional production ensure

our led display’s competitiveness.

Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension ( Width and Height)
2, Location of installation ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
