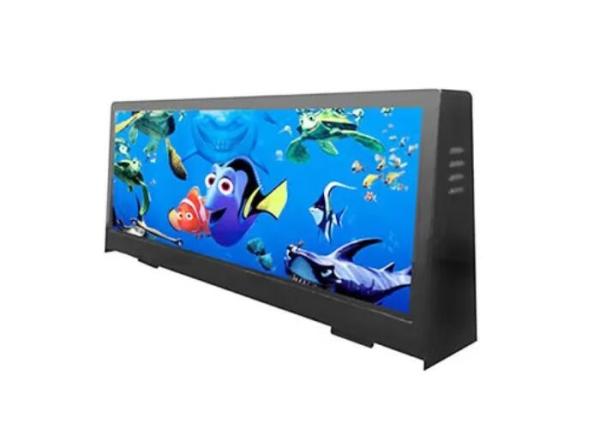

3535 Lamp LED Car Topper Signs
3535 Lamp LED Car Topper Signs
3535 Lamp LED Car Topper Signs
3535 Lamp LED Car Topper Signs
3535 Lamp LED Car Topper Signs
3535 Lamp LED Car Topper Signs
Specifications
Brand Name :
X-media
Model Number :
P6mm
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Car top Special LED display
Cabinet material :
Aluminum
Module size :
192x192mm
Screen size :
Customized design
Brightness :
IP65
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

Outdoor P6 Waterproof Car Sign Special LED Display Taxi Roof Screen Double Side

P6 Car LED sign display product description
1. Muiti-Connection Mode Group Control
(USB/WIFI USB/3G USB/4G USB&WIFI/3G/4G/GPS)
2. Easy Software, Intelligent Group Management
3. Passed FCC/CE/ROHS certifications
4. Production Capacity 500pcs for one month

♦ P6 Car LED sign display technical parameters

P6 car led sign display
Lamp size 3535
Resolution/mm 6
Pixel configuration RGB
Pixel density/pixels/m² 27777/m²
Module resolution 32x32
Module size/mm 192*192MM
View distance ≥5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 160(degrees)
Vertical view angle 160(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Warranty 5 years
Frame rate 60Hz
Refresh frequency >3840Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >10000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <300W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

Car sign LED display control way

3535 Lamp LED Car Topper Signs

3535 Lamp LED Car Topper Signs3535 Lamp LED Car Topper Signs

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea, air or DHL, multiple shipping ways for your choice.

3535 Lamp LED Car Topper Signs

Our Service
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English
3) Customized design is available, OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 3 years warranty

3535 Lamp LED Car Topper Signs

♦ Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range

Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing:
1, Dimension ( Width and Height)
2, Location of installation ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.

Our team will be forever here to offer you full supports !!!
