Specifications
Brand Name :
X-media
Model Number :
P4.81
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Digital Dance Floor Tiles
Cabinet material :
Aluminum
Module size :
250mmx250mm
Screen size :
Customized design
Brightness :
6000cd
Warranty :
5 years
Life span :
100,000H
MTBF :
10,000H
Description

P4.81 Sensitive Led Digital Dance Floor Tiles For Disco And Wine Bar

♦ Description
Led video dance floor is a new digital terrestrial. Our led dance floor uses a high strength resin mask, the support of solid aluminum die-casting equipment, big load-bearing capacity, easy to connect, can be directly stampede with highly performance protective structure, can be connected seamlessly next panel, random combinations.


♦ RGB colorful LED dance floor
Ø Unlimited programming effects
Ø Special lighting effect
Ø 32-bit colour (16.7 million color combinations)
Ø Modular & highly portable
Ø Quick and easy installation
Ø More affordable than any existing solutions
Ø Sealed for long, durable life time

♦ Product specification

LED Specifications
1 Type SMD
2 LED Standard Real Pixel(1R1G1B)
3 Red Wavelength 625-630nm
4 Green Wavelength 515-530nm
5 Blue Wavelength 465-475nm
Module Specifications
1 Pixel Pitch 4.81mm
2 Resolution 52x52dots
3 Module size 250x250mm
Cabinet Specifications
1 Cabinet Size(W*H) 500x500mm
2 Cabinet Resolution 104x104dots
3 Pixel Density 43222dots/㎡
4 Cabinet Weight ≤6.5kg
5 Material die casting aluminum
6 Flatness of cabinet ≤0.3mm
Screen Parameters
1 Color /Brightness Calibration Yes
2 Color Temperature(K) 3000-10000
3 Light Centre Distance Deviation <3%
4 Brightness Uniformity ≥97%
5 Color Uniformity Within ±0.003C×,Cy
6 Contrast Ratio 5000:1
7 View Angle Horizontal160°/ Vertical 140°
8 Input Voltage AC100~240V(50-60Hz)
9 Power Consumption Max:800w/㎡ Avg:280w/㎡
10 Driving Method 13 scaning
11 Protection Level IP65 waterproof
12 Grey Scale Levels R(256) G(256) B(256)
13 Life Span 100,000 Hrs
14 Temperature-Operating -20 — 40℃
15 Humidity-Operating 10 - 99%
16 Features anti-slip,anti-collision,big load-bearing capacity
17 Usage led floors, led wall background
18 Display function txt, picture, video

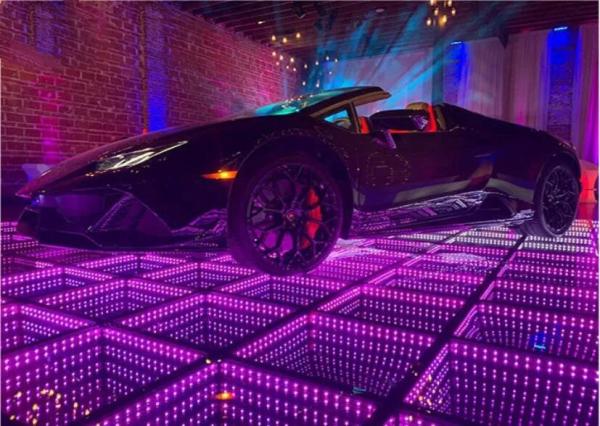

Product Effect

P4.81 Sensitive LED Dance Floor Panels For Disco And Wine BarP4.81 Sensitive LED Dance Floor Panels For Disco And Wine Bar

♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea, air or DHL,multiple shipping ways for your choice.

P4.81 Sensitive LED Dance Floor Panels For Disco And Wine Bar

♦ Applications
Stage, Sports, advertising, traffic, events, stadium, shopping center, airport, exhibitions, car shows, fashion
shows, concerts, ceremonies, entertainment, etc.

♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation, regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.

P4.81 Sensitive LED Dance Floor Panels For Disco And Wine Bar

FAQ:

Q1: Can i visit your factory in China?

A1: Usually except our staff, other persons are not allowed to visit the factory. As you know it is not good for workers to produce intently. But, of course, our factory is open to our customers, very welcome to visit us, and the person who is responsible will guide you to scan the workshop every step, you will know the rough producing situation, then you will be trustful to us.

Q2: What is the pixel pitch?

A2: The pixel pitch is the distance between the centre of an LED (or group of LEDs that make up a pixel) to the next adjacent LED. The smaller this distance, the closer all the LEDs on the screen are together and the better the resolution – meaning a more detailed picture. So a lower pixel pitch number means a better resolution than a higher pixel pitch number.

Q3: Do you provide onsite assistance?

A3: Yes, our trained professional is available during your event to install, dismantle and support.

Q4: How is the switching sequence of LED display screen?

A4: 1) screen switching sequence: on, first turn on the computer, then screen; off, first shut off screen, then computer. 2) Interval of switching LED display must be greater than 1 minute.

Q5: How is the ambient temperature of LED display screen?

A5: When ambient temperature is too high or cooling condition is bad, users had better not to turn on the screen for a long time. Screen shall be installed in temperature from-10°C to 40°C. Over environment temperature range, temperature control equipment must be installed. It is forbidden to install LED display near any heat source.

Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension ( Width and Height)
2, Location of installation. ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
