Specifications
Brand Name :
X-media
Model Number :
P10mm
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Pasting Led Screen
Cabinet material :
Aluminum
Module size :
480x320mm
Cabinet size :
480x320mm
Brightness :
5500cd
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

Indoor P10 Pasting Led Screen Fixed On Glass, Film LED Display For Super Market

Product Description

Transparent LED Film screen is a high-end product that breaks the conventional LED display
Mount components on highly transparent PCB boards using specific bare chips
Through the unique capping process, the display module is integrated into a highly transparent optical lens substrate with a high transparent display with a thickness of only 1~3mm.
Light, thin, transparent, easy to install, and achieve efficient and scalable advertising media
Turning glass into an advertising medium to develop more and more valuable advertising spots

P10mm Special LED Display , Translucent LED Film Display For Super Market

Product features:

Light ( ≤3.5kg / ㎡)

Thin ( 1 ~ 3mm)

Translucent and

transparent Can be cut

and bent High and low brightness can be switched No component on the screen

P10mm Special LED Display , Translucent LED Film Display For Super MarketP10mm Special LED Display , Translucent LED Film Display For Super Market

Product Features, Give you a more perfect product

P10mm Special LED Display , Translucent LED Film Display For Super Market

P10mm Special LED Display , Translucent LED Film Display For Super MarketP10mm Special LED Display , Translucent LED Film Display For Super Market

Specification

Model P2.5*5 P4*8 P5*10 P6 P6.5 P8 P10 P16
Model size(mm) 480x160 480x256 480x320 480x192 481X208 480x256 480x320 480x192
Transparency 45% 60% 68% 50% 60% 60% 70% 75%
weight(Kg/㎡) 1~3 1~3 1~3 1~3 1~3 1~3 1~3 1~3
Thickness(mm) ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
Pixel pitch(mm) 2.5X5 4X8 5X10 6X6 6.5X6.5 8X8 10X10 16X16
brightness(cd/㎡) 3000 4000 4000 4000 4000 4000 4000 3000
Chromaticity uniformity ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003
viewing angle( °) 160 160 160 160 160 160 160 160
Pixel composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Refresh rate(Hz) ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920
Average power(w/㎡) ≤420 ≤420 ≤300 ≤460 ≤400 ≤420 ≤400 ≤300
Maximum power consumption(w/㎡) ≤850 ≤850 ≤900 ≤920 ≤800 ≤850 ≤850 ≤600
Working temperature(℃) -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃ -20℃-55℃
Working humidity(RH) 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90%
Driving Static Static Static Static Static Static Static Static
Control system colorlight colorlight colorlight colorlight colorlight Colorlight colorlight colorlight

Save cost, No need for steel frame structure, no need to change the appearance of the building.

effectively reducing transportation and installation costs

P10mm Special LED Display , Translucent LED Film Display For Super Market

LED Adhesive film Installation way

P10mm Special LED Display , Translucent LED Film Display For Super Market

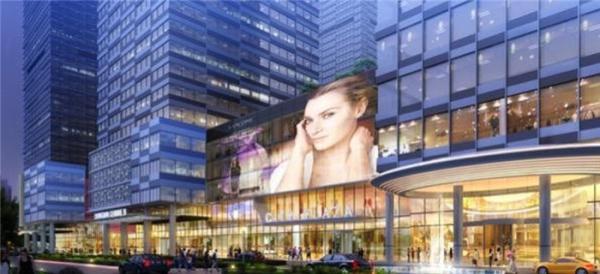

Application

P10mm Special LED Display , Translucent LED Film Display For Super Market

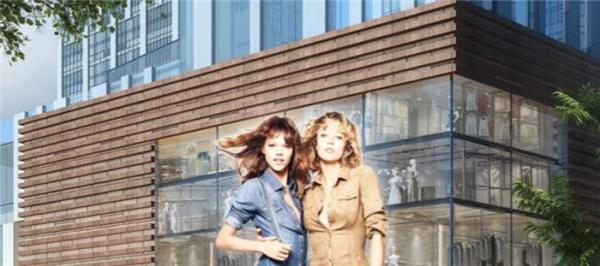

Show Case

P10mm Special LED Display , Translucent LED Film Display For Super MarketP10mm Special LED Display , Translucent LED Film Display For Super MarketP10mm Special LED Display , Translucent LED Film Display For Super Market

♦ Our advantages

Professional Manufacturer of led display

1. OEM service, No MOQ

2. Easy installation, regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case, you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 8-10 working days

8. Excellent R&D team, factory Price and assure you quality goods.

Our Service

Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period within 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

♦ Why choose us:

Continues Quality

With more than 12 years experience in led display producing,equipments are updated regularly. What’s

more, unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology, our company have built

effective modular production. We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it. Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales: Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales: We will track the products usage and then constantly perfect our products.

Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension ( Width and Height)
2, Location of installation. ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
