Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor
Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor
Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor
Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor
Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor
Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor
Specifications
Brand Name :
X-media
Model Number :
8mm
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Ball led display
Cabinet material :
Iron
Module size :
Triangle module
Screen size :
Customized design
Brightness :
6000cd/sqm
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

Outdoor P8 Ball LED Display Customized Design, Iron Cabinet Sphere Led Screen

Welcome to Shenzhen X-Media Electronic Co.,Ltd we are the most professional provider of outdoor and indoor led displays with 12 years experience, we have the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry.with the perfect global marketing network, our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.

As always do, Media will continue to spare no efforts in reinforcing its position as a product, technology and market. we always contribute our efforts to help our customers improve visual effect and fulfill its social responsibilities.

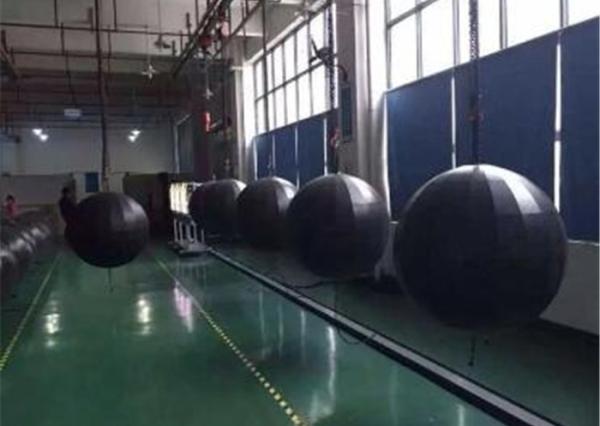

the led ball is made by 5 shapes indoor p8 soft module, 1.2m diameter spherical steel structure and mooncell control card.this type point density: 15625dots/sqm.

♦ Product specification

indoor SMD P8mm
Pixel configuration RGB 3 in 1
LED chip Epistar
Lamp size 3535
Pixel density/pixels/m² 15625/m²
Module resolution Triangle Module
Module size/mm Triangle Module
View distance ≥10m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >6000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 360(degrees)
Vertical view angle 360(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/4
Frame rate 60Hz
Refresh frequency >3840Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoorEpistar LED Sphere Display 6000cd/sqm high Brightness for outdoorEpistar LED Sphere Display 6000cd/sqm high Brightness for outdoor

Company introduction

Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor

Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor

Certification

Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor

Our exhibition

Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor

Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor

Package: Wooden Case or Flight Case

Delivery Time: 8-10 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Epistar LED Sphere Display 6000cd/sqm high Brightness for outdoor

Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.

Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension ( Width and Height)
2, Location of installation ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
