P5 Advertisement LED Display , LED Video Wall Display 60Hz
P5 Advertisement LED Display , LED Video Wall Display 60Hz
P5 Advertisement LED Display , LED Video Wall Display 60Hz
P5 Advertisement LED Display , LED Video Wall Display 60Hz
P5 Advertisement LED Display , LED Video Wall Display 60Hz
P5 Advertisement LED Display , LED Video Wall Display 60Hz
Specifications
Brand Name :
X-media
Model Number :
P5mm
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Advertising led display
Cabinet material :
P5mm
Module size :
320x160mm
Screen size :
Negotiation
Brightness :
5500cd
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

P5 Advertisement LED Display IP65 HD Video Screen, Advertising LED Video Wall

♦ Easy operation:

The products adopt popular video playing software to facilitate system operations.

♦ Good effect:

The products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.

♦ Product specification

outdoor SMD P5
Lamp size 2121
Resolution/mm 5
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 40000/m²
Module resolution 32x32
Module size/mm 320*160
View distance ≥5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >10,000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

Product overviews
Items Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display
Material steel,aluminum ,die casting aluminum
Certificates CE, FCC,RoHS, CCC, UL
Payment
terms		 30% deposit before production, 70% balance before shipping
T/T
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 8 to 10 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.

P5 Advertisement LED Display , LED Video Wall Display 60Hz

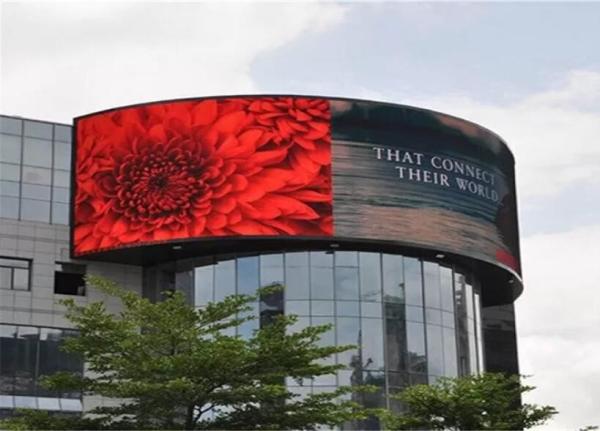

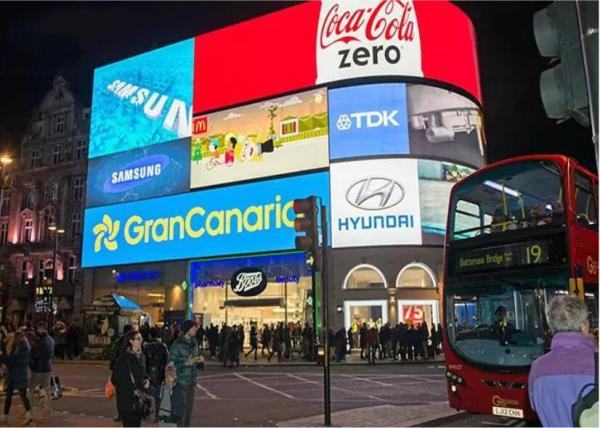

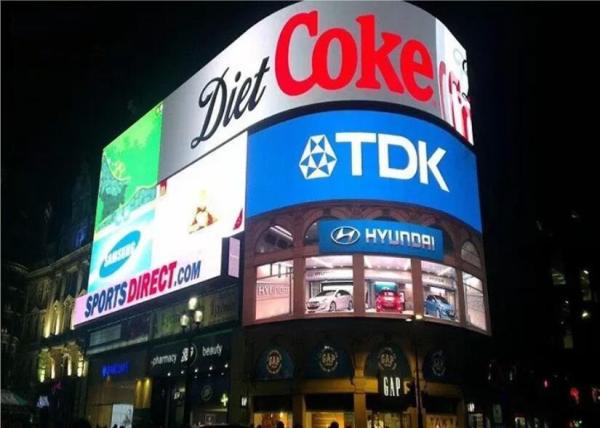

Advertising LED video wall case

P5 Advertisement LED Display , LED Video Wall Display 60Hz

Shipping ang package:

In our company all goods we can use our own freight forwarding,the cost can be low; But is you want use your own,

it's ok. So normally we use air and sea,the packages are wooden and flight cases.

P5 Advertisement LED Display , LED Video Wall Display 60Hz

The answers which you may care:

1. We accept T/T and payment;

2. The delivery time is about 8-10 working days after receiving your down payment;

3. Five years warranty for free;

4. We will send you an instruction manual before using,if still confused can contact us;

P5 Advertisement LED Display , LED Video Wall Display 60Hz

Welcome to visit our website and inquire us more info,waiting for you all the time!!!
