Specifications
Humidity Range :
10% to 90% non-condensing
Price :
To be discussed
Pixel Pitch :
2.0 mm
Brightness :
750-800cd
Brand Name :
No Brand
Model Number :
Indoor P2.0 Flexible LED Screen with 240mmx120mm Standardized Size and Ultra-Thin Design and Flexible Circuit Board
Certification :
CE, CCC, FCC, CB, RoHs, EMC
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
10000above
Delivery Time :
10-15days
Packaging Details :
Cardboard packaging； Outer box dimensions（mm）：550×450×295
Refresh Rate :
≥3840 Hz
Color Depth :
12-13 bit
Lifespan :
≥ 100,000 hours
Module Size :
240mm x 1200mm
Weight Per Module :
217g
Display Type :
Flexible LED
Operating Temperature :
-20°C to 40°C
Description
Indoor P2.0 Flexible LED Screen
Standardized 240mm x 120mm modules with ultra-thin design and flexible circuit board technology for curved display applications.
Product Overview
Flexible LED display modules represent a significant technological advancement, designed with bendable LED strip technology to create curved screens, cylinders, and artistic displays. These modules break from traditional rigid systems, offering graceful curves and vibrant visual experiences for various installation requirements.
Key Technical Features
  • Standardized module dimensions: 240mm x 120mm
  • Low current consumption with minimal heat generation
  • High contrast ratio and refresh rate for superior display quality

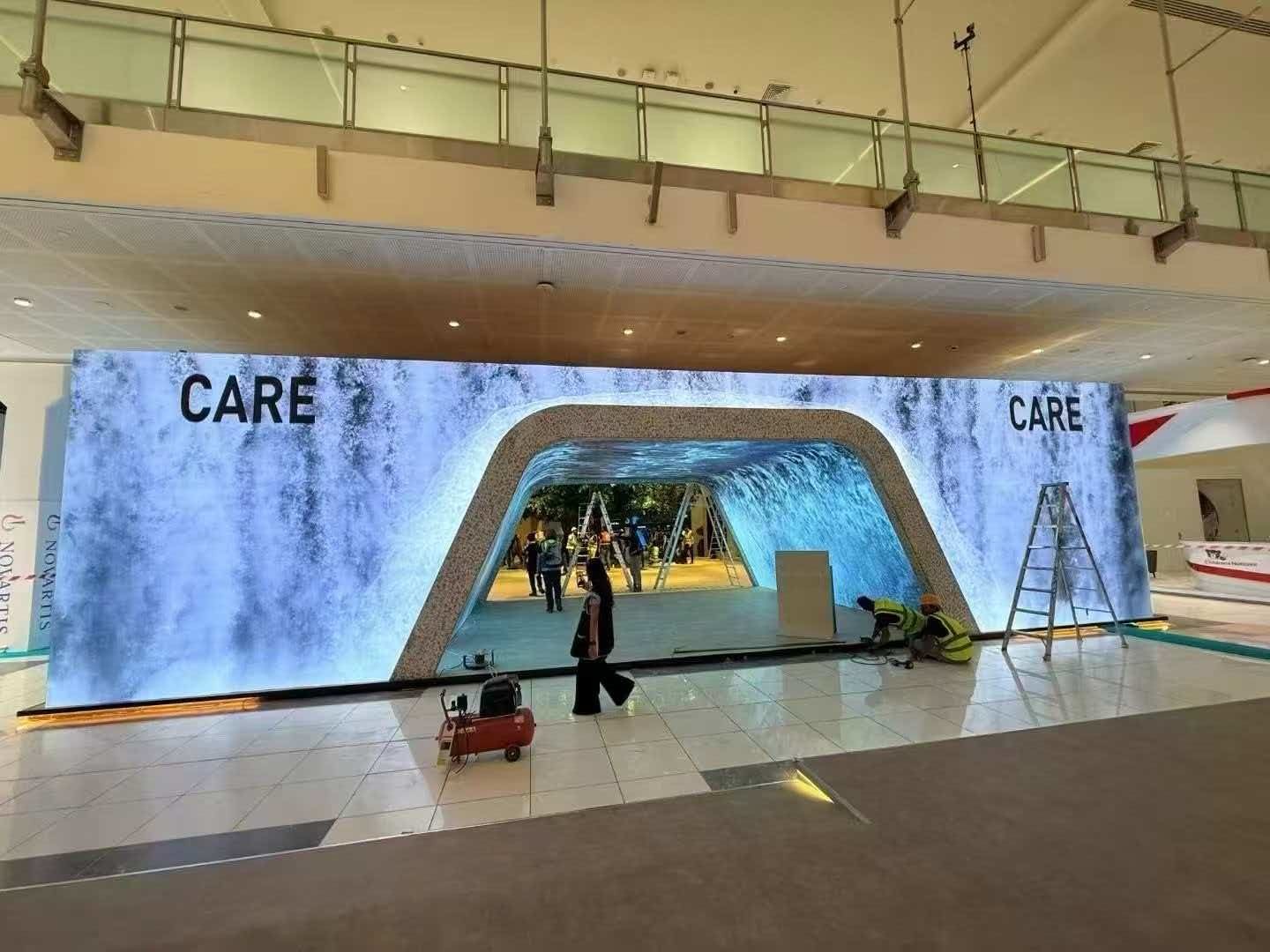

  • Ideal for artistic displays: cylindrical, spiral, wave, and ribbon screens
  • Applications include planning halls, museums, galleries, and creative centers
  • High-strength sandblasted sheet metal iron casing
  • Strong magnetic adsorption mounting system with adjustable height
  • Front-maintenance design for easy access in special scenarios
  • Flexible PCB with silicone bottom casing for enhanced flexibility
  • Ultra-thin 8.6mm profile with minimal space requirements
  • Copper pillar soldering with adhesive bonding for secure installation
  • 14 magnets per module (2000 GS strength) preventing delamination and warping
Technical Specifications
Parameter Category Specification Details
Model P2
Pixel Configuration 1R1G1B (Full Color)
LED Chip Packaging SMD 1515
Pixel Density 250,000 dots/m²
Module Dimensions 240 x 120 x 8.6 mm (L x H x T)
Module Resolution 120 x 60
Scanning Method 30 scans
Refresh Rate 3840 Hz
Frame Rate 60 Hz
Grayscale Levels 12-13 bit
Assembly Diameter 611 mm
Curvature ≥158°
Brightness 750-800 cd
Color Temperature 10,000-12,000 K (Adjustable)
Viewing Angles Horizontal: 150° / Vertical: 120°
Contrast Ratio ≥5000:1
Power Supply Voltage DC 5V
Maximum Power Consumption 14W per module
Operating Temperature -20°C to 40°C
Typical Lifespan 100,000 hours
Installation Guidelines
Important Precautions
  • Operators must wear anti-static gloves during assembly
  • Avoid water contact - use anti-static soft brush for cleaning only
  • Maintain working environment humidity between 20% and 75%
  • Handle wires gently to prevent damage to copper pillars and PCB
  • Use painted steel box structure instead of galvanized square tubes
  • Recommended powder coating process for curved enclosures
  • Maintain bending angle between 169° and 180°
  • Avoid violent or repeated bending of modules
Warranty Note: Product malfunctions or damage caused by failure to follow installation precautions or human error are not covered under manufacturer's warranty. Please retain all documentation and contact our company with any questions.
Packaging Information
Module Size (mm) Outer Box Dimensions (mm) Modules per Carton Total Weight (KG)
240 x 120 550 x 450 x 295 84 pieces 19.7 KG
System Components
Compatible Accessories
  • Power Supply: Input AC 110/220V, Output DC 5V, 200W
  • Control Systems: Compatible with Linsn, Novastar, Colorlight
  • Receiver Cards: Includes adapter board and 2x10P ribbon cable
  • Video Processors: 2-in-1 processors from major brands
  • Cabinet Options: Sheet metal boxes, cylindrical, curved, and wave-shaped LED cabinets
