Specifications
Viewing Angle :
140° horizontal / 120° vertical
Brightness :
600-650 nits
Brand Name :
No Brand
Model Number :
P1.25TOP XR-C Indoor Flexible LED Display with 320×160mm
Certification :
CE, FCC, CCC, EMC, RoHs
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
10000above
Delivery Time :
10-15days
Packaging Details :
Carton packaging；Outer box dimensions（mm）： 570×370×385
Module Size :
320 mm x 160 mm
Pixel Pitch :
1.25 mm
Color :
Full color (RGB)
Cabinet Material :
Aluminum alloy
Price :
To be discussed
Refresh Rate :
≥3840 Hz
Operating Temperature :
-20°C to 40°C
Display Type :
Flexible LED
Control System :
Synchronous control with Nova or Linsn
Description
P1.25TOP XR-C Indoor Flexible LED Display
Module Size: 320*160mm
Flexible LED Display Technology

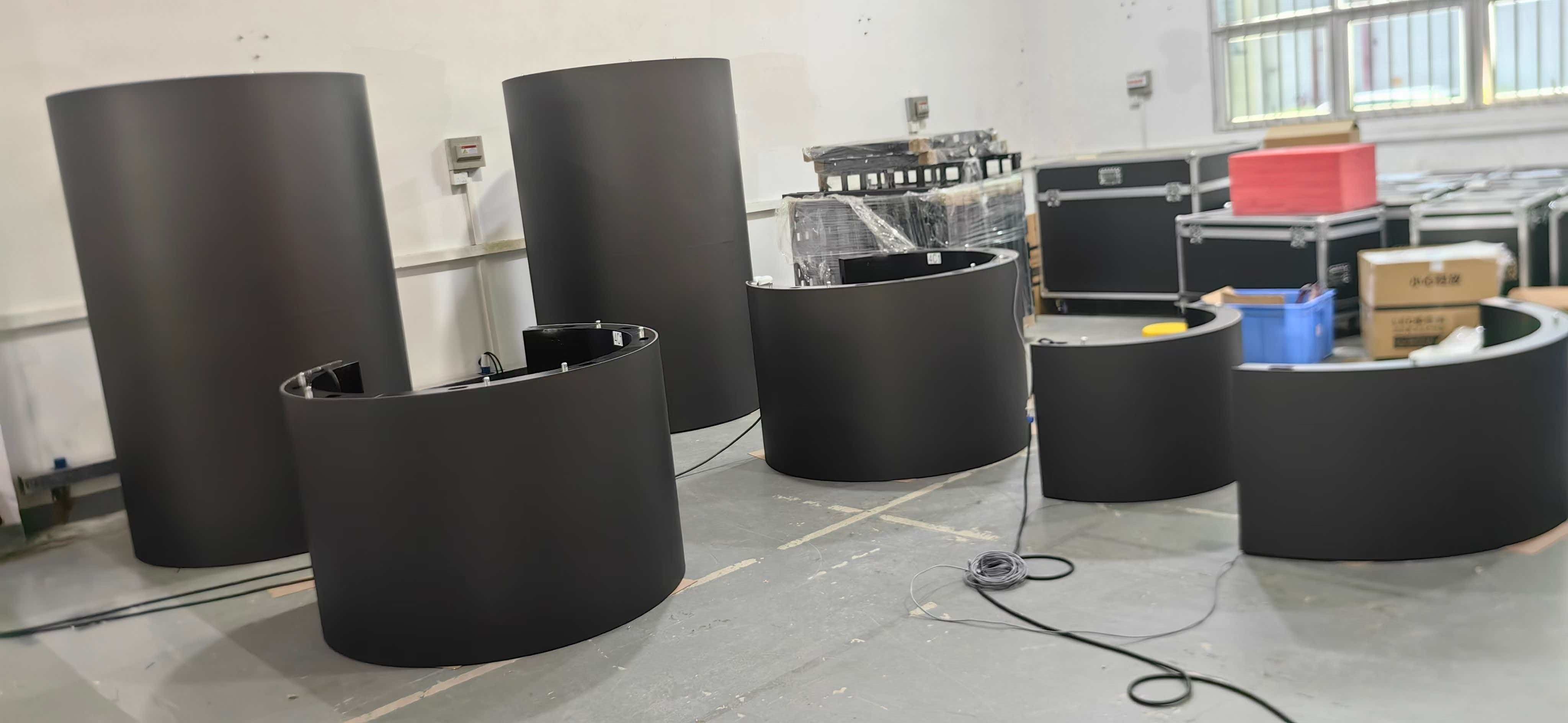

Flexible LED display modules are engineered based on flexible LED strip technology, creating bendable modules that can be assembled into curved screens, cylinders, and various curved surfaces. This represents a significant technological advancement in display technology, offering superior flexibility and wide-angle viewing compared to traditional rigid modules.
Key Technical Features
  • Standardized module size: 320 x 160 mm with low current consumption and heat generation
  • High contrast ratio and refresh rate for superior image quality

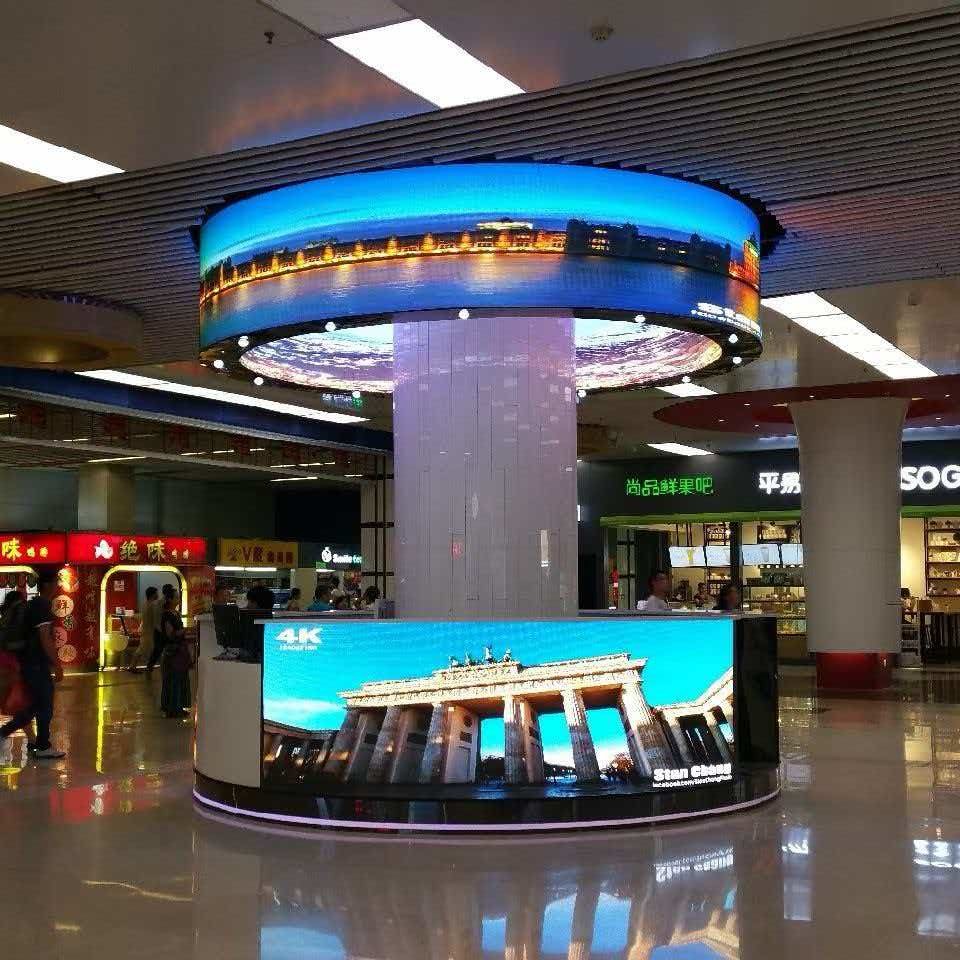

  • Ideal for artistic displays including cylindrical, spiral, wave, and ribbon screens
  • Applications: Planning halls, science museums, urban planning museums, art galleries, and creative centers
  • High-strength sandblasted sheet metal iron casing with segmented splicing for minimal gaps
  • Magnetic adsorption mounting system with adjustable height for optimal flatness
  • Front-maintenance design with tool-accessible front installation capabilities
  • Flexible PCB board with silicone bottom casing for enhanced flexibility and static protection
  • Ultra-thin 8.6mm profile with lightweight, space-saving design
  • Copper pillar soldering with adhesive backing for robust, reliable construction
  • 18 magnets per module (2000 GS strength) preventing delamination and warping
Product Specifications
Parameter Category Specification
Model P1.25 TOP
Pixel Configuration 1R1G1B (Full color)
LED Chip Packaging SMD1010 TOP
Pixel Density 640,000 dots/m²
Module Dimensions 320*160*8.6 mm (L*H*T)
Module Resolution 256*128
Scanning Method 64 scans
Refresh Rate 3840 Hz
Frame Rate 60 Hz
Grayscale Levels 13-14 bit
Assembly Diameter 1222 mm
Curvature ≥165°
Brightness 600-650 cd
Color Temperature 10,000-12,000 K (Adjustable)
Viewing Angle Horizontal: 140° / Vertical: 120°
Contrast Ratio ≥6000:1
Module Voltage DC 5V
Maximum Power Consumption 30 W per module
Operating Temperature -20°C to 40°C
Operating Humidity 20% to 75% RH
Typical Lifespan 100,000 hours
Installation Guidelines & Precautions
  • Operators must wear anti-static gloves during assembly
  • Avoid water contact with screen; use anti-static soft brush for cleaning
  • Maintain working environment humidity between 20% and 75%
  • Store modules in environments ≤30°C and ≤65% humidity
  • Handle wires gently to prevent damage to copper pillars and PCB
  • Use painted steel box structure instead of galvanized square tubes
  • Recommended powder coating process for curved enclosures
  • Module bending angle should be between 165° and 180°
  • Avoid violent or repeated bending of modules
Product malfunctions or damage caused by failure to follow these precautions are not covered under warranty.
System Components & Accessories
Component Specifications
Power Supply Input: AC 110/220V, 50/60Hz | Output: DC 5V, 200W
Control System Sending Card & Receiver Card (Linsn, Novastar, Colorlight, etc.)
Processor 2-in-1 Video Processor (Linsn, Novastar, Colorlight, etc.)
Cabinet Sheet metal box, iron box
Packaging Information
Module Size (mm) Outer Box Dimensions (mm)
320*160 570*370*385
