Specifications
Led Lamp :
SMD/COB/GOB/HOB
Average Power Consumption :
160W/㎡-265W/㎡
Life Span :
100000hours
Pitch :
P1.86 P2 P2.5 P1.53 P1.25
Brightness :
600-800
Led Size :
640xH1920mm
Processing :
14-16 bit
Use :
advertising publish, medical treatment
Price :
To be discussed
Cabinet Size :
640*960mm
Drive Mode :
1/43S
Brand Name :
No Brand
Model Number :
FOLDABLE POSTERR LED DISPLAY with P1.25/P1.53/P1.86/P2 /P2.5
Certification :
CE,FCC, CCC, EMC, CB, RoHs
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
10000above
Delivery Time :
10-15Days
Packaging Details :
Cardboard packaging
Refreshrate :
3840 Hz
Description
FOLDABLE POSTER LED DISPLAY with P1.25/P1.53/P1.86/P2/P2.5
Product Overview
Advanced foldable LED display featuring multiple pixel pitch options for superior visual performance and flexible installation.
Technical Specifications
  • Pixel Pitch: P1.25/P1.53/P1.86/P2/P2.5
  • Display Size: 640×1920mm
  • Cabinet Size: 640×480mm
  • Module Size: 320×160mm
  • Brightness: 600-800cd/㎡
  • High Contrast Ratio: 5000:1
  • Plug and Play Operation
Key Features & Benefits
Design Innovations
  • Magnetic folding border for quick assembly
  • Rapid installation locking mechanism
  • Magnetic module suction system
  • Extensive customizable size options
  • Foldable backwards design with magnetic edging
  • Front maintenance access with magnetic modules
  • Mobile base with high-end wheels for stability and safety
Display Performance
  • Seamless splicing screen display - supports individual and combination video walls
  • Up to 8 LED screens can be spliced together
  • 3840Hz refresh rate for smooth motion
  • Wide color gamut with uniform color distribution
  • 140° wide viewing angle without color loss
  • 5000:1 high contrast ratio for vivid, lifelike images
Control & Management
  • Smart cloud management via iPad, mobile phone, PC, or laptop
  • Real-time content updates and cross-platform publishing
  • Supports USB, WiFi, iOS, and Android operation
  • Basic Control Methods: PC control (RJ45 cable), PC control (WiFi), Mobile phone (WiFi), USB flash
  • Multiple Control via CMS Server: LAN, WiFi, and 4G
Module Process Options

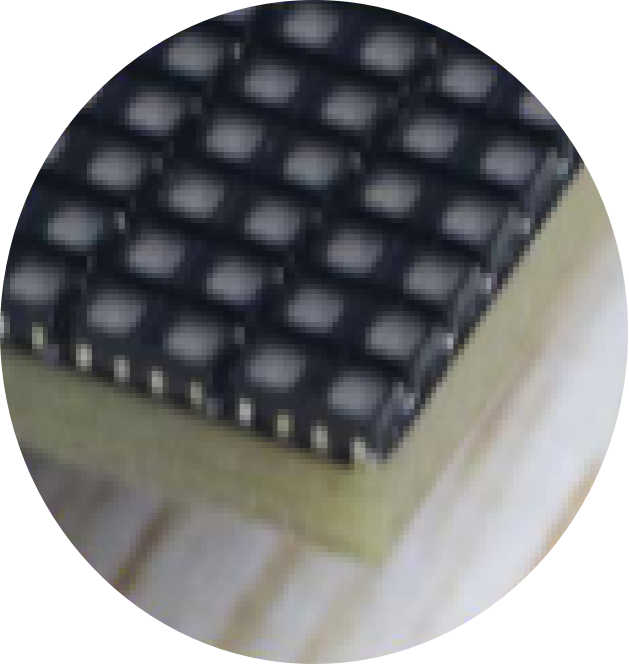

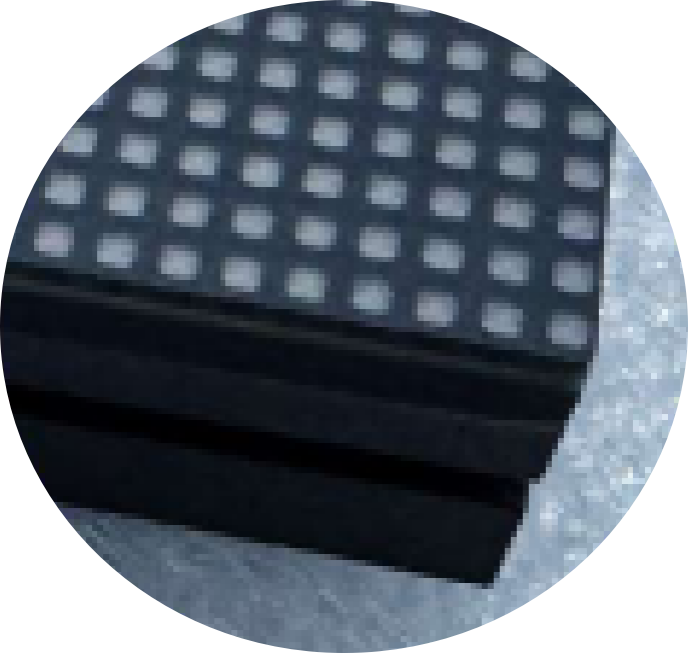

COB LED Module
Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design
  • High reliability with no gold wire bonding
  • Strong resistance to static electricity and physical impact
  • IP45 protection level: dust-proof, water-proof, impact-resistant
  • Ideal for humid and dusty environments
  • Integrated surface ensures wide viewing angles and excellent color consistency

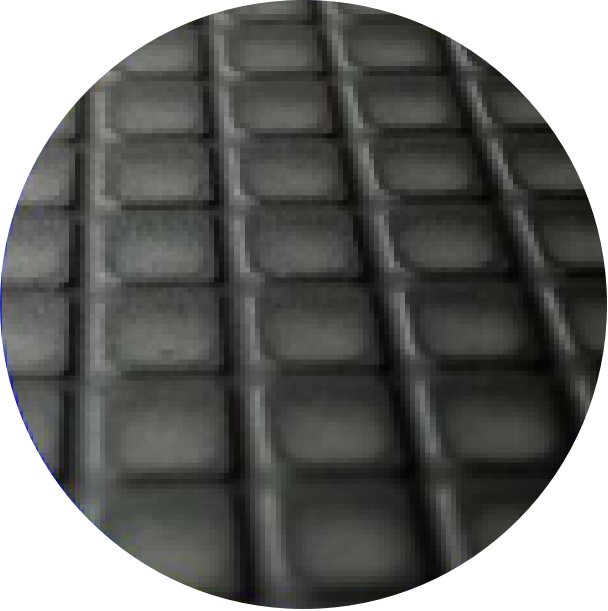

GOB LED Module
Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design
  • Excellent protection: dust-proof, waterproof, impact-resistant, moisture-proof
  • Suitable for harsh environments like outdoors and public spaces
  • Scratch and pressure resistance with protective glue layer
  • Easy maintenance: damaged LEDs can be replaced individually
HOB LED Module
Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design
  • Superior protection: waterproofing, dust-proofing, impact resistance, anti-static
  • High brightness and contrast with excellent optical clarity
  • True-to-life colors and deep blacks
  • Low failure ratio with well-protected LEDs
  • Easy to clean and maintain with smooth, seamless surface

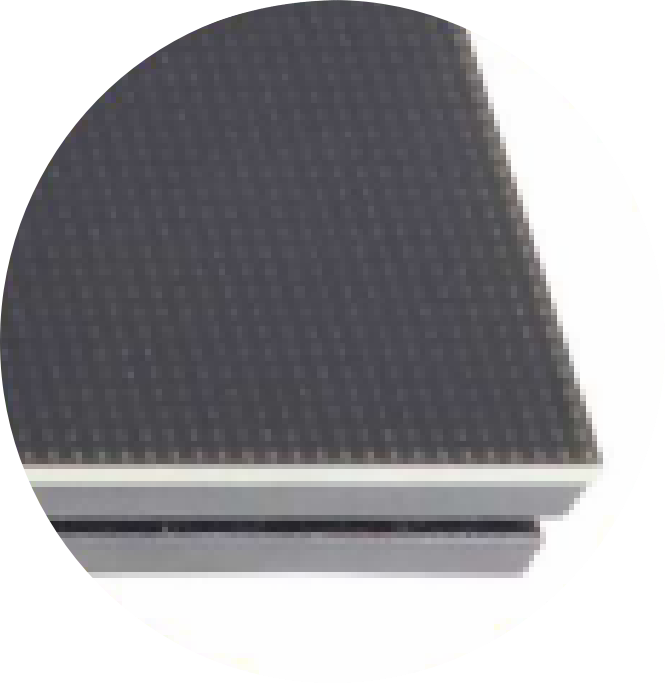

SMD LED Module

Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design

  • Mature and stable technology with high production efficiency
  • Cost-effective solution for large-scale manufacturing
  • Good color uniformity with integrated RGB chip design
  • Versatile application for indoor/outdoor fixed installations, rental, and creative displays
Detailed Product Specifications
Product Item P1.25 P1.53 P1.86 P2 P2.5
Pixel pitch (mm) 1.25 1.53 1.86 2 2.5
Module resolution 256×125 208×104 172×86 160×80 128×64
Module dimension 320×160mm
LED package COB/GOB/HOB/SMD
Display dimension 640×1920mm
Module arrangement 2×12
Cabinet flatness ≤0.1mm
Cabinet dimension 640×480mm
Weight ≤60kg
Serviceability Front-access
Physical density (dot/㎡) 640000 422500 289050 250000 160000
Brightness 600-800cd/㎡ (adjustable)
Viewing angle 140°/140°
Screen flatness ≥98%
Chromaticity uniformity ±0.003
Contrast ratio 5000:1
IP rate IP45
Color depth 14-16bits
Driving mode 1/43s
Refresh rate ≥3840Hz
Color temperature 2000-9500K (adjustable)
Input voltage AC:110V-240V; 50-60Hz
Max power consumption ≤600W/㎡
Average power consumption 160W/㎡-265W/㎡
MTBF ≥10000 hours
Operating environment temperature -100-＋600
Operating environment humidity 30%-75%RH (no condensation)
Real-World Applications
Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance DesignFoldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design

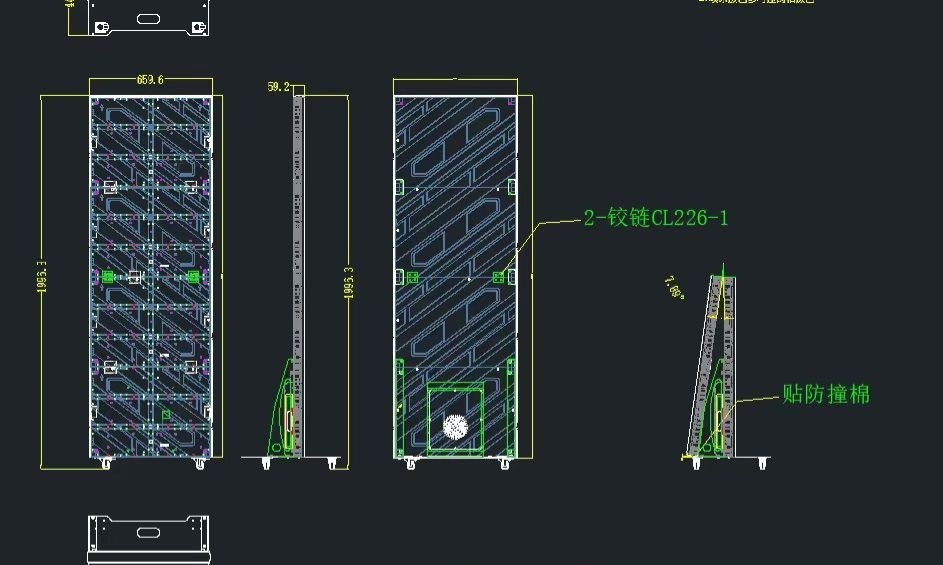

Engineering Drawings
Foldable LED Display poster with P1.25/P1.53/P1.86/P2 /P2.5 Pixel Pitch 3840Hz Refresh Rate and Front Maintenance Design
