Name:Outdoor full color LED screen 960*960mm Standard LED Display Cabinet P4 with 480*320MM Aluminum module

IP rating:IP 65

Pixel Pitch:P4mm,P4.4mm,P5mm,P5.71mm,P6.67mm,P8mm,P10mm

Cabinet Resolution:240*240dots

Applications:Sports Event , Window Screen , Digital Signage System , Bus Station , Arena Display .Business Advertising Signs , Airport ,billboard , road sign , stadium scoreboards, building facade ,etc.

Warranty period : 2-3 years

Key Features:

1.Die-casting Aluminum module for fast heat dissipation .

2.IP65 waterproof and 5VB fireproof

3.Common cathode technology for energy saving.

4.High brightness option for 10,000nits

5.Totally front and rear service

6.Stable and reliable performance

7.Front and Rear Maintenance: Your enclosure supports disassembly and maintenance from both the front (for wall mounting) and the back (when a maintenance access is available), providing significant flexibility in installation.

8.Heat Dissipation: Utilizing an aluminum base shell, it functions as a highly efficient heat sink, ensuring stable operation of the screen under high outdoor temperatures and extending the lifespan of the LEDs.

9.Standardized Integration: The power supply, receiver card, and adapter board are highly integrated into a single standard enclosure, pre-tested and debugged before leaving the factory. Customers only need to assemble, power on, and connect the signal to use it immediately, greatly reducing the technical barriers to installation and debugging.

10.High-Definition Display: Multiple pixel pitches from P4 to P10 mean your product line can cover a wide range of needs, from close-up high-definition (P4 viewing from 4 meters away) to long-distance wide-viewing angles (P10 viewing from 10 meters away).

Quality assurance:

1.Every production process has a special person to test to ensure quality

2.Professional engineers test the quality

3.All products have passed CE, FCC, RoHS and other certifications.

4.Automatic SMT printing machine.Features: Automatic detection of printing

5.Samsung SMT machine Features: High efficiency and precision

6.Incoming material testing experimental equipment:

1.) High and low temperature hot and cold shock equipment: high and low temperature .hot and cold shock test equipment, for the kit, lamp beads, all after 72 hours, low temperature 60 degrees, high temperature 100 degrees detection test; (simulation of the use of the environment, observe the lamp beads, frames, whether they can withstand low temperature and high temperature).

2.) Salt spray test equipment: test screws, all after 100 hours of salt spray test, in 100 hours without rust, without oxidation.

3.) Drying&heating machine: Before LED beads are put into the production line, they all go through a 6-hour high-temperature oven to avoid ummy soldering and oxidation of the beads due to humidity

4.)Waterproof test: in the fourth floor assembly workshop, the cabinets all through the waterproof / shockproof test.

5.)Vibration tester: all finished modules are subjected to random vibration testing (simulated transportation, whether there is false welding).

6.)Ultrasonic layered scanning: layered scanning of lamp beads, IC chips, after passing the furnace, whether there are faults and whether they are qualified.

7.)PCB slicing test with high magnification microscope: PCB has done hole slicing test, hole copper and surface copper in line with the acceptance of qualified.

8.)Resistance tester: test the copper content of the core of the power cord.

9.)Load tester: test the load of the power cord with load.

FAQ

1.How do I place an order?

Please describe your requirements in as much detail and clarity as possible. We will provide you with a solution and quote as soon as possible.

For designing or further discussion,it is better to contact us with Skype/Whatsapp/email/phone, in case of any delays

2.What kind of display we provide?

We offer indoor/outdoor/rental/stage/irregular/spherical/transparent LED screens for your selection.

3.How about the warranty?

We offer a two-year warranty and lifetime maintenance.

4.What are your shipping terms?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the method that is most convenient and cost-effective for you.

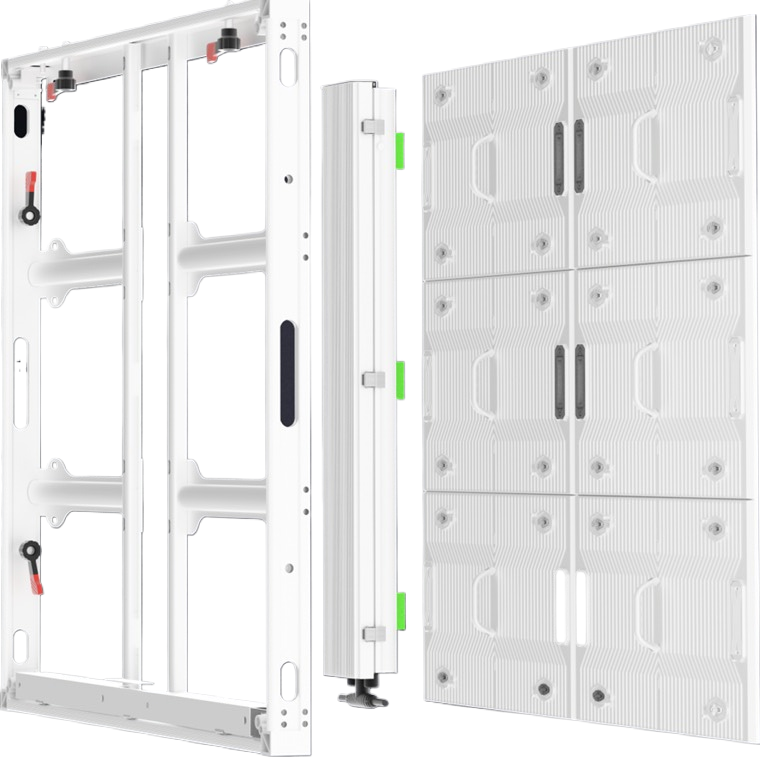

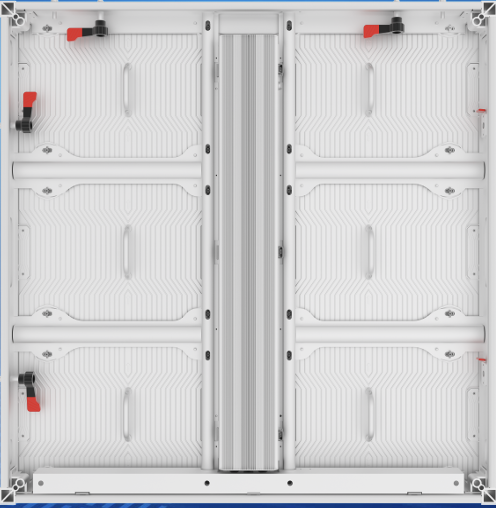

LED display Cabinet appearance

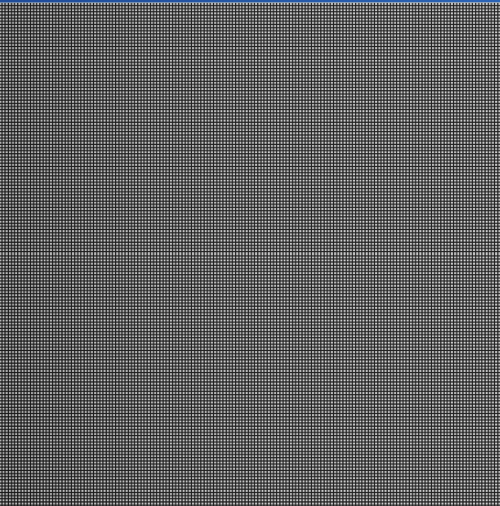

Aluminum cabinet Front

Side of aluminum cabinet

Excellent heat dissipation

Aluminum cabinet with aluminum frame module, high heat dissipation efficiency.
The back is equipped with heat dissipation silicone sheets, which use contact heat
conduction to accelerate heat dissipation

Technical parameters
