Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
Specifications
Brand Name :
No Brand
Model Number :
Outdoor LED stadium display screen with P3.076/P4/P5/P6.67/P8/P10
Certification :
CE, CCC, FCC, EMC, CB, RoHs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10000above
Delivery Time :
10-15days
Packaging Details :
Customizable cardboard box packaging; Customizable flight case packaging
Display Function :
Video
Price :
To be discussed
Pixel Configuration :
SMD2727/3535
Cabinet Size :
Customizable
Display Technology :
LED
Pixel Pitch :
P3.076，P4，P5，P6.67，P8，P10
Installation :
Front or Rear
Ip Rating :
IP65
Installation Method :
Wall-mounted, hanging, or fixed installation
Refresh Rate :
≥1920-3840Hz
Description
Outdoor LED Stadium Display Screen
Product Features
Robust Construction: Die-casting magnesium alloy cabinet measuring 960×960mm, featuring slim and portable design with thickness of 115mm and weight of 28kg.
Easy Installation: Quick installation and maintenance with fast lock and handle/pin design for efficient setup and service.
Weather Resistant: Fully water-proof IP65 grate designed to withstand severe weather conditions. Features rubber cover cabinet with water-proof strip and excellent ventilation with 4 cooling fans, providing dust-proof, water-proof, and corrosion-resistant protection.
Flexible Access: Both front and rear access available. Compatible with 320×320mm and 320×160mm modules for versatile configuration options.
Technical Specifications
Product Item P3.076 P4 P5 P6.67 P8 P10
Pixel Pitch 3.076 4 5 6.67 8 10
Module Size 320×160 320×160 320×160 320×160; 320×320 320×160; 320×320 320×160; 320×320
Module Resolution 104×52 80×40 64×32 48×24; 48×48 40×20; 40×40 32×16; 32×32
Scan Mode 1/13 1/10 1/8 1/6 1/5 1/2
LED Bead SMD1415 SMD1921 SMD2727 SMD3535 SMD3535 SMD3535
Brightness 3500-4000 5500 5500-6000 6500-7000 6500-7000 6500-7000
Cabinet Resolution 312×312 240×240 192×192 144×144 120×120 96×96
Cabinet Weight 28 28 28 28/29.5 28/29.5 28/29.5
Maintenance Way Rear Access Rear Access Rear Access Rear/Front Access Rear/Front Access Rear/Front Access
Cabinet Size: 960×960×115mm
Cabinet Material: Die-casting magnesium alloy
Refresh Rate: 1920 & 3840
Viewing Angle: 140/140
Max Power Consumption: 480W / 680W / 800W
Average Power Consumption: 240W / 340W / 400W
Gray Scale: 14-bit
Contrast Ratio: 3000:1
IP Grade (Front/Rear): 65

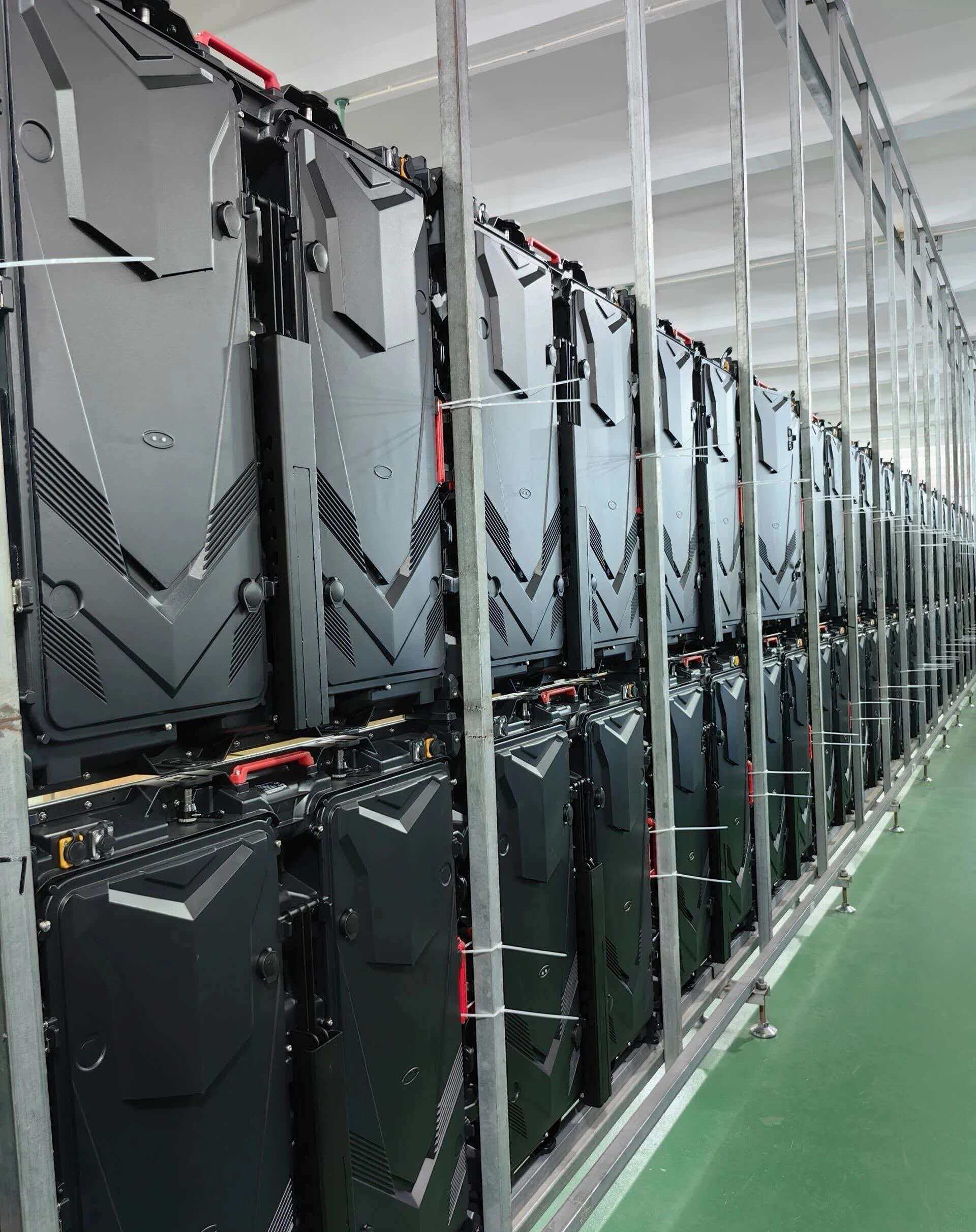

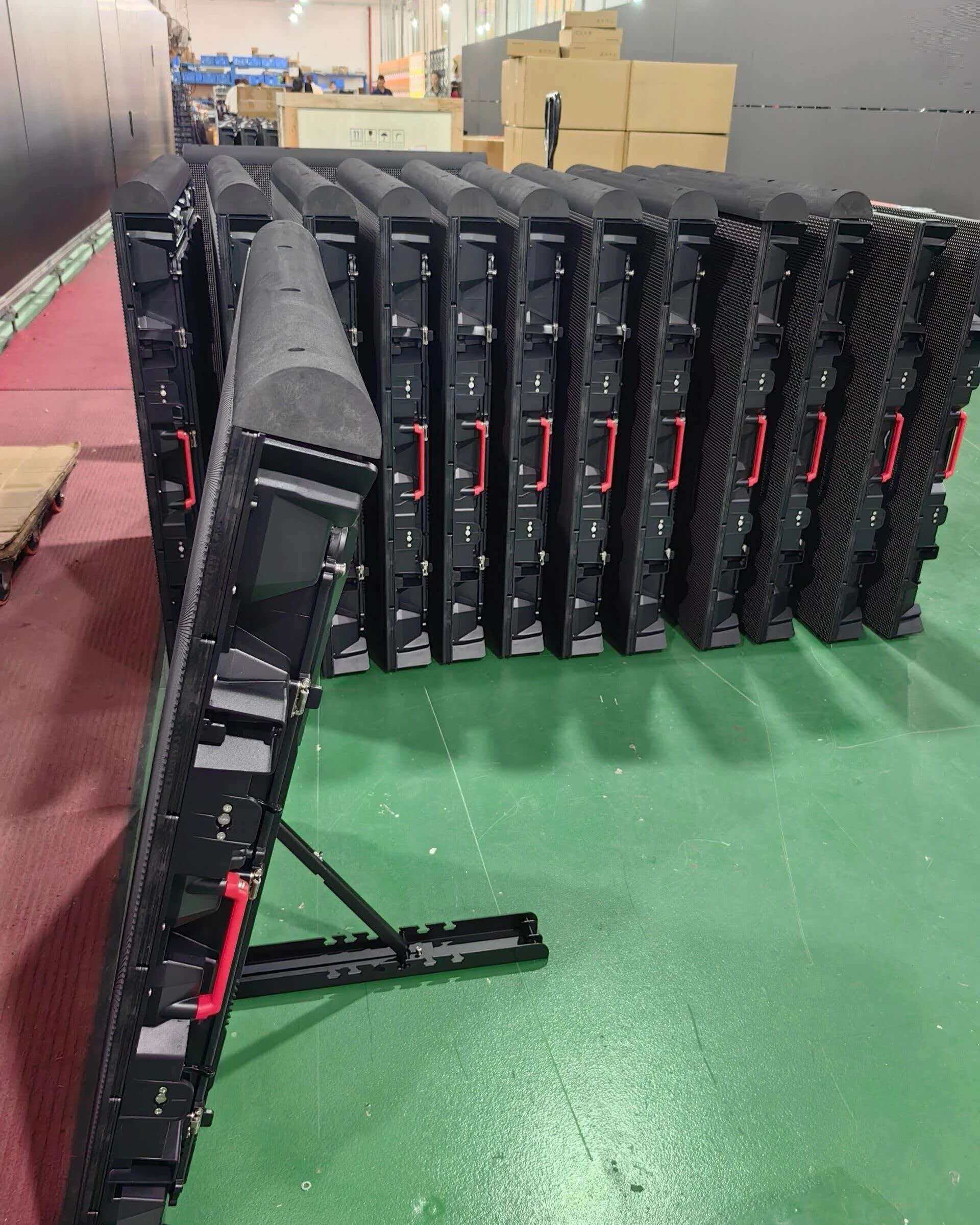

Real-World Image Display
Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
Real Case Studies
Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz Stadium Outdoor LED Display Screen IP65 Waterproof High Refresh Rate 3840Hz
