Specifications
Display Type :
LED
Brand Name :
No Brand
Model Number :
Outdoor stadium perimeter LED display
Certification :
CE, CCC, FCC, EMC, CB, RoHs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10000above
Delivery Time :
10-15days
Packaging Details :
Customizable cardboard box packaging; Customizable flight case packaging
Price :
To be discussed
Color Depth :
14-16bit
Viewing Angle :
140° Horizontal / 140° Vertical
Cabinet Material :
Aluminum Alloy
Mechanical Feature :
Mechanical
Pixel Pitch :
Customizable (e.g., 1.2mm, 1.5mm, 1.9mm)
Resolution :
High Resolution
Intelligence Level :
Intelligent
Control System :
Asynchronous and Synchronous Control
Refresh Rate :
≥1920-3840Hz
Description
Outdoor Stadium Perimeter LED Display
High-performance LED display solution designed for stadium perimeter applications with superior durability and visual performance.
Key Features
  • Die-casting magnesium alloy cabinet - ultra slim at 115mm thickness and lightweight at 28.5kg
  • High refresh rate up to 3840Hz - eliminates flicker during live streaming and camera shooting
  • Adjustable back bracket (60°-90°) with 140° viewing angles in both vertical and horizontal directions
  • Safety design with soft mask protection for LED lamps and foam top cushion to prevent player injuries
  • Fully waterproof IP65 rating with rubber cover door lock and waterproof strips
Technical Specifications
Product Item P5 P6.67 P8 P10
Pixel Pitch 5 6.67 8 10
Module Size 320*160
Module Resolution 64*32 48*24 40*20 32*16
Scan Mode 1/8 1/6 1/5 1/2
LED Bead SMD2727 SMD3535 SMD3535 SMD3535
Brightness 5500-6000 6500-7000 6500-7000 6500-7000
Cabinet Size 960*960*115mm
Cabinet Resolution 192*192 144*144 120*120 96*96
Cabinet Material Die-casting Magnesium Alloy
Cabinet Weight (kg) 28.5
Maintenance Rear Access
Refresh Rate 3840
Viewing Angle 140°/140°
Max Power Consumption (W) 680 380 680 800
Average Power Consumption (W) 340 340 340 400
Gray Scale 14-16 bits
Contrast Ratio 3000:1
IP Grade (Front/Rear) IP65

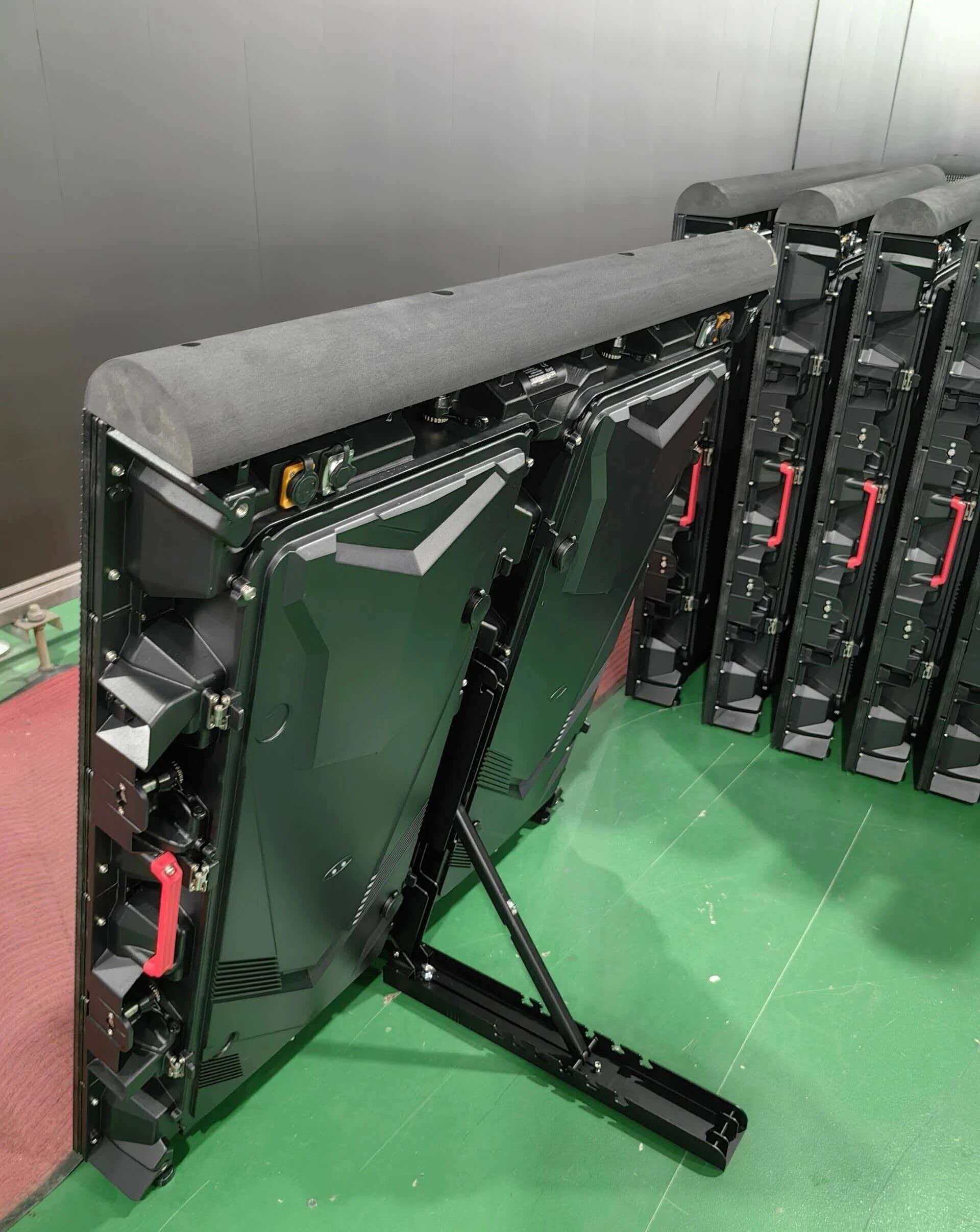

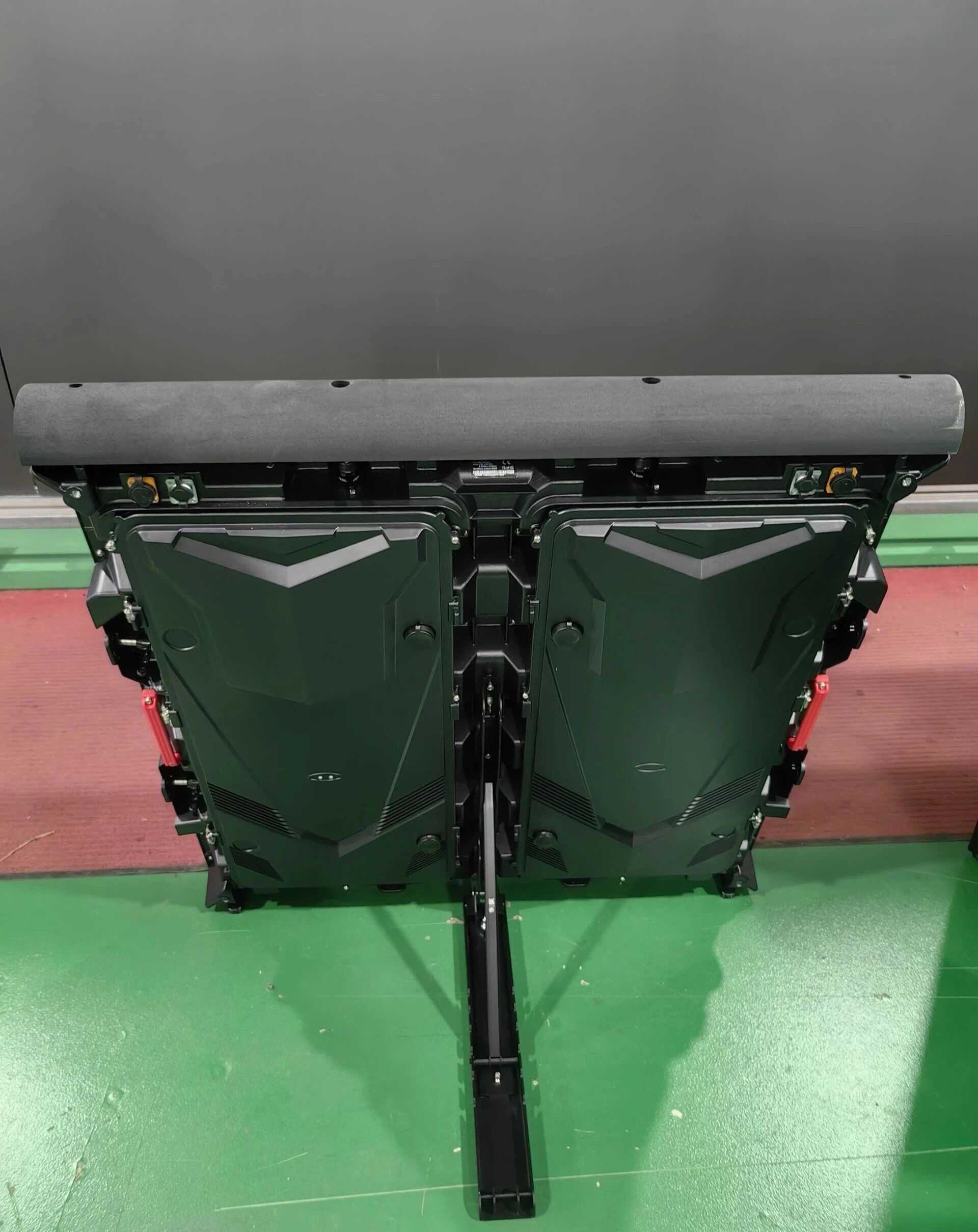

Real-World Image Display
IP65 Waterproof Fixed Installation LED Display High Refresh Rate 3840Hz For Stadium Perimeter IP65 Waterproof Fixed Installation LED Display High Refresh Rate 3840Hz For Stadium Perimeter IP65 Waterproof Fixed Installation LED Display High Refresh Rate 3840Hz For Stadium Perimeter

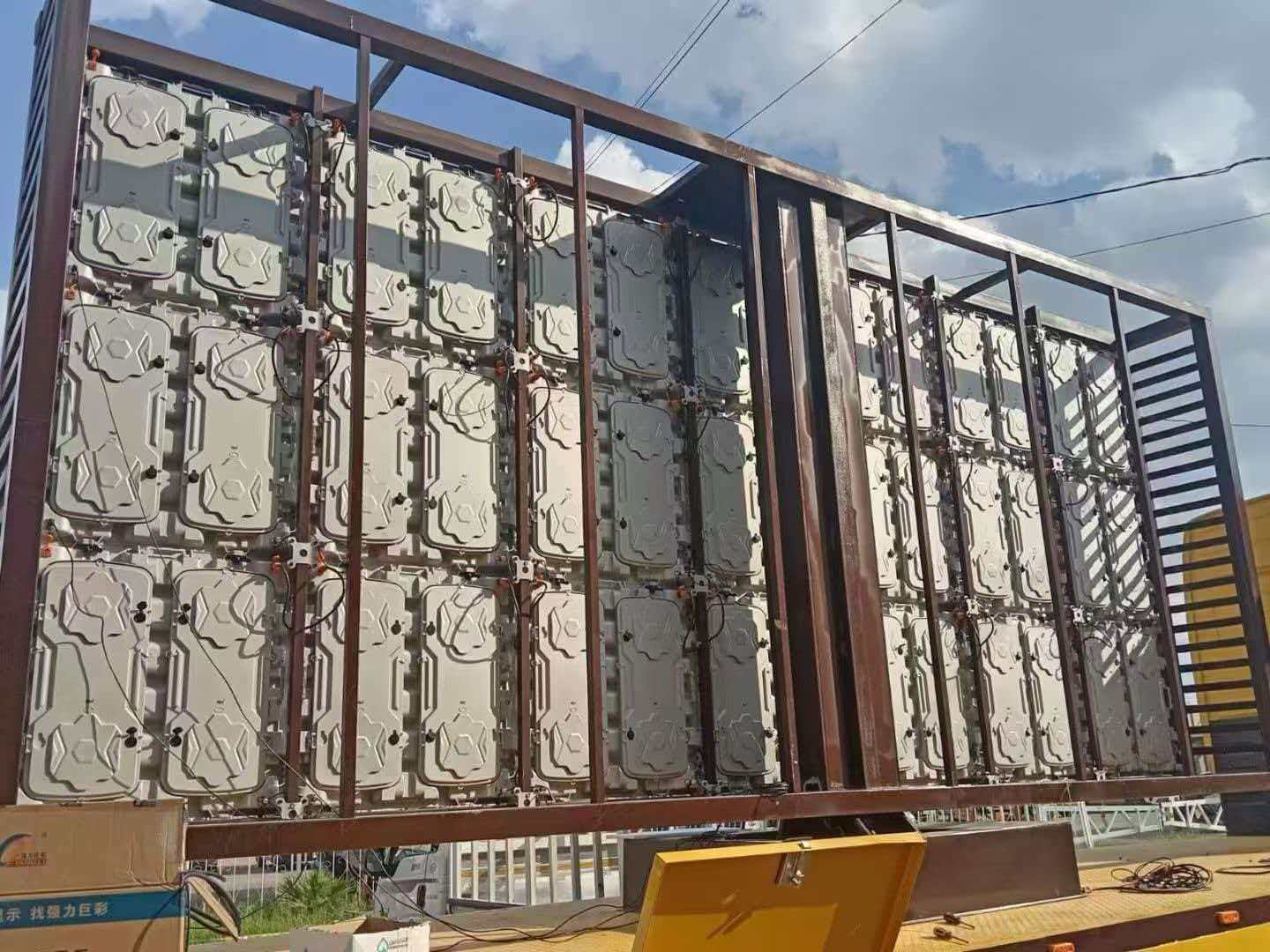

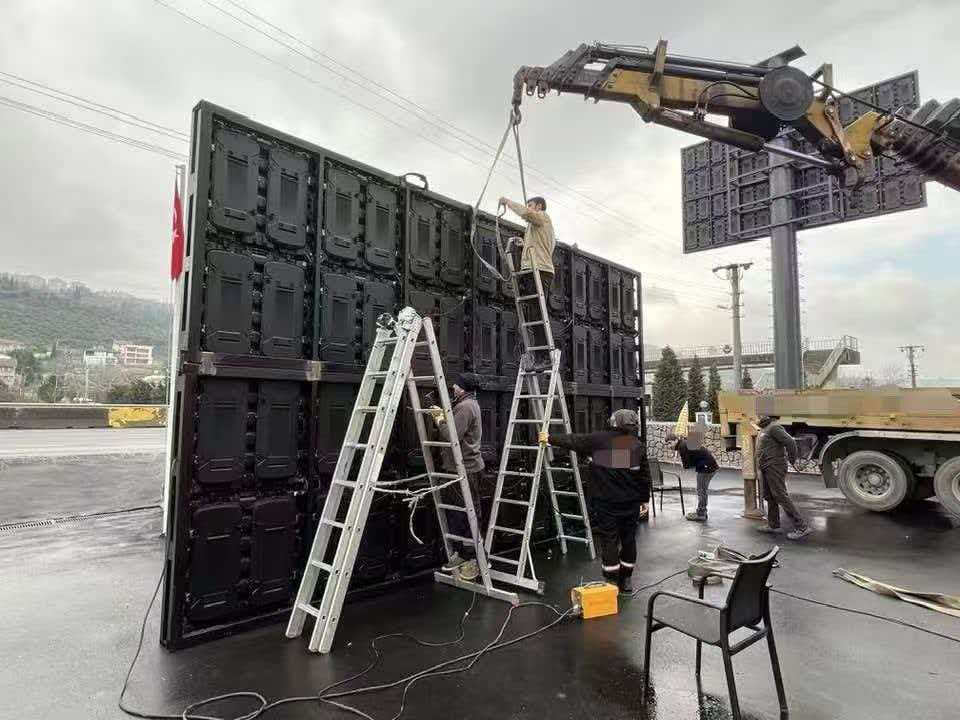

Real Case Studies
IP65 Waterproof Fixed Installation LED Display High Refresh Rate 3840Hz For Stadium Perimeter IP65 Waterproof Fixed Installation LED Display High Refresh Rate 3840Hz For Stadium Perimeter IP65 Waterproof Fixed Installation LED Display High Refresh Rate 3840Hz For Stadium Perimeter IP65 Waterproof Fixed Installation LED Display High Refresh Rate 3840Hz For Stadium Perimeter IP65 Waterproof Fixed Installation LED Display High Refresh Rate 3840Hz For Stadium Perimeter
