P3.91 Pixel Pitch LED Screen 500x1000mm Indoor Full Color LED Display 1920 - 3840Hz Refresh Rate
P3.91 Pixel Pitch LED Screen 500x1000mm Indoor Full Color LED Display 1920 - 3840Hz Refresh Rate
P3.91 Pixel Pitch LED Screen 500x1000mm Indoor Full Color LED Display 1920 - 3840Hz Refresh Rate
P3.91 Pixel Pitch LED Screen 500x1000mm Indoor Full Color LED Display 1920 - 3840Hz Refresh Rate
P3.91 Pixel Pitch LED Screen 500x1000mm Indoor Full Color LED Display 1920 - 3840Hz Refresh Rate
P3.91 Pixel Pitch LED Screen 500x1000mm Indoor Full Color LED Display 1920 - 3840Hz Refresh Rate
Specifications
Application :
Indoor
Pixel Pitch :
3.91 mm
Resolution :
Variable based on configuration
Scan Mode :
1/16 scan
Operating Temperature :
-20°C to 60°C
Color :
Full Color
Module Size :
500×1000 mm
Brand Name :
No Brand
Model Number :
Indoor P3.91 500×1000mm LED Display full color screen
Certification :
CE, CCC, FCC, CB, EMC, RoHs, UL
Place of Origin :
China
MOQ :
1pcs
Price :
To be discussed
Payment Terms :
T/T
Supply Ability :
10000above
Delivery Time :
10-15days
Packaging Details :
Customizable cardboard box packaging; customizable airline case packaging.
Display Type :
LED
Refresh Rate :
≥1920-3840 Hz
Viewing Angle :
Horizontal 160°, Vertical 160°
Description
Indoor P3.91 500*1000mm LED Display Full Color Screen
High-resolution indoor LED display with exceptional color performance and versatile installation options for professional environments.
Key Features
  • Universal HUB design compatible with all pixel pitches
  • Hard connection design for secure module integration
  • Front and rear installation and maintenance access
  • Optional high brightness up to 3500 nits
  • Fast lock system for quick assembly and alignment
  • Flexible cabinet sizing for diverse applications
  • 45-degree side cut cabinets for 90-degree corner installations
  • Multiple mounting options: rigging, stacking, wall-mounted
  • CNC high-precision manufacturing with wide color gamut and HDR support
  • High refresh rate with super silent fan-less design
Applications
  • Control centers and command rooms
  • Conference rooms and video conferencing
  • Shopping malls and retail showrooms
  • Airports, stations, and transportation hubs
  • Studio centers and broadcast facilities
  • Financial and securities centers
  • Exercise and traffic command centers
  • Movie theaters and entertainment venues
  • Power dispatching and data visualization
Product Specifications
Item P3.91
Pixel Pitch 3.91mm
Module Size 250*250mm
Module Resolution 64*64
Physical Density 65536 dots/㎡
LED Type SMD2020
Cabinet Size 500*500(1000)*84mm
Cabinet Resolution 128*128/128*256
Cabinet Weight 6.8kg (500*500)
Cabinet Material Die casting aluminum
Maintenance Way Front/Rear
Best Viewing Distance ≥3.9m
Best Viewing Angle H:160°; V:160°
Driving Method (Constant Current) 1/16 scan
Video Frame Rate ≥60Hz
Refresh Rate 1920-3840Hz
Brightness ≥800nits
Grey Level 12-16bit
Ingress Protection IP43
Average Power Consumption 240W
Life Time ＞100,000 Hours
The Rate ＜0.0002

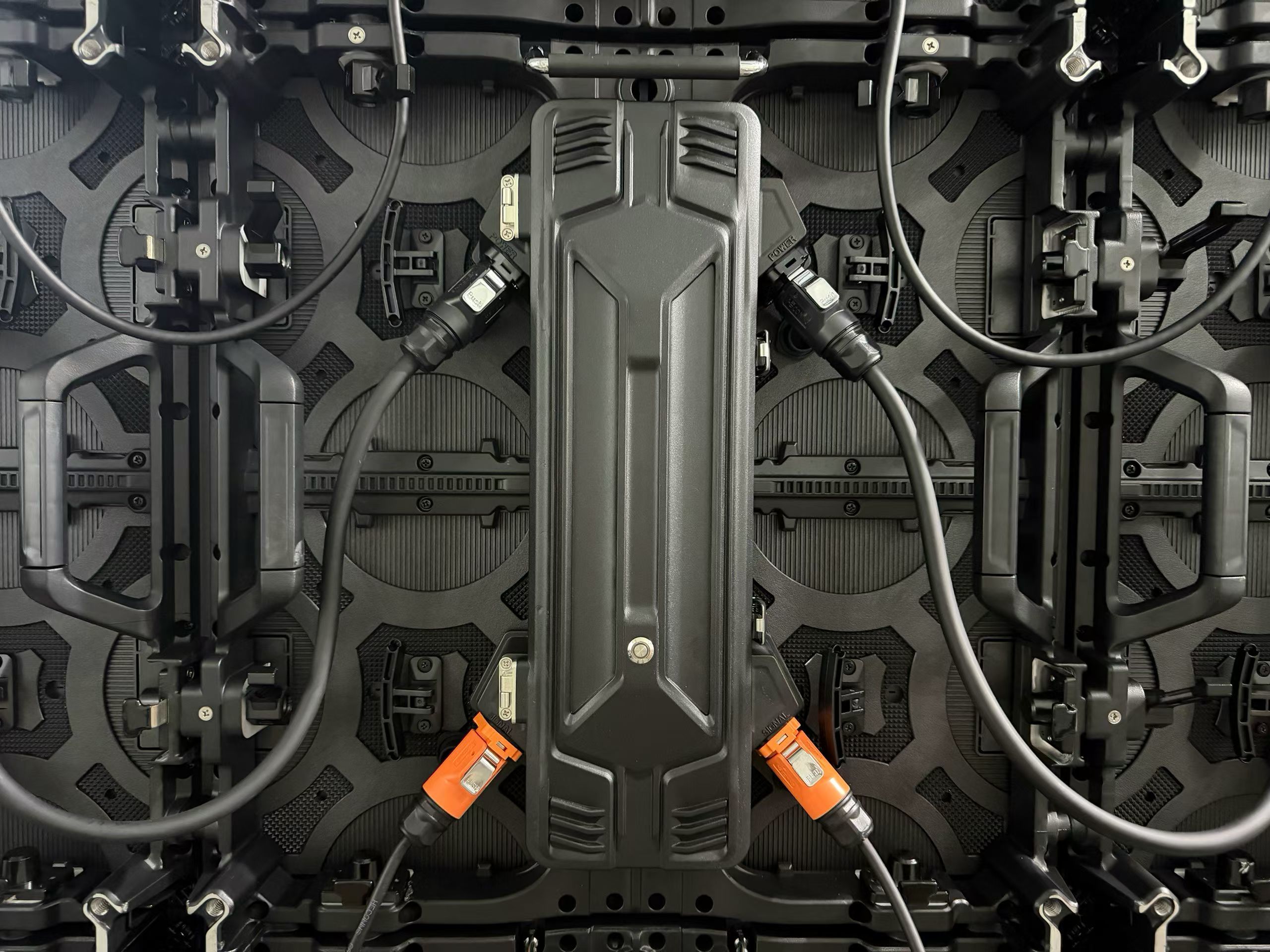

LED Cabinet Assembly Structure
P3.91 Pixel Pitch LED Screen 500x1000mm Indoor Full Color LED Display 1920 - 3840Hz Refresh Rate

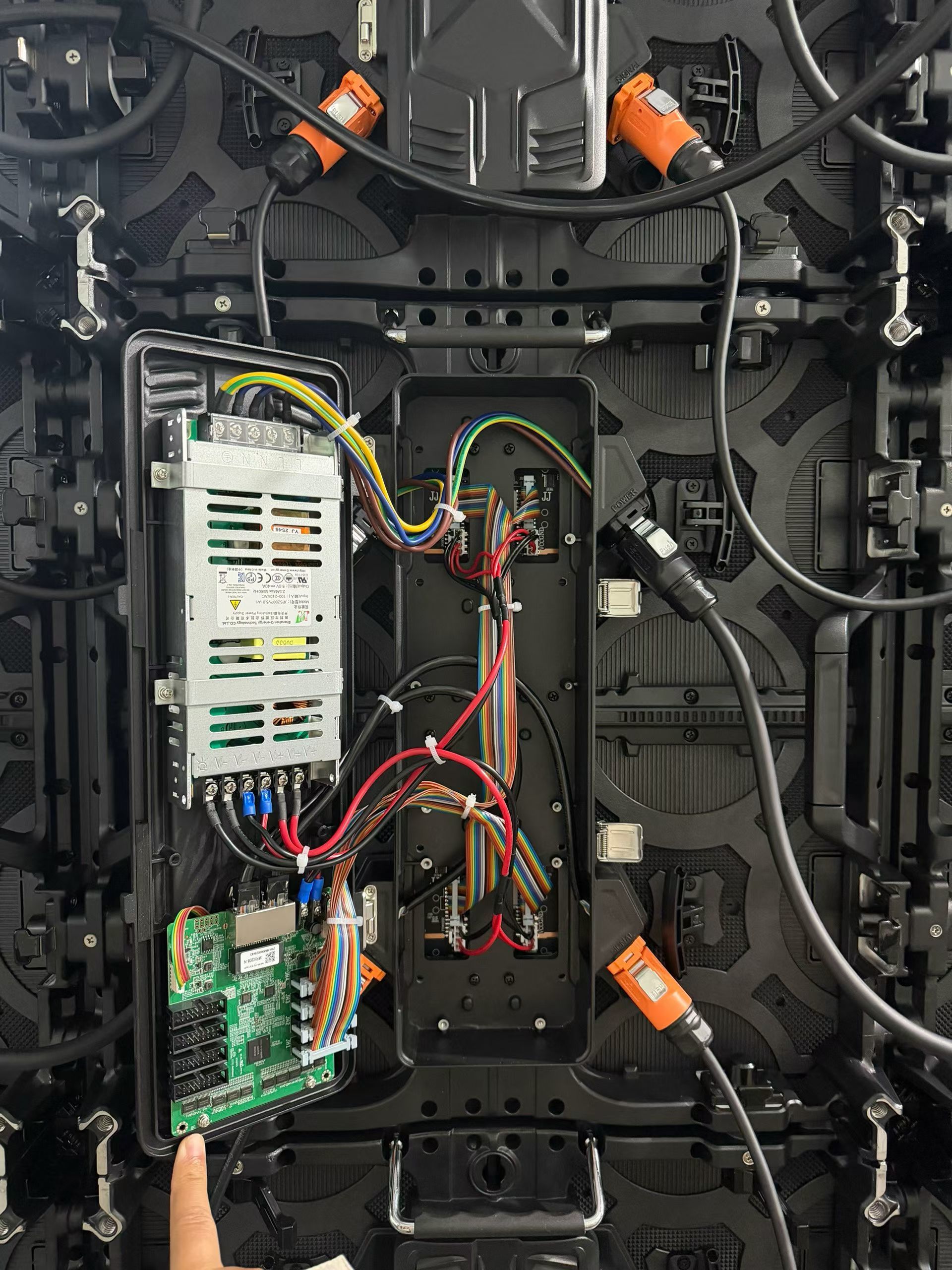

Internal Structure of LED Cabinet
P3.91 Pixel Pitch LED Screen 500x1000mm Indoor Full Color LED Display 1920 - 3840Hz Refresh Rate
