Impact-resistant, shockproof, moisture-proof, waterproof, dustproof COB shelf display

product introduction:

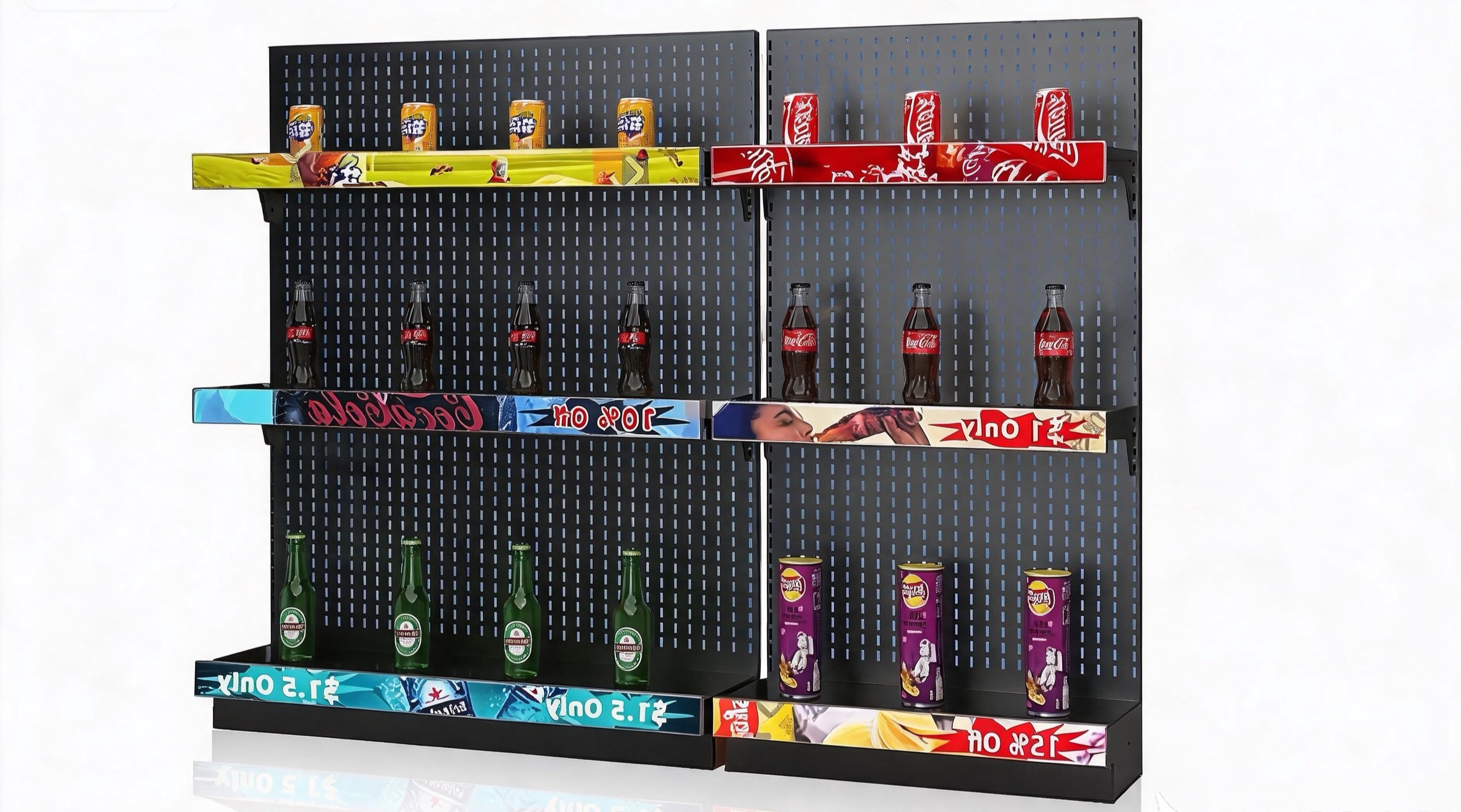

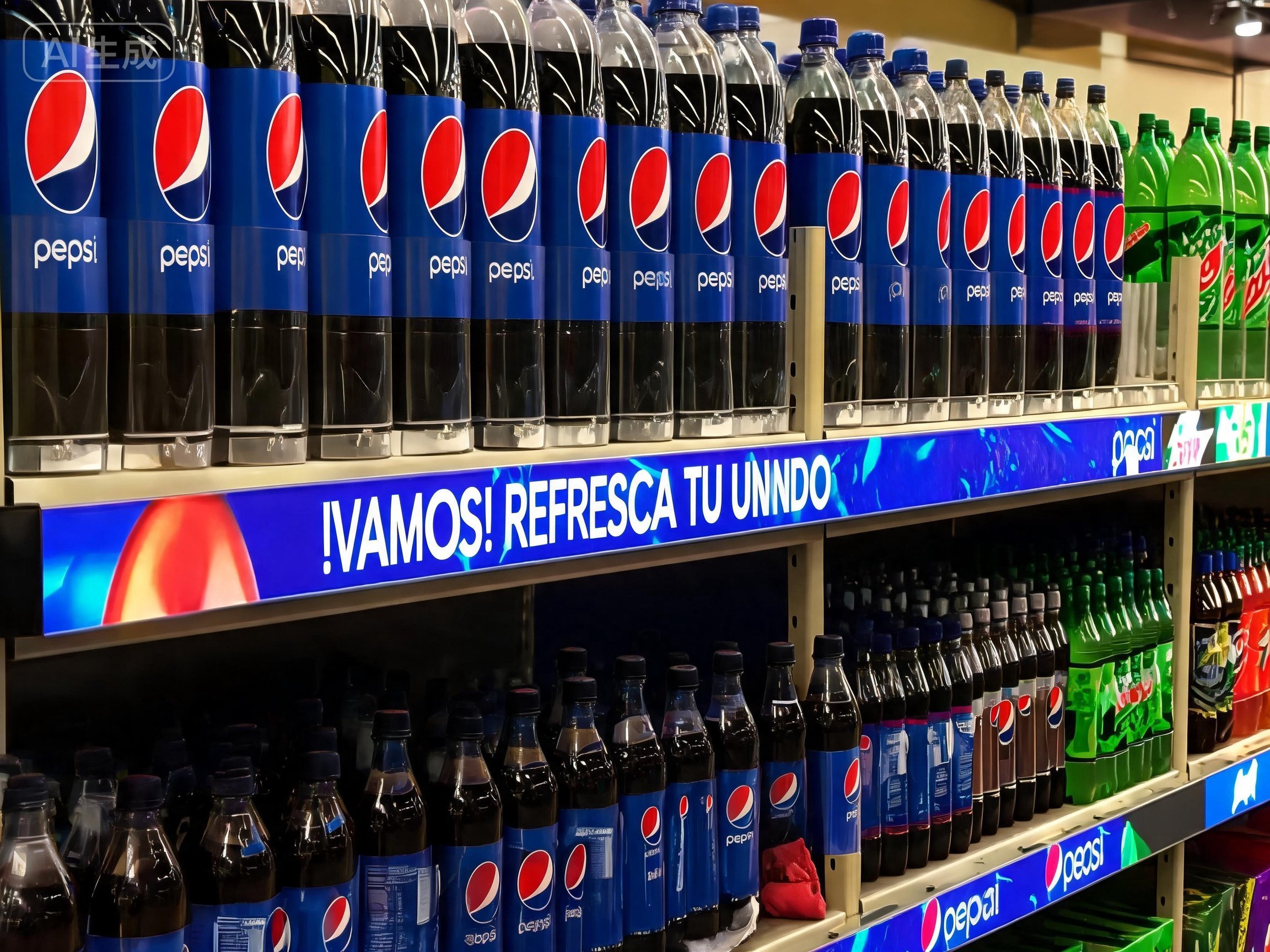

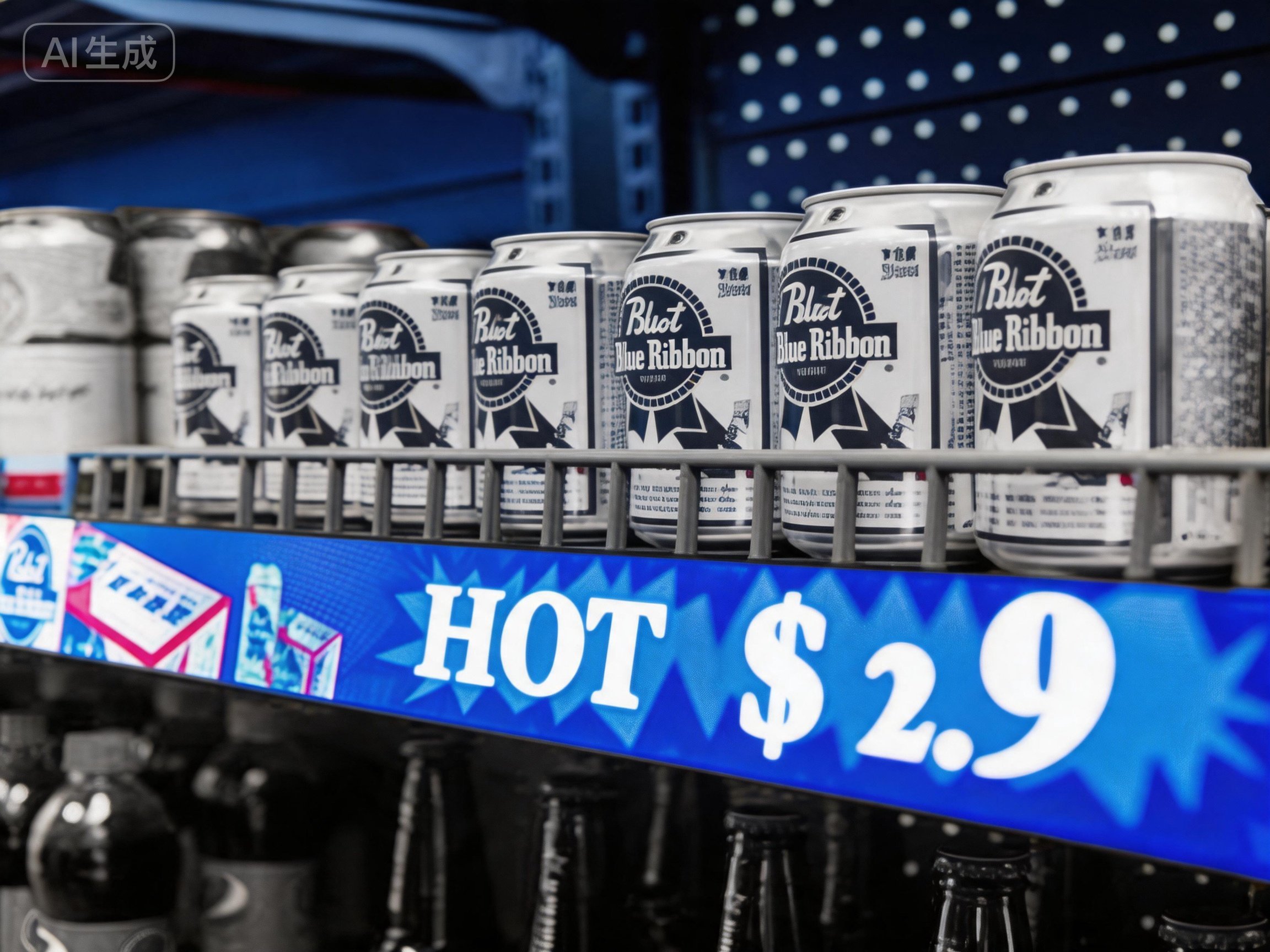

Shelf displays are embedded in retail shelves to showcase product information, promotions, and advertisements. They offer advantages such as high definition, diverse display options, energy efficiency, long lifespan, and ease of operation. Adaptable to various installation and control systems, they enable intelligent display and promotion, and support real-time monitoring and remote control for efficient management. Enhancing display and sales while simplifying management, they are an ideal choice for modern retail.

Key features:

1. Ultra high reliability and stability

   Longer life span and lower pixel failure, the truly zero-maintenance LED greatly reduce the care and use cost.

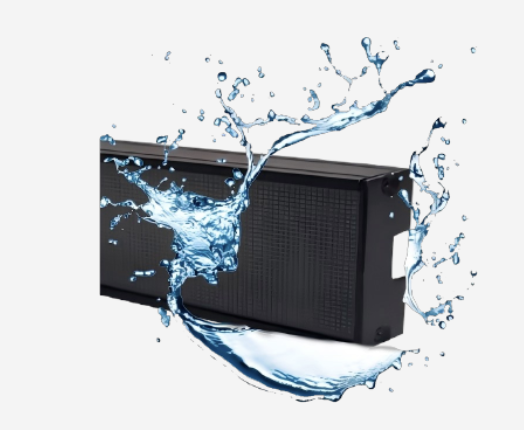

2. Excellent Protective Performance

   Anti-collision, anti-vibration, moisture-proof, waterproof, dust-proof, anti-static, and it's safe to use in any environment.

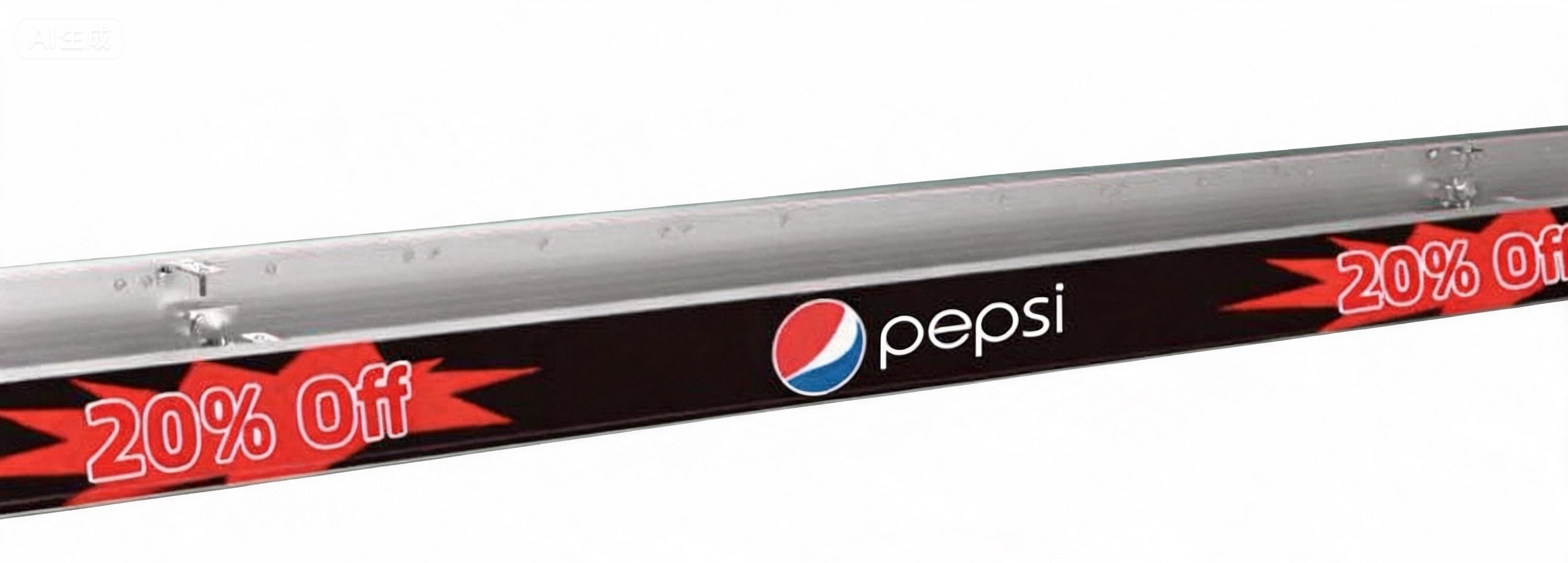

3. Three Sizes / Flexible Splicing

   Flexible splicing, suitable for all kinds of shelves.Light and slim, easy to install.Various sizes can be adjusted according to customer needs.



4. Excellent Quality and Simple Control

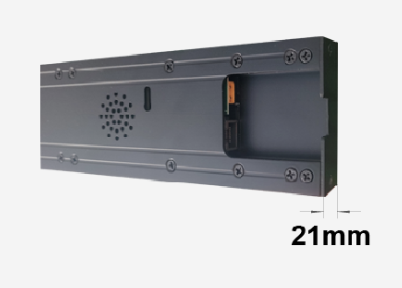

   Ultra thin



   • Bright color, lifelike.

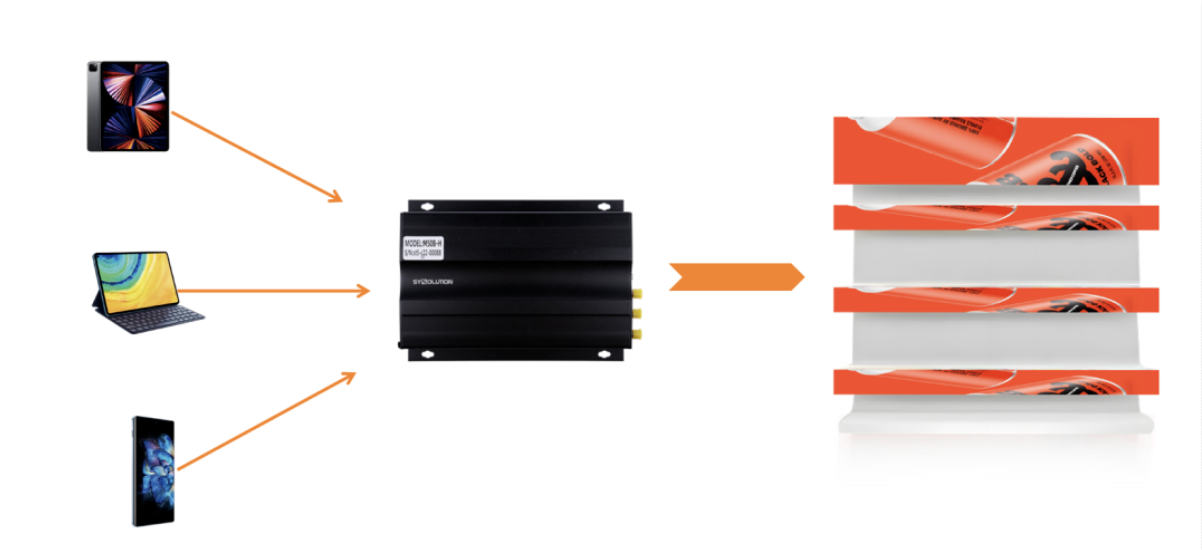

   • Synchronous/asynchronous control supports multiple input modes.

5. Excellent Protective Performance

   • Anti-collision, anti-vibration, moisture-proof, waterproof, dust-proof, anti-static, and it's safe to use in any environment.
   •

6. COB Shelf Display Specifications

   Parameter	Details
   Pixel Pitch (mm)	P1.875 / P1.5625 / P1.25 / P0.9375 (common cathode energy saving)
   Pixel Configuration	1R1G1B
   LED Drive Power	30S / 36S / 45S / 60S
   Panel Resolution (dot)	30×80 (H×L) / 36×96 / 45×120 / 60×160
   Panel Size (mm)	56.25 × 150
   Resolution (dot) – for 600mm shelf	30×320 / 36×384 / 45×480 / 60×640
   Shelf Display Size (mm) – 600mm	L: 600mm; H: 60mm
   Power Supply Mode	5VDC or 24VDC
   Electric Power – 600mm	24W
   Luminance (cd/m²)	300 – 1000 cd/m²
   Light Bar	900mm
   Shelf Display Size (mm) – 900mm	L: 900mm; H: 60mm
   Resolution (dot) – 900mm	30×480 / 36×576 / 45×720 / 60×960
   Electric Power – 900mm	36W
   Shelf Display Size (mm) – 1200mm	L: 1200mm; H: 60mm
   Resolution (dot) – 1200mm	30×640 / 36×768 / 45×960 / 60×1280
   Electric Power – 1200mm	48W
   Working Temperature (°C)	-20°C ~ +60°C
   Working Humidity (RH)	10% – 90%
   Color Temperature (K)	3000 – 9000 K
   Contrast Ratio	1,000,000 : 1
   Horizontal Viewing Angle (Deg)	>170°
   Vertical Viewing Angle (Deg)	>170°
   Life Span (H)	100,000 H
   Grey Scale (bit)	16 – 22 bit
   Refresh Frequency (Hz)	3840 Hz

   Control system introduction

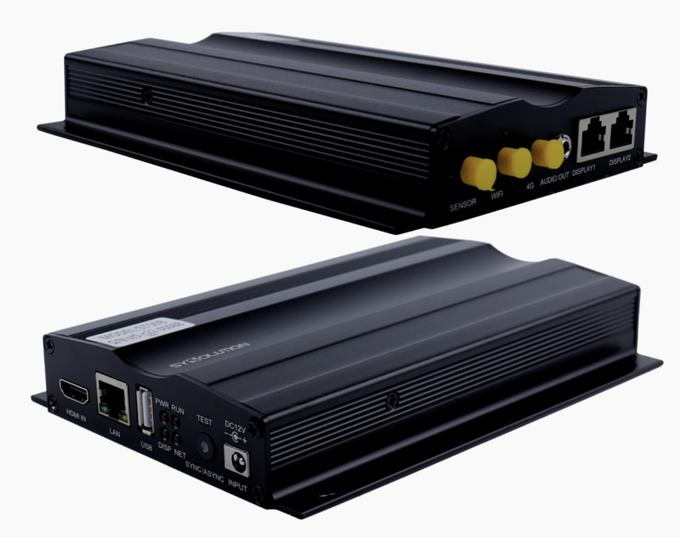

   M50B-H: 1.3 million pixels, widest and highest resolution: 1920; supports operation from -30℃ to 75℃, gigabit dual network ports for network backup; supports cloud platform access for easy remote cluster management of displays; with its safe and stable design, it saves users space, reduces wiring, and can be used for indoor commercial displays and outdoor large-screen cluster network control.

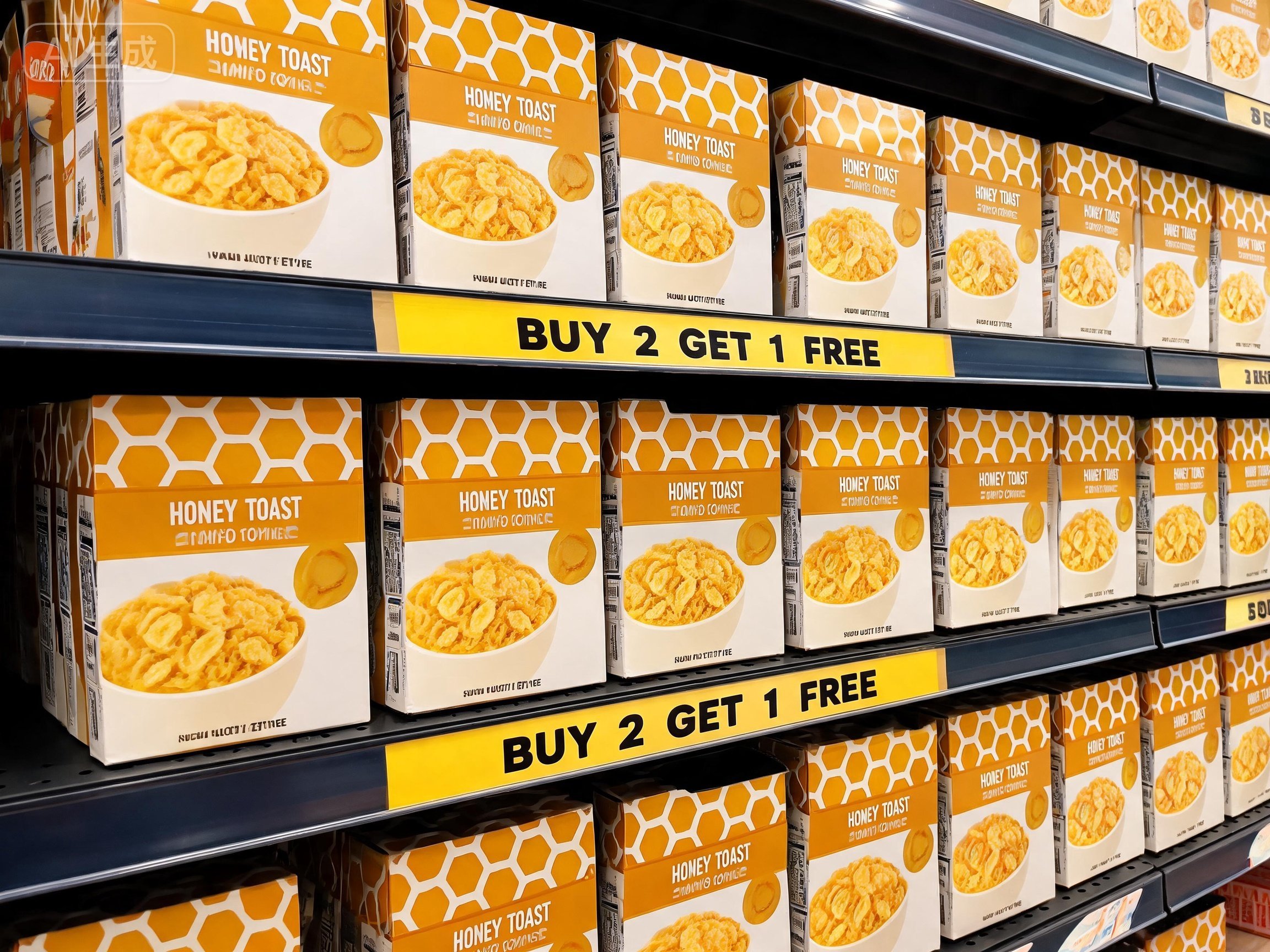

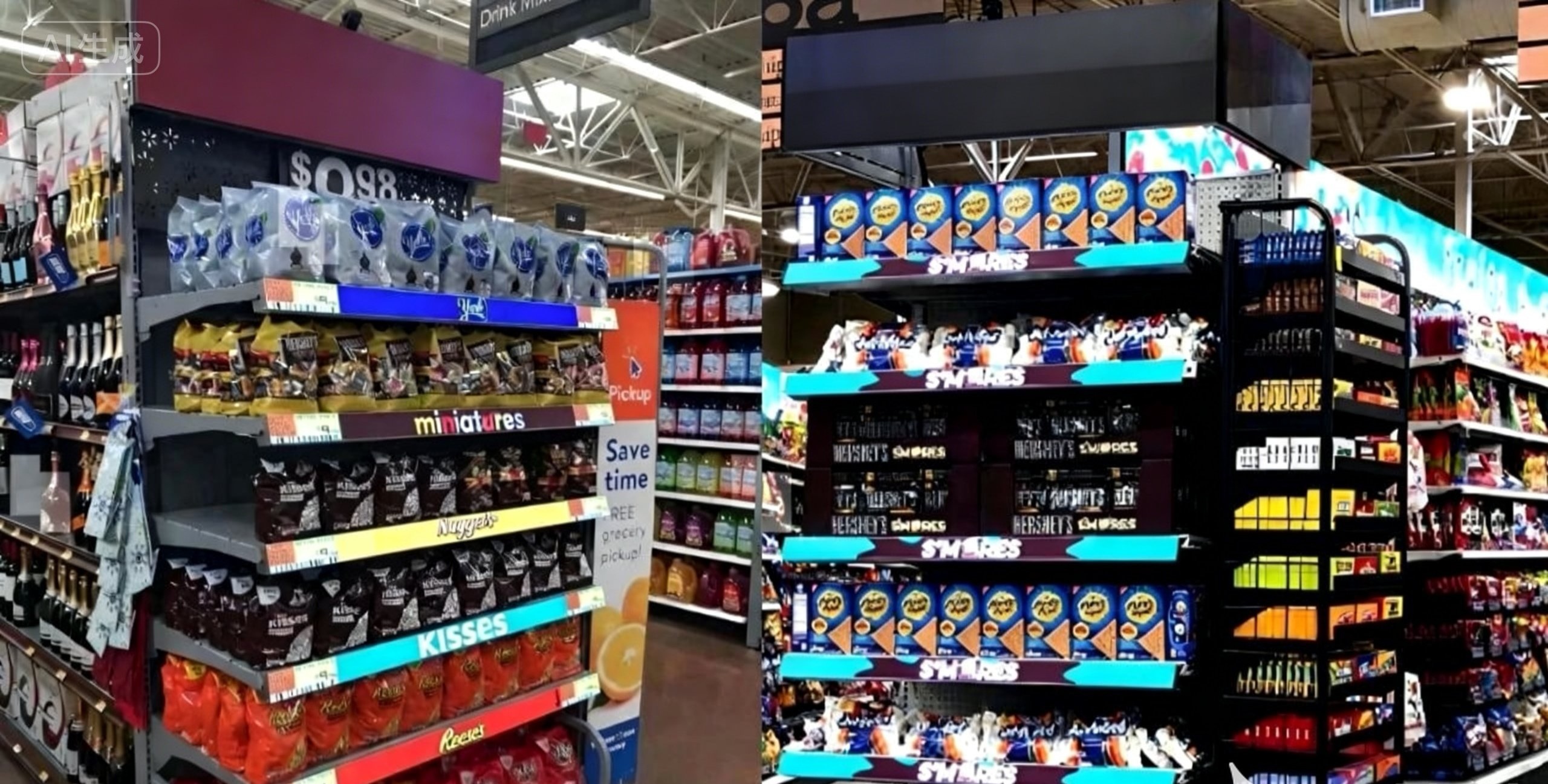

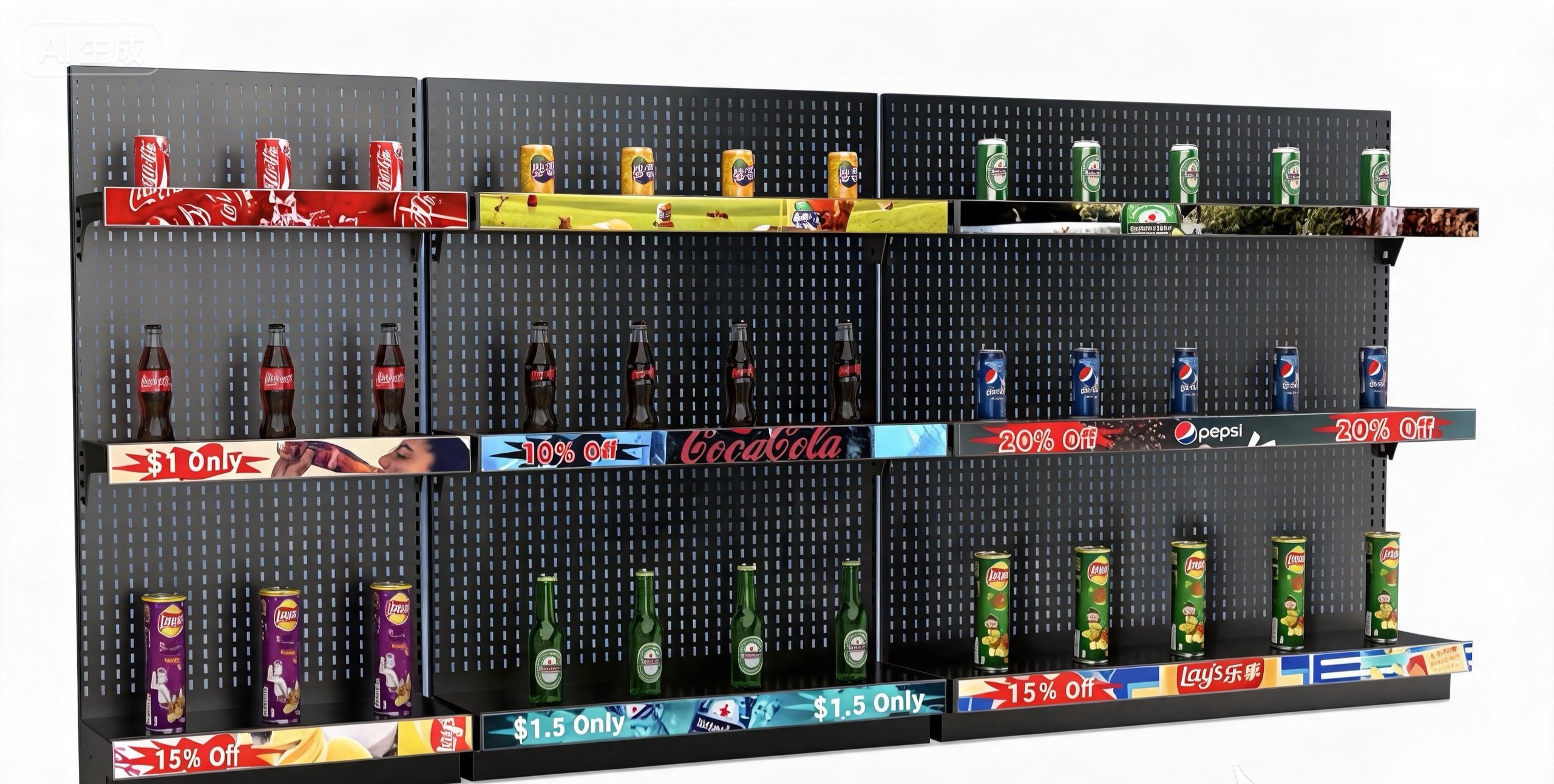

   Application scenarios



   Quality Management

   The 7S on-the-spot management system has been implemented, and the SPC (Statistical Process Control) method is applied for process control.

   We have passed the ISO9001:2008 certification.

   Complete quality organizations have been established, including IQC (Incoming Quality Control), IPQC (In-Process Quality Control), FQC (Final Quality Control), QE (Quality Engineering), and supplier management.

   Production Equipment

   our factory is equipped with advanced and precise production equipment, including SMT machines, reflow soldering machines, wave soldering machines, automatic lamp inserting machines, high‑temperature aging chambers, and thermal shock testing machines.

   Automated processes are adopted for die‑bonding, wire‑bonding, encapsulating, thermal shock testing, salt spray testing, and high‑voltage/insulation resistance testing.

   These ensure that both the complete LED display and its components remain in a stable and reliable status.

   Over the years, our factory has maintained a leading position in the domestic LED display industry, with a strong technical development mechanism and a sound management check system.

   To avoid potential defects in design and production, we conduct a series of reliability tests, such as:

   • Electronic performance tests for semi‑finished and finished products

   • Anti‑dust test

   • Waterproof test

   • Anti‑corrosion test

   • Thermal shock test

   Reliability Test

   To avoid potential defects in design and production, we conduct a series of reliability tests, such as:

   • Electronic performance tests for semi‑finished and finished products

   • Anti‑dust test

   • Waterproof test

   • Anti‑corrosion test

   • Thermal shock test
