Precise Angled Design – High Efficiency, Energy Saving
Blueshine Glasses‑free 3D Displays: Making Your Landmark Stand Out with Stability

To deliver a stunning glasses‑free 3D experience in challenging outdoor environments, hardware design must excel both inside and out. The Blueshine Common Anode Series features a specially angled bezel design, making it easy to build L‑shaped right‑angle screens that produce a breathtaking stereoscopic effect. Paired with a common‑anode power supply and an optimised driver solution, this series effectively reduces unnecessary power consumption and heat generation – tackling the root cause of high‑temperature risks. The result is a display that stands up to extreme weather and ensures round‑the‑clock stable operation.

Optimised Configuration, Premium Performance
Outdoor display modules, combined with common‑anode power supplies and refined driver architectures, achieve superior energy efficiency and thermal management.

Immersive Glasses‑Free 3D Visuals
The custom angled bezel design allows seamless construction of L‑shaped right‑angle screens, delivering a truly captivating glasses‑free 3D experience that draws crowds and elevates brand presence.

Crystal‑Clear, Flicker‑Free Imaging
For commercial landmarks, a glasses‑free 3D screen is more than a display – it’s a brand ambassador. Any blackout, flickering, or colour distortion during peak tourist seasons can damage visitor experience and even trigger negative social media buzz. Poor heat dissipation, inadequate refresh rates, and unstable systems are hidden brand killers.
The Blueshine outdoor series solves this with a 3840Hz ultra‑high refresh rate and broadcast‑grade grayscale processing, ensuring ultra‑smooth motion, no visible flicker to the naked eye, and zero scan lines when captured on smartphones. Every “casual shot” becomes high‑quality promotional content. With a 12‑14bit ultra‑wide colour gamut and high‑flatness modular kits, colours remain vivid and natural, while the screen stays perfectly flat even after years of operation.

Energy Efficiency & Cost Savings
Reduced heat generation by 10% and energy savings of over 30% significantly cut operating costs, boosting your ROI over the long term.

Outstanding Clarity & Robust Protection
Supports 2K/4K resolution with brightness ≥ 4500 cd/m² (configurable to higher levels). The IP65 protection rating fully shields internal circuits, extending service life and ensuring reliable performance in rain, dust, and coastal environments.

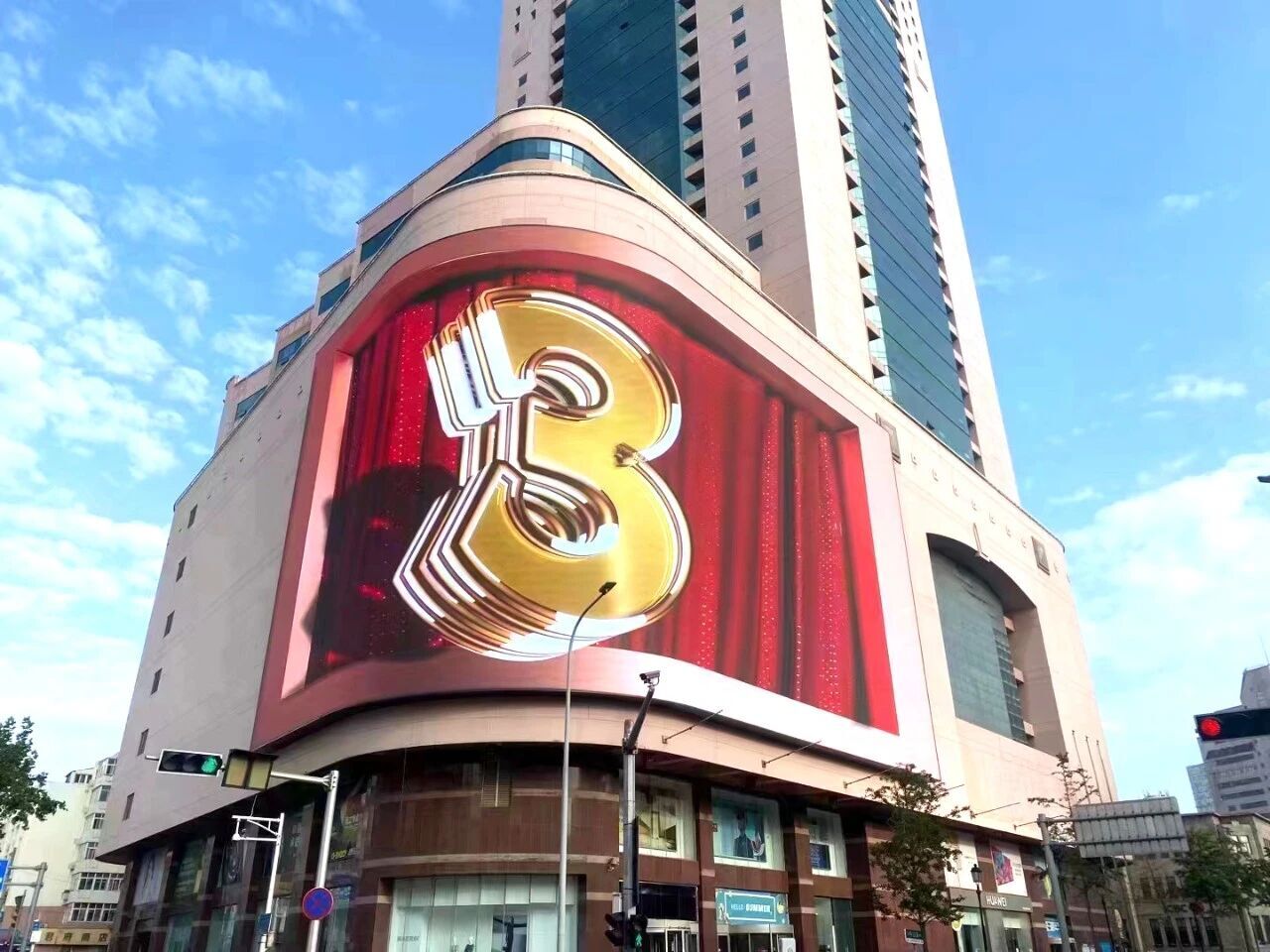

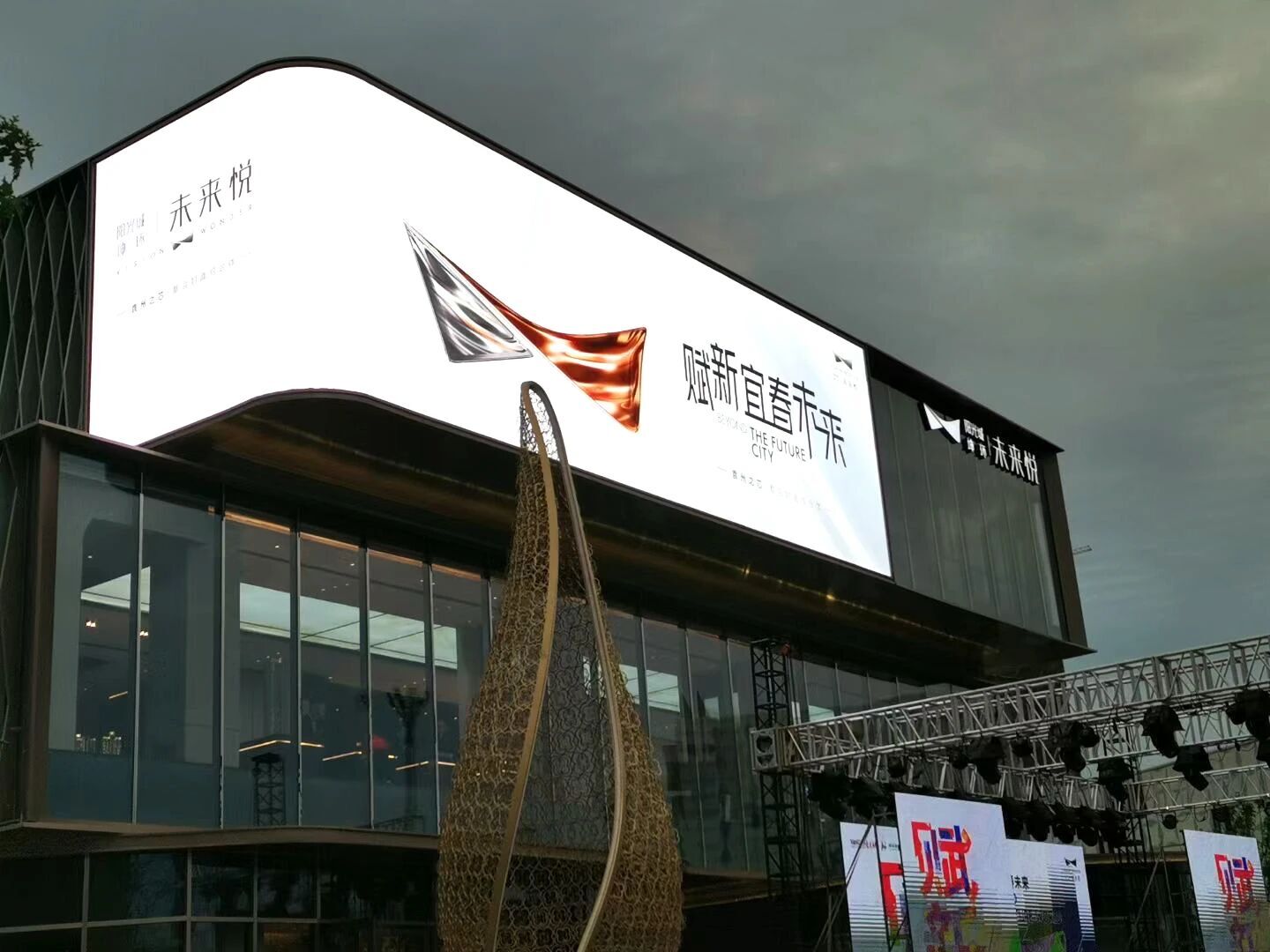

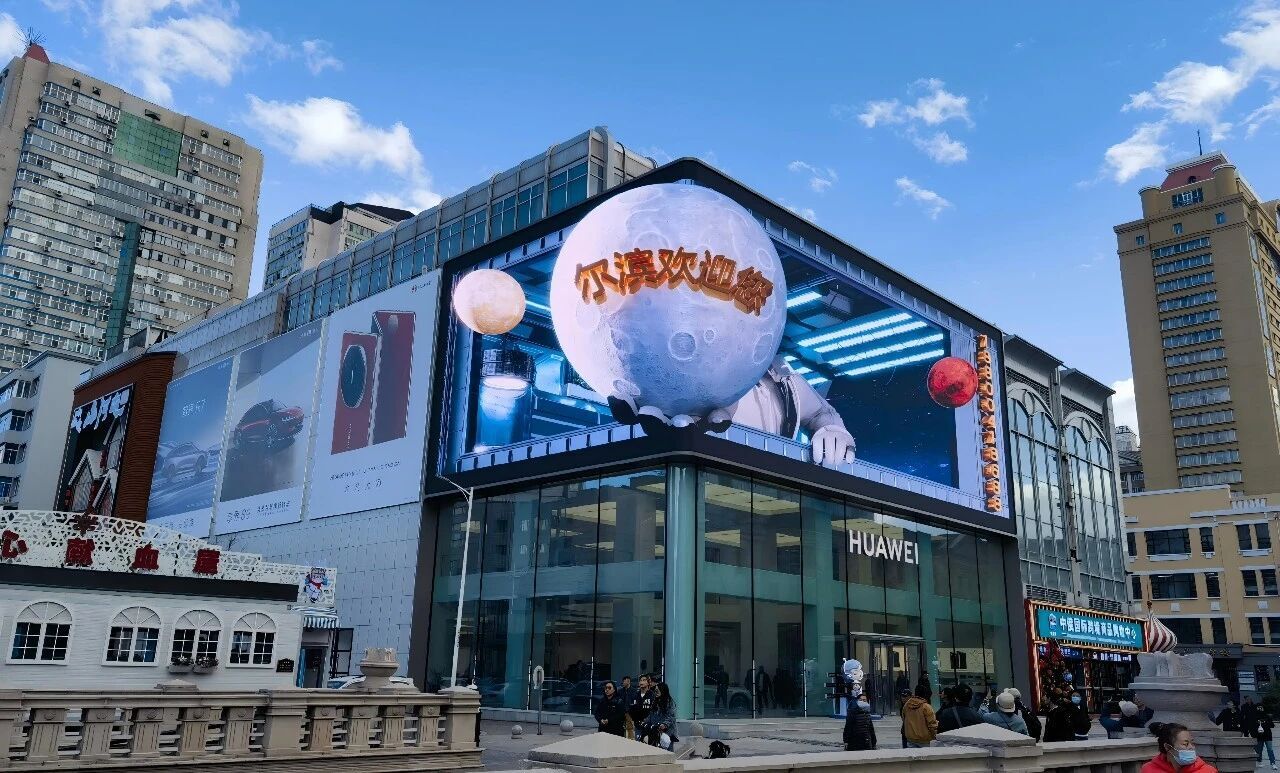

Proven Deployments Across China – Empowering New Consumer Scenarios
From coastal cities to inland hubs, Blueshine’s glasses‑free 3D solutions have been successfully installed in multiple landmark projects across the country. Our mature display technology not only helps these locations go viral but also turns each screen into a continuously appreciating media asset.
We look forward to partnering with you to illuminate the next chapter of visual experiences – wherever that may be.

Product introduction

01. High Safety – Weatherproof and Risk‑Free

• Special waterproof sealing gasket design with multi‑layer water protection – rated IP65, ensuring stable operation even under heavy rain and extreme weather conditions.

• All‑aluminum base with high ignition point and superior fire‑retardant performance – certified by TÜV 5VB flame‑retardant test, fundamentally eliminating fire hazards at the source.

02. High Stability – Superior Heat Dissipation, Energy‑Efficient and Eco‑Friendly

• The all‑aluminum construction combined with herringbone heat‑dissipating fins significantly improves thermal efficiency, effectively extending product lifespan.

• Split‑voltage power supply design significantly reduces energy consumption, with a maximum power draw of just 650 W/m² – delivering clear and measurable energy savings.

• Hard‑wire connection ensures secure, stable signal and power transmission, minimising failure rates.

03. High Performance – Brilliant Clarity at 10,000‑Nit Brightness

• Innovative circuit design optimises luminous efficiency – customisable to achieve 10,000‑nit brightness (standard brightness ≥ 6,500 cd/m²). Even under direct sunlight, the screen delivers crisp, vivid, and colour‑rich visuals.

04. High Convenience – Flexible Installation, Easy Maintenance

• Front‑and‑rear maintenance design simplifies installation, saves valuable space, and improves servicing efficiency.

• Ultra‑slim and lightweight – each cabinet weighs as little as 25 kg and is only 77 mm thick (95 mm including power supply). Concealed cable routing ensures a clean, durable appearance. No edge‑trimming or air‑conditioning for cooling is required, significantly reducing transport and installation costs.

05. High Contrast – Pure Image Quality with Outstanding Detail

• Innovative mask design with a 2.5 mm visor height effectively reduces the impact of direct sunlight, enhancing contrast for purer, more vivid images.

• High‑precision mask with ultra‑low tolerances eliminates the "module‑visibility" effect, delivering superior visual performance.

06. Versatile Applications – Unlimited Possibilities with Flexible Splicing

• Supports curved‑corner and right‑angle splicing to accommodate diverse architectural and creative design requirements – easily enabling 3D display effects and expanding the boundaries of application.

• Ideal for a wide range of outdoor scenarios, including:


  • Outdoor advertising & media

  • Sports event broadcasting

  • Commercial centre displays

BlueShine – Outdoor Brilliance, Engineered to Endure.
