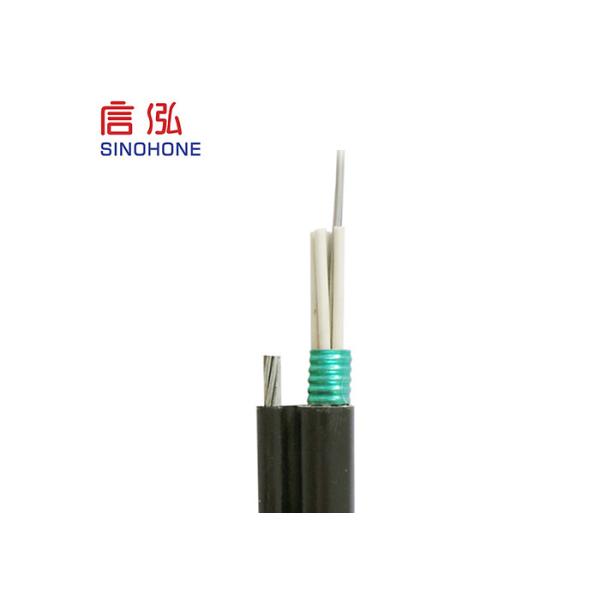

2 Core Aerial Self Supporting Outdoor Single Mode Fiber Optic Cable 2 Km Per Roll
2 Core Aerial Self Supporting Outdoor Single Mode Fiber Optic Cable 2 Km Per Roll
2 Core Aerial Self Supporting Outdoor Single Mode Fiber Optic Cable 2 Km Per Roll
2 Core Aerial Self Supporting Outdoor Single Mode Fiber Optic Cable 2 Km Per Roll
Specifications
Brand Name :
SINOHONE
Model Number :
GYTC8S
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
2 kilometers
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5-8 work days
Packaging Details :
2km per Iron wooden drum add covering board or customized
Product Name :
Outdoor fiber optic cable
Fiber Type :
OM1 OM2 OM3
Fiber Count :
2 Fibers
Length :
2 km per roll or customized
Central Strength Member :
FRP
Armor :
Aluminum Tape
Sheath :
PE
Description

2 Core Aerial Self-supporting Outdoor Single Mode Fiber Optic Cable

Description

GYTC8S is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.

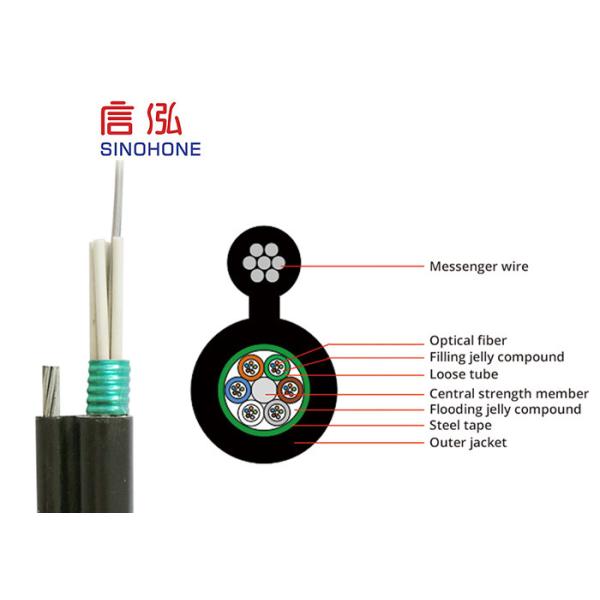

Structure

  • The stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
  • Corrugated steel tape armored and PE outer sheath provide crush resistance and gun shot resistance features.
  • The steel-wire as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system.
  • The impact structure ensures excellent mechanical and environmental performance.
  • Both single mode type and multimode types are available.
  • Various lengths and fiber number can be customized according to customers’ requirements.

Applications

  1. Inter-building voice or data communication backbones.
  2. Duct and self-supporting aerial

Characteristics

  1. loose tube gel-filled construction for superior fiber protection
  2. corrugated steel tape armor to protect cable from mechanical damage
  3. self-supporting Figure 8 design

Item
Parameters
Loose Tube
Material
PBT
Color
All color display
Filler
Material
PE
Color
Black
Electrical Unit
Insulation
HDPE
CSM
 FRP
Armoured
 Steel wire
Outer Jacket
MDPE
Jacket Color
Black

2 Core Aerial Self Supporting Outdoor Single Mode Fiber Optic Cable 2 Km Per Roll2 Core Aerial Self Supporting Outdoor Single Mode Fiber Optic Cable 2 Km Per Roll
