Light Weight LED Curtain Screen P10.4 Full Color 500*1000mm Rental Or Fixed
Light Weight LED Curtain Screen P10.4 Full Color 500*1000mm Rental Or Fixed
Specifications
Brand Name :
PRT
Model Number :
P 10.416 led curtain
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen Guangdong China
MOQ :
5 sq.m
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
flight case (6 panel into a case)
Pixel pitch :
PH10.416mm
Panel size :
500 mm length x 1000 mm height
Cabinet material :
Aluminum
Brightness :
>3500nits
Display function :
Video, image, text, flash, pictures
Usage :
rental or fixed installation
Description

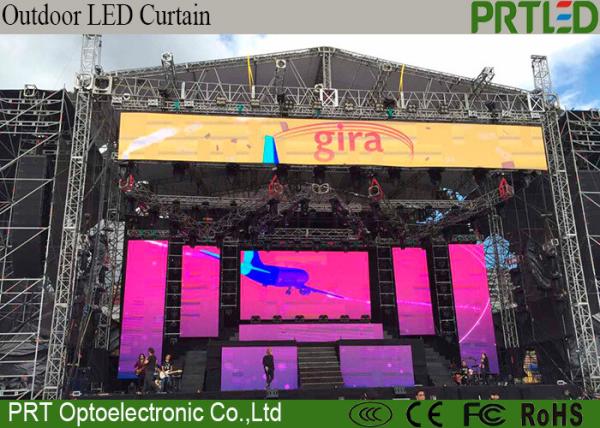

P10.4 full color led curtain screen , stage video curtain with 500*1000 mm cabinet

Main advantages:

1. Light weight
2. Super thin
3. Indoor Full Color LED Display
4. Energy-saving

5. pack with flight case or wooden case

6. 15-20 days normaly for production

Technical parameter :

physical pitch 10.4mm
physical density 9216 pixels/m²
led shape & size SMD 3535
led arrangement 1G1R1B
module size 500mm X 1000mm
module resolution 48 X 96 dots
brightness ≥3500cd/m²
contrast ≥2000:1
view angle, 50% brightness 140°/ 140°
minimum view distance 10m
gray scale 65536 levels
color capacity 28.147billion
maximum power consumption 1000w/ m²
ave. power consumption 600w/ m²
drive mode Constant Current Drive 1/4
operationg power source AC90-260V 50-60HZ
frame frequency ≥60 pictures/ sec
refresh rate 360-2000HZ
brightness adjustment 0-255 adjustable
color temperature 5000-9300k
input source support DVI/ VGA, S-Video, RGBHV, Composite video signal, YPbPr(HDTV), HDMI, SDI.
control distance UTP CAT5E: 100m, Multi-mode fiber: 500m, Single mode fiber: 10km
Storage temperature (-40°~ +85°)
operating temperature (-20°~ +60°)
operating humidity 10-95%
operating life span 100,000hours
MTBF 1000,000hours
protection rate IP54
out of control rate 0.01%
