P 5 Outdoor Waterproof Double Sided LED Display With Front Maintaining
P 5 Outdoor Waterproof Double Sided LED Display With Front Maintaining
Specifications
Brand Name :
PRT
Model Number :
Pitch 5 mm
Certification :
CE ROHS FCC
Place of Origin :
Guangdong China
MOQ :
5 sq.m
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
wooden case(4 cabinets into a case)
Product :
P5 led sign
Driving mode :
1/8 Scan
Moduel size :
160 x 160 mm
Screen dimension :
customized
Application :
media video advertisement, living broadcasting
Cabinet material :
Iron or aluminum
Description

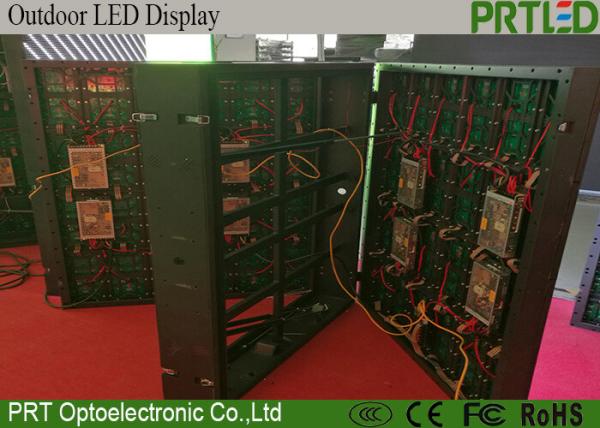

P 5 Outdoor Waterproof Full Color Double Sided LED Display with front maintaining

Delivery Time:

Shipped in 15 days after payment


Features:

1. Front Access Avaiable ,easy for maintanence;

2. the smd double sided led dispay can reach 7000nits;

3. IP65 Waterproof, meeting the demands of outdoor applications;

4. Input Voltage:AC100-220V;

5. P5,P6 and P8 led signs are optional.

Mechanical Design

  • Distinctive soft mask and strong cabinet edge protection provide highly resistant ability to impact game.
  • DC power input support ensures safety in operation.
  • Adjustable vertical viewing angle makes installation process more flexible and reach different occasion needs.
  • Modular screens designed to be installed directly standing on the floor.
  • Experienced structure engineering team concentrates on designing convenient and easy installation cabinets with firmness.

Technical parameters for reference:

P5 Outdoor LED Display Technical Parameter (T=25℃)
Items Parameters Values
Basic Parameters Pixel Pitch 5mm
Pixel Configuration 1R1G1B
Physical Density 40000dots
LED Encapsulation SMD2727 (Nationstar or other brandLEDs)
Module Size 160*160mm
Module Resolution 32*32dots
Iron Cabinet Size 1600*800mm or customized
Cabinet Resolution 320 * 160 dots
Module Quantity / m2 19.53pcs / m2
Optical Parameters Equilibrium Brightness >6000cd/m2
Color Temperature ≥10000K
Viewing Angle 120°
Viewing Distance ≥5m
Performance Parameters Gray Scale / Color ≥16.7M color
Scanning Mode 1/8 scan
Frame Frequency ≥60Hz
Refresh Frequency ≥1920Hz
Driving Device MBI5124 IC
Control Method Synchronous Control or WIFI,3G/4G,USB
Control System Navo Control System (The preferred) or others
Operation Parameter Life Time >100000hours
Level of Protection IP65
Working Environment Temperature -10℃ ~ 60℃
Working Environment Humidity 10% ~ 70% RH
Storage Temperature Range -10℃ ~ 60℃
Electric Parameter Module Working Voltage DC 4.2V - DC 5V
Power Supply Requirement 100-220 Va.c±10%, 50 Hz±4%
Module Consumption 25W
Screen Consumption 800W/m2




Befor offering price,please kindly confirm us some details if you don't mind:

1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? any logo on back of cabinet?
4. When do you need to get goods? is this urgent?
5. Any special requests? such as video processor, hanging bar, flight case for package? please advise it as well.
