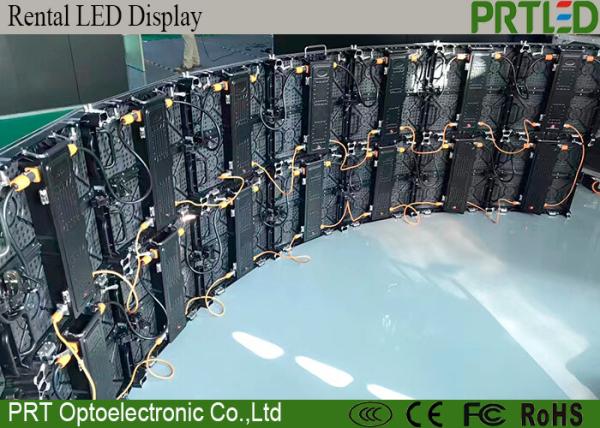

P4.81 Stage Outdoor Rental LED Display With Curved Die Casting Cabinets
P4.81 Stage Outdoor Rental LED Display With Curved Die Casting Cabinets
Specifications
Brand Name :
PRT
Model Number :
P4.81-Curved
Certification :
CE,RoHs, FCC
Place of Origin :
Shenzhen Guangdong China
MOQ :
3 sq.m
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000sq.m per month
Delivery Time :
15 work days
Packaging Details :
flight case or wooden case
Name :
outdoor P4.81
LED Chip :
SMD2727
View angle :
Horizontal 140°, Vertical 140°
Application :
Outdoor event, concert and so on
Features :
Die-casting aluminum
Power supply :
G-energy, Mean well as requested
Description

P4.81 Outdoor Rental LED Display, Stage LED Screen with curved Die-casting Cabinets

Main details:

1. Exclusive design

2. High density, high quality
3. CE, ROHS, FCC
4. 2 years warranty

5. High brightness>5000nits

6. Cabinet size: 500 x 500mm, and 500 x 1000mm

7. Curved angle for each cabinet : 10 degree or 15 degree



Program Features:


1. High refresh, high gray-scale, high-resolution and high-contrast, coupled with the industry's advanced point by point correction technology, making the display pictures more gorgeous and vivid.

2. With high contrast, consistent white balance, uniform display color, high-definition screen, it can meet the requirements of live

3. Frequent Video source switching and powerful seamless switching system.

4. Not only easy to install and dismantle, but also have cost advantages which fit for making large-scale stage background

5. With professional audio and video processing systems to support live, large and clear live images, breaking the seat restrictions, allowing remote viewing performance easier, giving an immersive audio-visual feast. Wonderful scenes, slow-motion playback, close-up, creating a special background environment.

Techinical Specification:

Slim Die-casting aluminum outdoor LED screen
Pitch/mm P4.81
Module size/mm 250x250
Density of pixel/(dots/m2) 43264
Led encapsulation SMD2727
Resolution of module 52X42 dots
Optimum viewing distance 4.5-25m
View angle / ° 140 H,120 V
Max power consumption/W/M2 800
Size of cabinet/mm 500 X 1000
Resolution of cabinet 104 x 208
Weight of cabinet/kg 13 kgs
Driving method 1/13 scan constant current
Refresh rate Hz/S ≥2000
Luminance of white balance ≥5000 nits
Waterproof rate IP65(front)/ IP54(back)

Operation of Environmental

Temperature/℃

 below 30 to above 50
Working vlotage 110-220 VAC/+/- 10%
Grey scale/color displaying colors≥16.7M(synchronized)
Brightness adjustment

256 levels of each color(manually),

100 levels of each color(automatically)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn/Novastar(sending card,receiving cards and Hubs)
Average of non-failure life >50,00h
Life span >100,000h
Functionaless dot rate <0.0001
