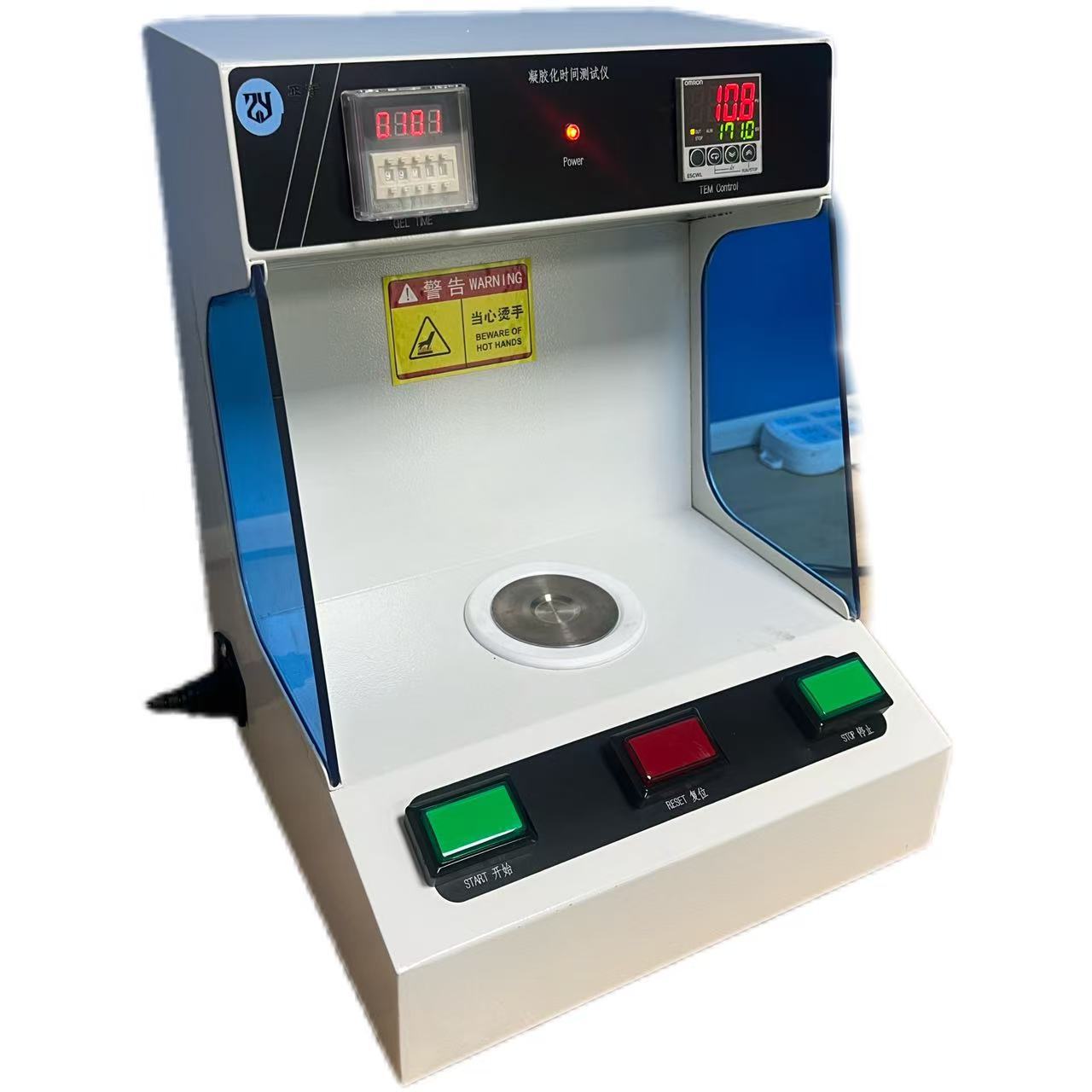

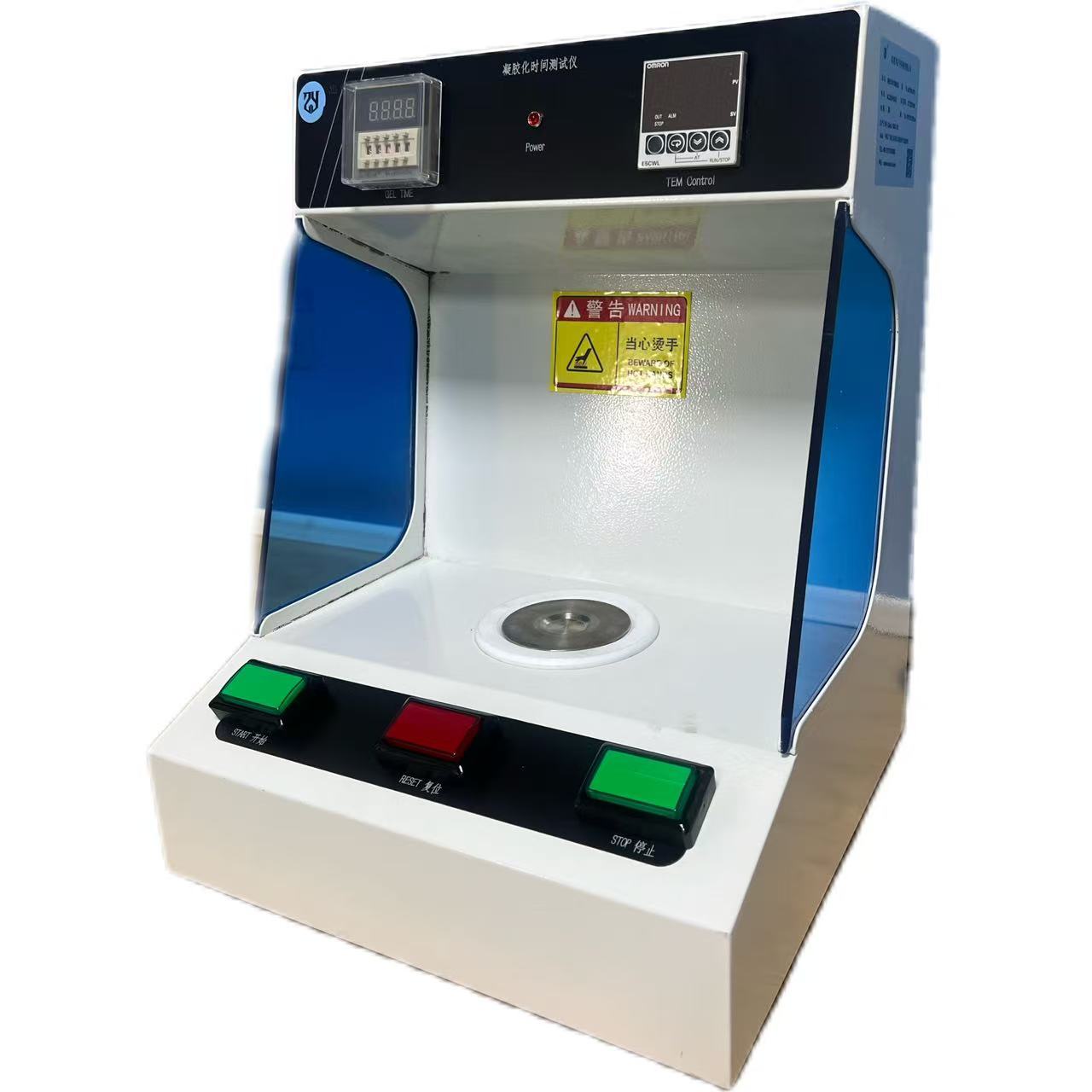

special instrument and equipment for testing gelation time of semi-cured sheet and resin in copper clad laminate and circuit board industry;

1. Operating Voltage: AC220V/50hz;
2. Diameter of hot plate: Φ20 * D2MM (custom made Φ50 * D1MM);
3. Time: 0-999.9 seconds (can also be set to 0-9999s);
4. Temperature control and fluctuation: PID intelligent closed-loop control, temperature controller temperature control range in 0-250 degrees Celsius can be adjusted, constant temperature change is not more than ± 0.3 °C;
5. Dimensions: L * D * H = 350 * 350 * 480 mm;
6. Dust level: generally relatively clean environment;
7. Shell Temperature: the instrument is running normally and the shell temperature is not more than 50 °C;
8. Input Power: rated Power 500W;
9. Relative humidity: 50% ± 20% Rh;

1. Using Omron temperature controller imported from Japan, digital display PID intelligent control, precise control of the pool temperature, precision can reach ± 0.3 °C, instrument temperature control table display temperature and hot plate actual temperature within 0.5 degrees;
2. using imported timer, timing accuracy, minimum resolution of 0.1 s, timing range 0-999.9 s, can be set to 0-9999s;
3. the use of reliable over-current, leakage protection devices to improve operational safety;
4. the operation is simple and convenient, left and right design two START/STOP control button, high-end import button, adapt to the left and right hand habit different experimental operation crowd;
5. large LED digital display, novel and beautiful appearance;
6. The internal insulation material of the instrument is highly imported, the ambient temperature is stable, and the test accuracy is high
7. Good anti-corrosion effect, internal high corrosion resistance of imported materials, service life of up to 5 years long;
8. Distribution of high-grade release agents, stir bars and other test aids
9. Quality Guarantee for 1 year, life-long after-sales;
