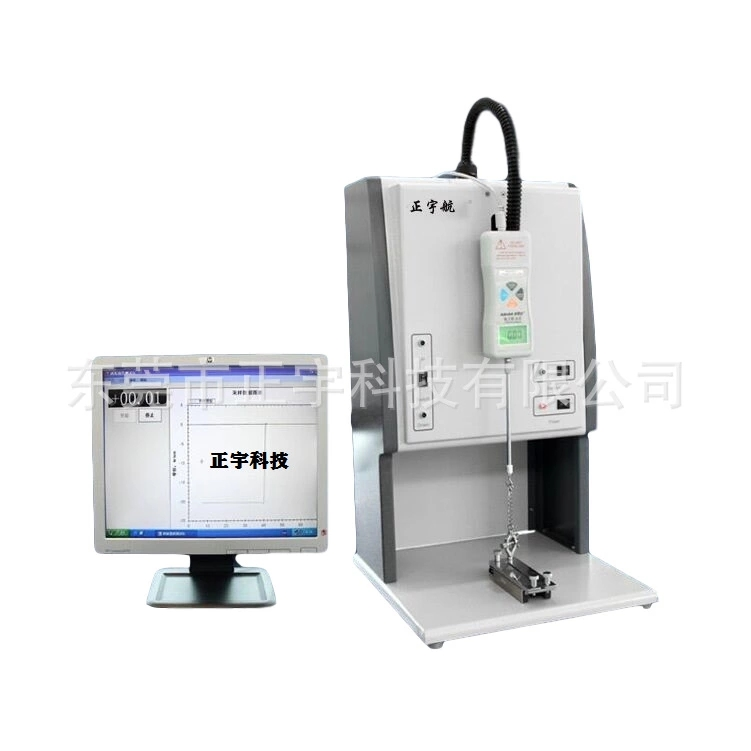

Copper foil peel strength tester ASTRO-BLY60
Copper foil peel strength tester ASTRO-BLY60
Specifications
Inspection Speed :
Up to 2000 cm²/min
Resolution :
0.01 mm
Dimensions :
1200 mm x 800 mm x 1500 mm
Defect Types Detected :
Missing components, misalignment, solder bridges, open circuits
Lighting System :
LED multi-angle lighting
Power Supply :
AC 110-240V, 50/60Hz
Place of Origin :
Dongguan, Guangdong, China
Supported Pcb Size :
50 mm x 50 mm to 500 mm x 500 mm
Data Output :
CSV, XML, and database integration
Detection Method :
Automated Optical Inspection (AOI)
Weight :
150 kg
User Interface :
Touchscreen LCD panel
Camera :
High-resolution CCD camera
Component Types :
SMD, Through-hole
Software :
Real-time image processing with AI algorithms
Description
Product highlights

The PST-R series copper foil peel strength tester is designed and manufactured in accordance with IPC-TM-650 Test Method Manual 2.4.8, it is specialized in measuring the peel strength of copper foil on rigid boards in the laboratories of the copper clad laminate and printed circuit board industries. Specification for PST-R series copper foil peel strength tester.

Scope of use

Scope of application: PCB copper foil tensile/peel strength test, professional used for measuring the peel strength of copper foil on rigid copper clad laminate, equipped with rigid sample fixture trolley.

Product description
  1. professional for measuring the peel strength of copper foil on the rigid copper clad laminate, equipped with Japanese rigid sample fixture trolley, quiet and smooth;
  2. force table ability: can choose 0-1 kg, 0-5 kg, 0-15 kg force table (optional) ;
  3. the force meter display unit can be converted between pounds, kilograms, Newtons;
  4. Accuracy: ± 0.20% (high load) ± (mantissa) ;
  5. the use of self-developed high-end tension meter software, the use of 4 and a half LCD digital display of the tension meter;
  6. with two-way RS232 interface, can be used with the computer connection, Great Wall 256G Solid State, motherboard asus H81 M-K, chassis + Great Wall 5000AD power supply, liquid crystal display, Win10 system;
  7. the force gauge built-in rechargeable battery;
  8. Stripping Speed: 50mm/min ± 5mm (2“/min)
  9. Stripping Stroke: 80mm
  10. Body size: 310 × 430 × 600mm (W × d × H)
  11. Weight: about 20kg
  12. Rated voltage: AC220V/50Hz, current: 3A
Working voltage AC220V/50Hz triangular power outlet, good ground connection required
Stripping speed 50 mm/min ± 5 mm (2“/min) stepless speed regulation
Ambient temperature 25 ± 3 °C
Ambient humidity 20-70% Rh
Schedule for divestiture 0-100mm
Pull-gauge capability 0-50N standard
Precision display 0.01 N
Dimensions (W × D × H)-310 × 430 × 600 mm
Measurement software Domestic high-end measurement software (optional)
Computer Memory: 1GB HARD DRIVE: 200gb (optional)
