DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle
DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle
DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle
DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle
DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle
DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle
DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle
DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle
Specifications
Brand Name :
TMOK
Model Number :
TK5009-D
Certification :
ISO9001,CE
Place of Origin :
Zhejiang,China
MOQ :
500~5000pcs
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union, MoneyGram, D/P
Supply Ability :
500000pcs/per month
Delivery Time :
35~45 working days
Packaging Details :
TMOK Normal Packing
Media :
Water
Material :
Brass
Pressure :
PN16
Structure :
Ball
Temperature :
Normal Temperature
Application :
Irrigation,Outdoors,Kitchen
Power :
Manual
Seal Material :
PTFE
Thread :
FXF
Surface Treatment :
Nickel Plating
Description

Source Factory Fast Delivery DN15~25 Full Bore Brass Ball Valve With Long handle

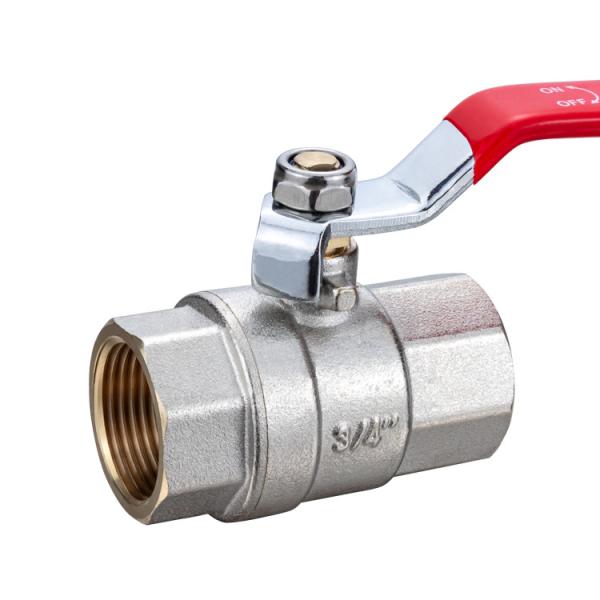

Brass Ball Valve Introduction

Brass Ball Valve with Red Long Handle, Have in stock of 1/2",3/4"and 1".Nickel Plating Surface Treatment and Full Bore,PN16,FXF Thread Connected and Usually Used to Cut off,Distribute and Change the Flow Direction of the Medium. It only takes 90 degrees of rotation and a small torque to close the tight.

Parameters

Name: Brass Ball Valve Main Market: EU,USA
Handle Color: Brass color Temperature Of Media: Normal Temperature
Pressure: Normal Pressure Power: Manual
Media: Water Port Size: 1/2" 3/4" 1"
Structure: Ball Standard Or Nonstandard: Standard
Main Material: Brass In Stock: Yes
Use: Garden Outdoor PN: 20
Certificate: ISO 9001,CE Free Sample: Available

Details:

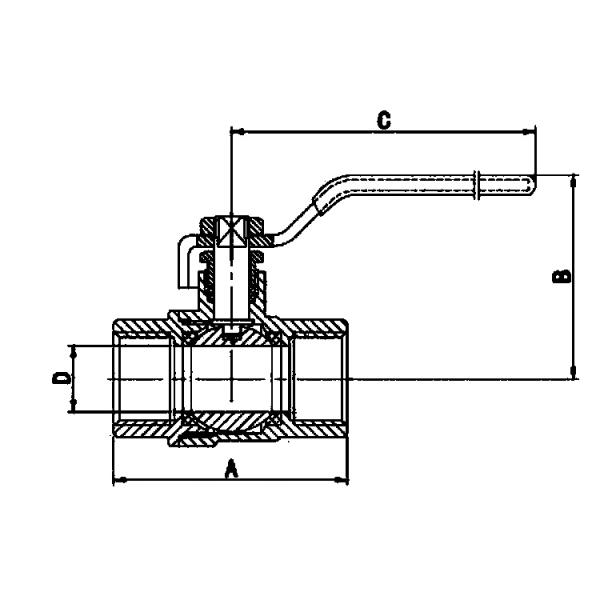

Technical Sheet

DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle

TK5009-D
DN Size A B C D
15 1/2" 52.5 46 87.5 15
20 3/4" 60.5 49 87.5 20
25 1" 69.5 58 104 25
32 1 1/4" 78 69.5 136 32
40 1 1/2" 91 76.5 150 37
50 2" 104 84.5 150 47
65 2 1/2" 123 115 210 57
80 3" 155 132 210 68
100 4" 178 148 290 84
Pressure and temperature limitations for PN rated valve
PN Pressure and temperature range Pressure and Max temperature
<=1.6Mpa 400psi(-10℃ to 110℃) 800psi(150℃)

DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle

DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle

DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle

DN15~25 Full Bore Threaded Brass Ball Valve With Long HandleDN15~25 Full Bore Threaded Brass Ball Valve With Long Handle

DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle

TMOK, founded in 1989, which belongs to Yuhuan Oujia Valve Co., Ltd., integrating research, manufacture, sales and service, is the brand manufacturer that specializes in outdoor ball valve.

DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle

Regarding express and logistics, we have logistics agents who have cooperated for more than 10 years and can transport to most countries and regions in the world. We make sure that every penny of our customers is well spent.
We take shipping very seriously and are able to respond and ship quickly after you place an order.

FAQ

Q.Which size sell best?

TK-8062 1/2" is our hot sell Garden Taps,Each year sell more than 200000 PCS.

Q.What's your factory main product?

Our factory just do all kinds of Garden taps now,TK-8062 Garden Tap is our main production,It's high quality with competitive price.

Q.How to request a manufacturing quote?

A.Simply call or send us E-mail with your purchase request.Be sure to include all accessories in your request for quote.

Q.How are orders packed and shipped?

A.For custom order,TMOK can design full-color custom packaging to match your brand ,if requires .Most shipments

include boxes packed inside an outer carton and placed on a wooden pallet.

Q.Are there any special requirements for OEM purchases?

A.Yes.TMOK requires proof of trademark registration in order to print or emboss your trademark onto the product or

packaging.

Q.Do TMOK products come with a warranty?

A.Yes.TMOK backs our products100%.That's why we offer 3-year product life guarantee ,and a generous1 year

warranty on al purchases that begins with the bill of lading
