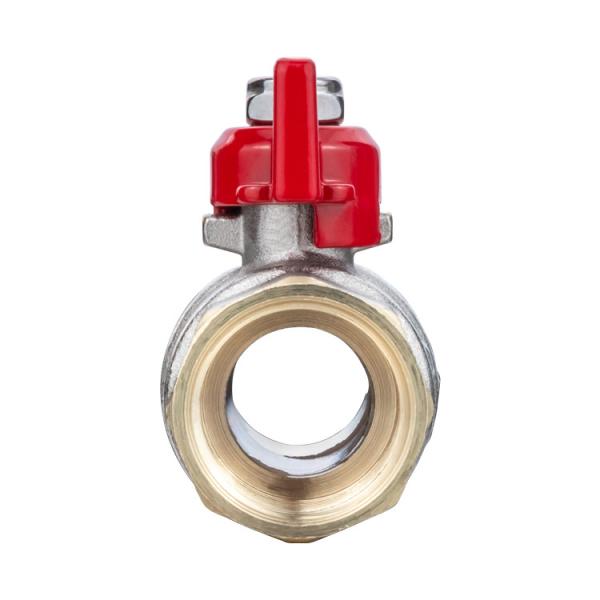

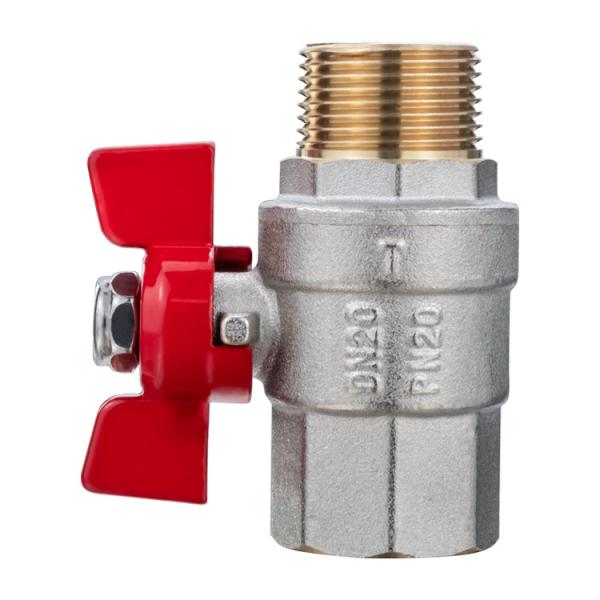

DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected
Specifications
Brand Name :
TMOK
Model Number :
TK-5013-D
Certification :
ISO9001,CE
Place of Origin :
Zhejiang,China
MOQ :
500
Price :
To be Nego
Payment Terms :
D/P, T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability :
500000PCS/PER MONTH
Delivery Time :
35~45 working days
Packaging Details :
TMOK Normal Package
Material :
Brass
Media :
Water,Gas,Oil
Structure :
Ball
Pressure :
Noemal Pressure
Application :
Household Usage,Irrigation
Port Size :
1/2"~4"
Connection :
MXF Thread
Channel Position :
Straight Though
Flow Direction :
Single
Inner Material :
Alloy Copper
Description

DN15~25 Have in Stock MXF Thread Connected Butterfly Brass Water Tap Ball Valve

High capacity of personalized customization

Nickel Plating Surface Treatment and MXF Thread Connected Butterfly Brass Ball Valve. Inner Sealing Material and Straight Through Type.

DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected

Parameters

Name: Brass Ball Valve Main Market: EU,USA
Handle Color: Brass color Temperature Of Media: Normal Temperature
Pressure: Normal Pressure Power: Manual
Media: Water,Oil,Gas Port Size: 1/2" 3/4" 1"
Structure: Ball Standard Or Nonstandard: Standard
Main Material: Brass In Stock: Yes
Use: Irrigation PN: 20
Certificate: ISO 9001,CE Free Sample: Available

Brass Ball Valve Details

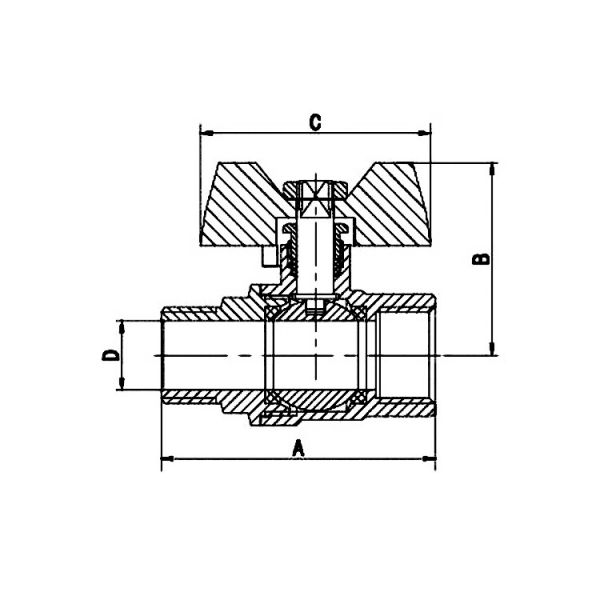

Technical Sheet

DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected

DN Size A B C D
15 1/2"×3/4" 59.5 42 50 15
20 3/4"×1" 66.5 45.5 50 20
25 1"×1 1/4" 76.5 56.5 62 25
Pressure and temperature limtions for PN related Valve
PN Pressure and temperature range Pressure and Max temperature
≤1.6Mpa 12 bar(-10℃ to 80℃) 5 bar (120℃)

DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected

DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected

DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected

DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected

DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected

Our company has got ISO9001 quality certification and European CE certification.Occupying over 5.3 acres, we have more than 230 employees, including 30 people in management, 7 in sales group, 3 R&D staff and more than 15 in quality control.

DN15~25 Butterfly Brass Water Tap Ball Valve MXF Thread Connected

FAQ

Q.Which size sell best?

TK-8062 1/2" is our hot sell Garden Taps,Each year sell more than 200000 PCS.

Q.What's your factory main product?

Our factory just do all kinds of Garden taps now,TK-8062 Garden Tap is our main production,It's high quality with competitive price.

Q.How to request a manufacturing quote?

A.Simply call or send us E-mail with your purchase request.Be sure to include all accessories in your request for quote.

Q.How are orders packed and shipped?

A.For custom order,TMOK can design full-color custom packaging to match your brand ,if requires .Most shipments

include boxes packed inside an outer carton and placed on a wooden pallet.

Q.Are there any special requirements for OEM purchases?

A.Yes.TMOK requires proof of trademark registration in order to print or emboss your trademark onto the product or

packaging.

Q.Do TMOK products come with a warranty?

A.Yes.TMOK backs our products100%.That's why we offer 3-year product life guarantee ,and a generous1 year

warranty on al purchases that begins with the bill of lading
