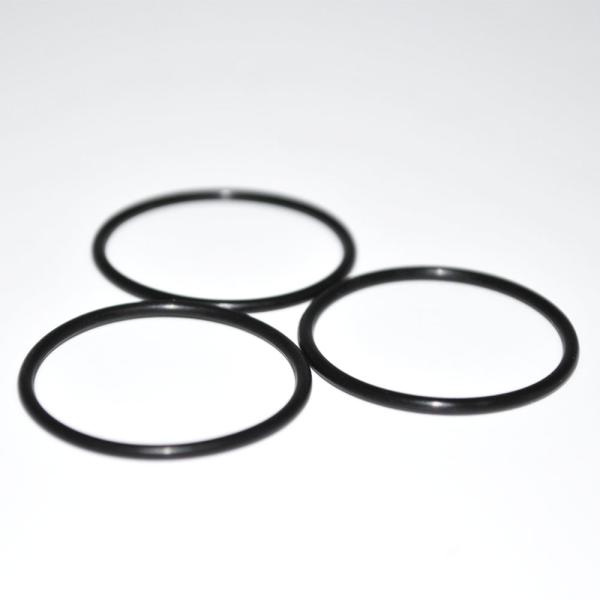

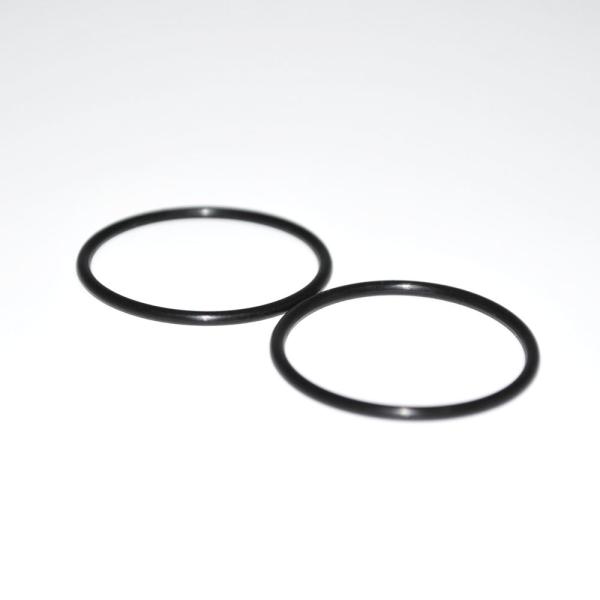

Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket
Specifications
Brand Name :
splendid
Model Number :
Rubber Seal O-ring
Certification :
NSF61, KTW, WRAS, IATF16949
Place of Origin :
Guangdong, China
MOQ :
100 pieces
Price :
$0.005 - $1.5/pieces
Payment Terms :
L/C, T/T
Supply Ability :
250000 Piece/Pieces per Month
Delivery Time :
4-8Weeks
Packaging Details :
Standard pack: bulk pack in a plastic bag and carton box
Special pack: Paper tube, pallet etc
Style :
O Ring
Product name :
Silicone High Precision Rubber Seal Nbr Ore O Rings Custom Epdm Fkm O-Ring Seal Gasket
Material Type :
EPDM, F.VMQ, FKM, FFKM, HNBR, NEOPRENE, NBR, SILICONE, VAMAC...
Temperature :
-60C - 275C
Shape :
As per customer's design
Product :
Standard/non-standard Rubber O-ring Seal
Description

Silicone High Precision Rubber Seal Nbr O Rings Custom Epdm Fkm O-Ring Seal Gasket
Product Description

Rubber seals are a common basic element in sealing devices, which plays a very important role in the contradiction of leakage and sealing. Solve the problems of leakage and sealing in the process of mankind's conquest of nature. It has been an important way to promote technological progress and prevent and reduce environmental pollution. Rubber seals are a kind of rubber product widely used in sealing technology. Because rubber has valuable elastic polymer materials, with a wider temperature range, giving less stress in different media will produce greater deformation. This deformation can provide contact pressure, compensate for the leakage gap, and achieve the purpose of sealing.

Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal Gasket

Rubber Mateials

Materials
NR Natural Rubber High tensile strength, good ductility
SBR Styrene Butadiene Rubber Uniform quality , less foreign matter but weak mechanical strength , can be mixed with NR , widely used in tire industry , shoe soles , tape , conveyor belt , etc
BR Polybutadiene
IIR Butyl Rubber Gas is less permeable and resistant to heat, sunlight and ozone
EPDM Ethylene propylene Rubber
CR Polychloroprene Neoprene Excellent heat aging, weather resistance, ozone resistance
XNBR Carboxylated NBR / Carboxyl Butadience Acylonitrile This gelatinization is rapid sulfur addition, short scorching time, short safe storage period, compared with the general NBR, excellent wear resistance, other characteristics are similar.
NBR Nitrile Rubber ( Buna ) Resistant to alcohol, it is the most common rubber raw material for oil seal and O-ring at present
HNBR Hydrogenated Nitrile / Highly Saturated Nitrile ( HSN ) Better temperature and weather resistance than NBR, similar oil resistance to NBR, used as seals for new R-134A refrigerant system.
PU Polyurethane Rubber High hardness, high elasticity, abrasion resistance are difficult compared to other rubbers, aging resistance, ozone resistance, oil resistance is also quite good, the general PU air tightness is good
CSM Hypalon , Polyethylene Good heat resistance, weather resistance, ozone resistance, acid resistance, often used for oxidation resistant drugs (except nitric acid, sulfuric acid)
ACM ( PA ) Polyacrylate Rubber It has good resistance to petrochemical oil, high temperature and weather. It is worse than general oil adhesive. It is widely used in automotive transmission system and power system seals.
ECO Epichlorohydrin / Hydrin Good oil resistance, heat resistance and ozone resistance
VAMAC Vamac ( Ethylene / Acryllic ) AEM Petrochemical oil resistance, heat resistance, weather resistance, ozone resistance are good, compared with PA has better temperature, widely used in automotive transmission system and power system seals.
SIL Silicone Rubber Tensile strength is worse than general rubber and does not have oil resistance, heat resistance, weather resistance, ozone resistance, low temperature are excellent, suitable for high and low temperature environment, and alcohol resistance.
FSIL Fluorinated Silicone Rubber Good resistance to oil, solvent and fuel oil, good resistance to high and low temperature, used in space parts, but mostly limited to static seals, its strength and wear resistance are not good.
FPM / FKM Fluoro Carbon Rubber High TEMPERATURE RESISTANCE IS BETTER THAN SIL, CHEMICAL resistance, MOST oil AND several solvents (EXCEPT KETones, LIPids), weather resistance, ozone resistance are good, cold resistance is poor, widely used in automobile, chemical plant parts
Please contact us for professional material selection

Materials : NR , SBR , BR , IIR , EPDM , CR , XNBR , NBR , HNBR , PU , CSM , ACM(PA) , ECO , VAMAC , SIL , FSIL , FPM / FKM
Silicone High Precision Rubber Seal , Custom Nbr O Rings Epdm Fkm O Ring Seal GasketSilicone:The term silicone covers a large group of materials in which vinyl-methyl-silicone (VMQ) is often the central ingredient. Silicone elastomers as a group have relatively low tensile strength, poor tear and wear resistance. However, they have many useful properties as well. Silicone has a good heat resistance, good cold flexibility, and good ozone and weather resistance as well as good insulating and physiologically neutral properties.

Productive Process
Contact us - confirm the design - Quotation - The sample payment - Sample making - send the sample - Sample Inspection - Quantity Production - QC Inspection - Packaging - Payment - Transportation
