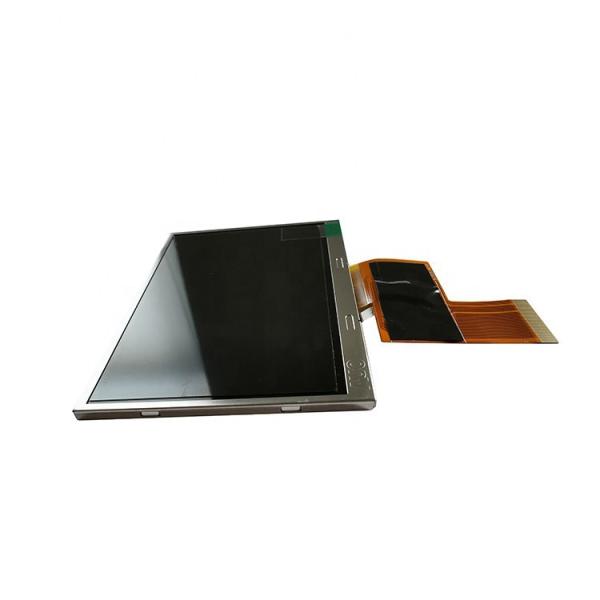

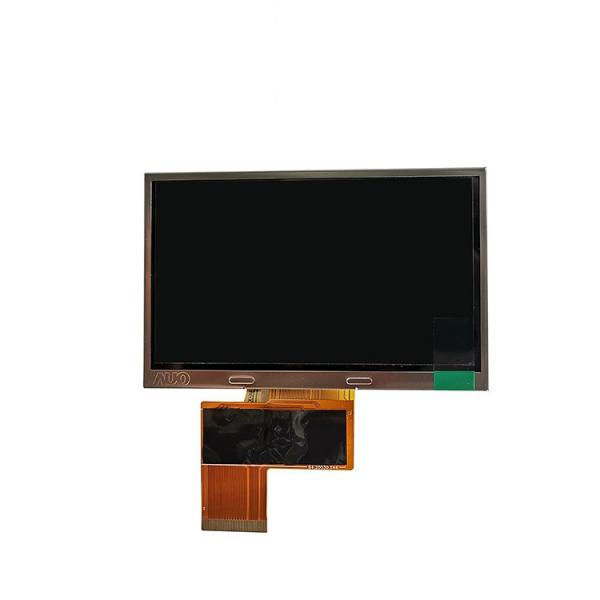

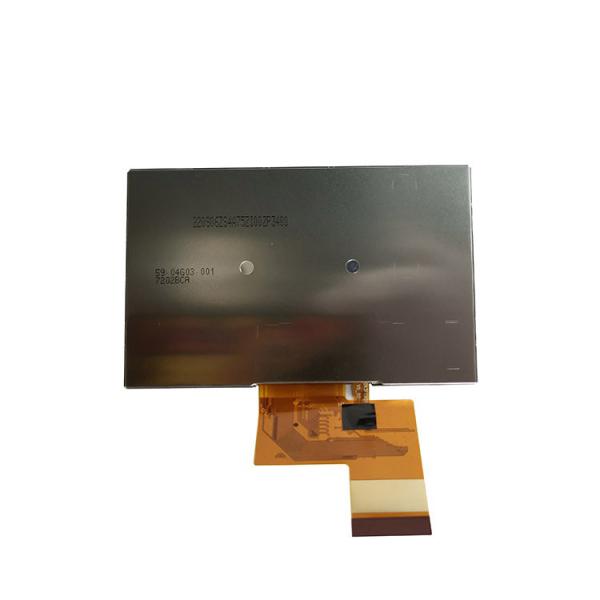

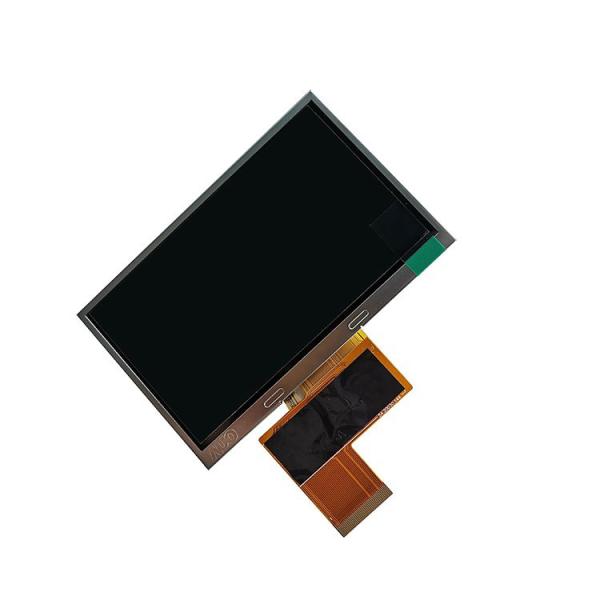

AUO G043FTN01.0 TFT LCD Display 4.3 Inch 480 RGB×272 Pixels
AUO G043FTN01.0 TFT LCD Display 4.3 Inch 480 RGB×272 Pixels
AUO G043FTN01.0 TFT LCD Display 4.3 Inch 480 RGB×272 Pixels
AUO G043FTN01.0 TFT LCD Display 4.3 Inch 480 RGB×272 Pixels
AUO G043FTN01.0 TFT LCD Display 4.3 Inch 480 RGB×272 Pixels
AUO G043FTN01.0 TFT LCD Display 4.3 Inch 480 RGB×272 Pixels
AUO G043FTN01.0 TFT LCD Display 4.3 Inch 480 RGB×272 Pixels
AUO G043FTN01.0 TFT LCD Display 4.3 Inch 480 RGB×272 Pixels
Specifications
Brand Name :
AOU
Model Number :
AUO G043FTN01.0
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Hangzhou, CHINA
MOQ :
1
Price :
$2~$500 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5k-20k pieces per day
Delivery Time :
3-4 weeks
Packaging Details :
CUSTOMIZED
Size(inch) :
4.3
Resolution :
480(RGB)×272
Viewing Angle :
TN
Active Area(mm) :
95.04(W)×53.856(H)
Module Size(mm) :
105.5(W)×67.2(H)×3.1(D)
Interface :
RGB
Operating Temperature :
-20~70
Luminance(nits) :
550
Description

General Specification

Parameter Specification Unit
LCD size 4.3 (Diagonal) inch
Number Of Pixels 480(RGB)×272 pixels
Active Area (W*H) 95.04(W)×53.856(H) um
Outline Dimension (W*H*T) 105.5(W)×67.2(H)×3.1(D) mm
Viewing angle(RLUD) 80/80/55/65 mm
View Direction TN
Interface RGB
Brightness 550 cd/m²
LED Lifetime 30k hrs
Contrast Ratio 400
Operating Temperature 400
Storage Temperature -20℃-70℃

The AUO G043FTN01.0 TFT LCD Display has a 4.3-inch dimension and presents a resolution of 480 x 272 pixels. It is capable of providing clear and vivid visuals, which are applicable to a broad spectrum of uses.

This display is built with a TN (Twisted Nematic) panel. Such a panel endows it with outstanding color reproduction capabilities and rapid response times, rendering it highly suitable for dynamic content. It is also furnished with an RGB interface, which facilitates effortless integration with a variety of microcontrollers and systems.

The operating temperature range of this display extends from -20°C to 70°C. This wide range qualifies it for both indoor and outdoor applications, assuring reliable performance under different circumstances. As an A-grade product, it ensures top-notch quality and stability, making it appropriate for demanding applications. Whether you are engaged in the development of portable devices, automotive displays, or industrial equipment, the AUO G043FTN01.0 serves as a reliable alternative. It combines excellent performance and durability, along with a stable supply, which helps you to efficiently adhere to your project schedules.
