Long Range Unmanned Surface Vessels ASV USV Remote Control Tow Boat
Long Range Unmanned Surface Vessels ASV USV Remote Control Tow Boat
Long Range Unmanned Surface Vessels ASV USV Remote Control Tow Boat
Long Range Unmanned Surface Vessels ASV USV Remote Control Tow Boat
Long Range Unmanned Surface Vessels ASV USV Remote Control Tow Boat
Long Range Unmanned Surface Vessels ASV USV Remote Control Tow Boat
Specifications
Brand Name :
ORCAUBOAT
Model Number :
TITAN
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
100 Units Per Month/month
Delivery Time :
4-6 Weeks
Packaging Details :
Sea-Worthy Packing
Rated load :
100kg
Hull weight (no load) :
430kg
Battery life :
8 hours
Rated storage volume :
0.45m³
Safety protection and dustproof design :
IP55
Hull material :
Aluminum alloy
Working minimum water depth :
800mm
Description

Orcauboat is committed to providing integrated solutions for the comprehensive treatment of water environment. At the application level, deep water surface high-frequency rigid demand scenarios: Committed to providing integrated solutions for intelligent (unmanned) maintenance and management of urban waters, detonating industry applications; technical level Extend the diversified applications of unmanned driving on the surface, and empower the diversified scenarios of "Smart Ship" in the water area.

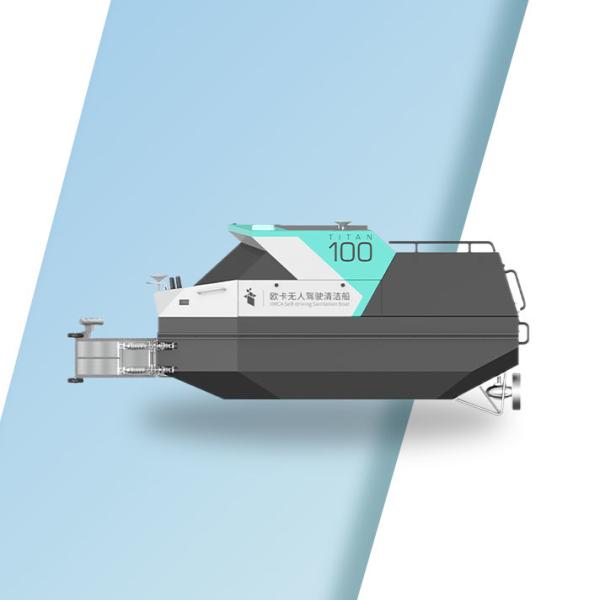

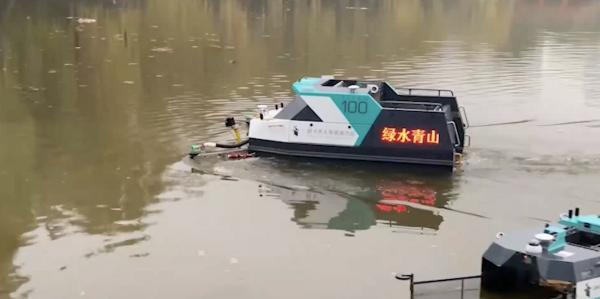

TITAN unmanned cleaning boat is a surface service robot that integrates surface garbage cleaning, water quality inspection, intelligent inspection and other functions.

Core function:

garbage cleaning, dry and wet separation, water quality detection, intelligent path planning, return to home with full load of garbage

Name Parameter

Hull size|Length, width and height/mm (extension arm not included)

Length 3150 × width 1660 × height 1480

Hull size|Length, width and height/mm (standard 1m extension arm)

Length 4030 × width 2380 × height 1480

Hull material

Aluminum alloy

Hull weight (no load)

 430kg

Rated load

 100kg

Charging time

5 hours

Battery life

8 hours

Rated storage volume

 0.45m³

Working minimum water depth

 800mm

Safety protection and dustproof design

 IP55

Cleaning speed

 1.5m/s

Dimension TITAN 100 Traditional labor Semi-automatic machinery
Maintenance area 24.7acres/boat 3.2acres/person 16.4acres/person
Length of work 12h/day (continuous charging) 6h/day 6h/day
Safety Driverless, 100% safe People + tools, high labor risk Manned driving, driving risk is high
Response efficiency 24h online response Working time response Working time response
Energy consumption Clean energy, charging at night, working during the day Manpower Gasoline energy, need to be purchased at the petrol station
Quality of work Machine Cleanup, quality maintain unity Affected by work status and attitude Affected by work status and attitude
Skill requirements Simple smart machine operation, no certificate required Skilled in using tools, skilled in ferrying boats, swimming license required Skilled in mechanical boat driving, swimming license required, crew certificate required

Product Highlights :

Multiple cleaning modes: For different water scenarios, the unmanned ship has multiple cleaning modes such as area cleaning and edge cleaning. The mobile phone APP supports independent selection and combination of cleaning modes.

Hand/Auto mode switch: The user can either use the remote control that comes with the ship to control the hull unmanned ship, or remotely operate the mobile phone APP, and the two modes can be switched.

Long Range Unmanned Surface Vessels ASV USV Remote Control Tow BoatLong Range Unmanned Surface Vessels ASV USV Remote Control Tow Boat

Configuration service:

Basic Configuration: silver metal charging cabinet.

Optional modules: water quality monitoring module, coastal flushing module, garbage weighing module.
