TITAN Bathymetric Survey Boat USV Weed Removal Boat 3.15*1.66*1.48m
TITAN Bathymetric Survey Boat USV Weed Removal Boat 3.15*1.66*1.48m
TITAN Bathymetric Survey Boat USV Weed Removal Boat 3.15*1.66*1.48m
TITAN Bathymetric Survey Boat USV Weed Removal Boat 3.15*1.66*1.48m
TITAN Bathymetric Survey Boat USV Weed Removal Boat 3.15*1.66*1.48m
TITAN Bathymetric Survey Boat USV Weed Removal Boat 3.15*1.66*1.48m
Specifications
Brand Name :
ORCAUBOAT
Model Number :
TITAN mowing
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
100 Units Per Month/month
Delivery Time :
4-6 Weeks
Packaging Details :
Sea-Worthy Packing
Hull size|Length, width and height/mm (standard 1m extension arm) :
Length 4030 × width 2380 × height 1480
Hull size|Length, width and height/mm (extension arm not included) :
Length 3150 × width 1660 × height 1480
Hull weight (no load) :
430kg
Power plant :
Electric thruster
Hull material :
Aluminum alloy
Safety protection and dustproof design :
IP55
Working minimum water depth :
800mm
Battery life :
8 hours
Description

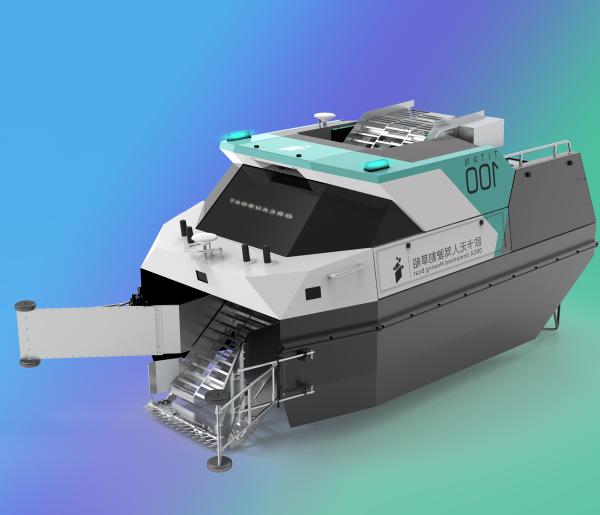

TITAN Unmanned Mowing Boat Surface Robot Weed Cutting Boat IP55

TITAN unmanned mowing boat has functions such as fully automatic waterweed harvesting, water surface cleaning, water quality inspection, etc. The main application scenarios are lakes, inland rivers and other waters.

Core functions:

waterweed harvesting, water quality monitoring, intelligent route planning, full load of garbage, and return to the sea.

Product advantages:

Dimension TITAN 100 Traditional labor Semi-automatic machinery
Maintenance area 24.7acres/boat 3.2acres/person 16.4acres/person
Length of work 16h/day 6h/day 6h/day
Safety Driverless, 100% safe People + tools, high labor risk Manned driving, driving risk is high
Response efficiency 24h online response Working time response Working time response
Energy consumption Clean energy, charging at night, working during the day Manpower Gasoline energy, need to be purchased at the petrol station
Quality of work Consistent harvest depth, no omissions Inconsistent harvest depth, affected by environmental changes Affected by work status and attitude
Skill requirements Smart machine operation, easy to use, no certificate required Skilled in using tools, skilled in ferrying boats, swimming license required Skilled in mechanical boat driving, swimming license required, crew certificate required

Response efficiency

24 hours response

Product Highlights:

1. Autonomous/manual dual mode: The user can use the remote control attached to the ship to control the hull unmanned boat, or remotely operate the mobile phone APP. You can switch between two modes freely.

2. PAD control: Original PAD tablet front-end interaction, easier to operate than mobile phones, and lighter and easier to carry than computers.

3. Multi-functional module compatibility: After the harvesting season of the aquatic plants is over, the unmanned ship can have multiple cleaning modes such as area cleaning and edge cleaning by installing the extension arm. The mobile APP supports the independent selection and combination of cleaning modes.

TITAN Bathymetric Survey Boat USV Weed Removal Boat 3.15*1.66*1.48m

Hull size|Length, width and height/mm (extension arm not included) Length 3150 × width 1660 × height 1480
Hull size|Length, width and height/mm (standard 1m extension arm) Length 4030 × width 2380 × height 1480
Hull material Aluminum alloy
Hull weight (no load) 430kg
Rated load 100kg
Charging time 5 hours
Battery life 8 hours
Rated storage volume 0.45m³
Working minimum water depth 800mm
Safety protection and dustproof design IP55

Configuration service:

Basic Configuration: silver metal charging cabinet

Optional modules: water quality monitoring module, coastal flushing module, garbage weighing module

TITAN Bathymetric Survey Boat USV Weed Removal Boat 3.15*1.66*1.48mTITAN Bathymetric Survey Boat USV Weed Removal Boat 3.15*1.66*1.48m
