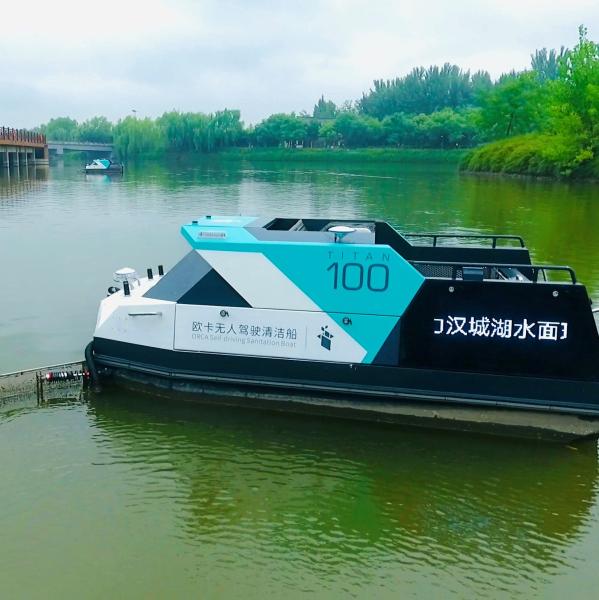

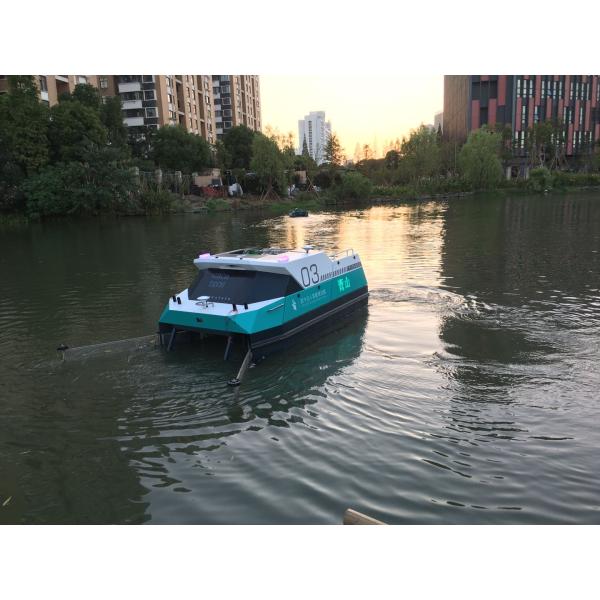

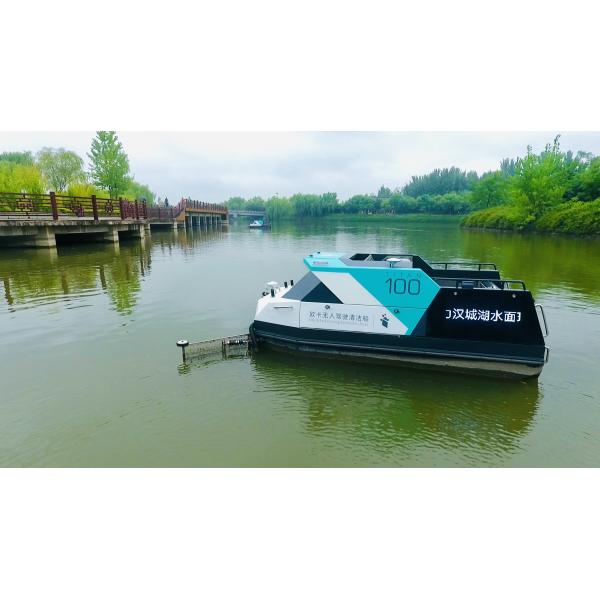

TITAN unmanned cleaning boat is a surface service robot that integrates surface garbage cleaning, water quality inspection, intelligent inspection and other functions,the main application scenarios are urban inland rivers, reservoirs, landscape lakes and other waters.

Core function: garbage cleaning, dry and wet separation, water quality detection, intelligent path planning, return to home with full load of garbage

Product Highlights

Dry and wet separation of water surface garbage: Through the garbage collection module, the garbage floating on the water can be collected into the garbage basket inside the hull to filter out the water.

0.8m Along the river bank cleaning: For cement or stone rivers/lake banks, the sweeping module along the shore can be used to clean up the rubbish near the shore and sticking to the shore.

Propaganda is everywhere: There are LED screens on both sides of the hull, and customers can use PAD to edit the displayed text in real time according to their needs.

Hand/Auto mode switch: The user can either use the remote control that comes with the ship to control the hull unmanned ship, or remotely operate the mobile phone APP, and the two modes can be switched.

Multiple cleaning modes: For different water scenarios, unmanned ships have multiple cleaning modes such as area cleaning and edge cleaning. The mobile APP supports independent selection and combination of cleaning modes.

Autonomous garbage identification: Automatic garbage identification function based on visual recognition can achieve density cleaning and intelligent maintenance of water area cleaning.

High-precision positioning: Based on RTK's high-precision positioning, unmanned ships can achieve centimeter-level water surface positioning, which can better cope with complex water scenes.

Intelligent path optimization: With the support of intelligent algorithms, the unmanned ship can plan and optimize the clean path to achieve efficient and safe operations.

Configuration service

Basic Configuration: silver metal charging cabinet

Optional modules: water quality monitoring module, coastal flushing module, garbage weighing module

FAQ

1.What type of garbage can be cleaned?

Mainly floating objects on the water surface, such as mineral water bottles and other plastic garbage, fallen leaves, etc.

2.What water quality parameters can be monitored currently?

Conventional 5 parameters (temperature, pH, turbidity, conductivity, dissolved oxygen), COD, ammonia nitrogen, chlorophyll, blue-green algae.

3. How can the monitoring data be given to us? Support raw data extraction, which can be handed over to the user for data cleaning and data analysis, or data analysis can be performed on behalf of a fee.

4.Can it be used in rainy days?

The whole ship and the electronic components inside have been waterproofed. Light rain can be used normally. If it is heavy rain, it is recommended that the ship be docked at the pier temporarily.

5.What are the maintenance costs in the later period?

The main maintenance cost is the propeller and battery (replaced every two years), the replacement cost of several thousand yuan, and other consumable parts such as propeller blades, antennas, etc. are very low.
