Long Range Autonomous Surface Vessel Boat USV SMURF with 100kg Load
Long Range Autonomous Surface Vessel Boat USV SMURF with 100kg Load
Long Range Autonomous Surface Vessel Boat USV SMURF with 100kg Load
Long Range Autonomous Surface Vessel Boat USV SMURF with 100kg Load
Long Range Autonomous Surface Vessel Boat USV SMURF with 100kg Load
Long Range Autonomous Surface Vessel Boat USV SMURF with 100kg Load
Specifications
Brand Name :
ORCAUBOAT
Model Number :
SMURF
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
100 Units Per Month/month
Delivery Time :
4-6 Weeks
Packaging Details :
Sea-Worthy Packing
Certification :
CE
Hull size (length, width and height/mm) :
2510*1560*1050
Maintain waters :
6.6-11.5 acres
Hull material :
Aluminum alloy
Hull weight :
115KG
Rated load :
50KG
Battery life :
6-8 hours
Charging time :
6 hours（5%-90%)
Speed of work :
1m/s
Description

Product Introduction

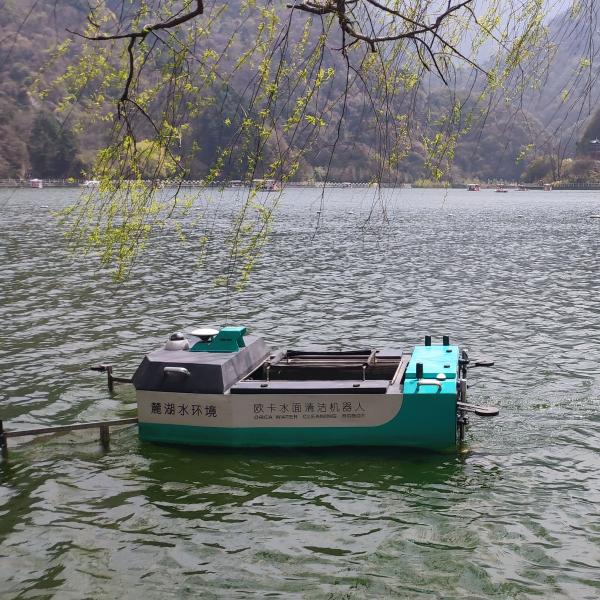

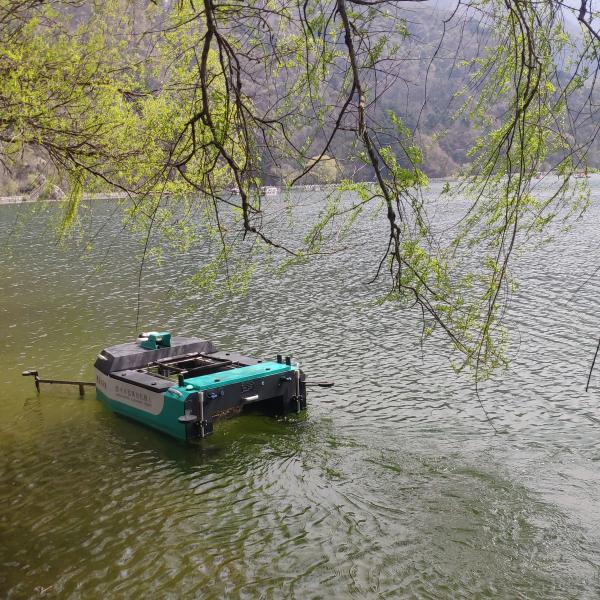

SMURF20 is an unmanned cleaning boat that integrates surface garbage cleaning, intelligent inspection, and data monitoring. The main application scenarios are urban inland rivers, landscape lakes, reservoirs and other water areas.

Four core functions:

unmanned cleaning, daily inspection, data monitoring, and smart management

Product Highlights:

  1. Multiple functions: Mainly cleaning function, standardized water quality, water depth, inspection and detection multiple modules, which can be quickly matched to meet the needs of all-weather and all-scene maintenance in waters;
  2. Image Identification: Accumulatively trained more than 100 kinds of characteristic targets to achieve accurate recognition of various targets such as surface garbage, people falling into the water, and shoreline pedestrians.
  3. PAD control: The original PAD tablet front-end interaction is easier to operate than a mobile phone, and lighter and easier to carry than a computer.

  4. Autonomous and precise obstacle avoidance: Relying on the millimeter-wave radar on board, the unmanned ship can accurately avoid obstacles, and can perform scene modeling of the operating water area.

Long Range Autonomous Surface Vessel Boat USV SMURF with 100kg Load

Value-added module

1 COD detection module 1
2 Ammonia nitrogen detection module 1
3 Blue-green algae detection module 1
4 Chlorophyll detection module 1
5 Water depth detection module 1
6 Smart wireless propaganda module 1

Basic configuration:

Sequence

Names and specifications

Remark

Quantity
1

Charging cabinet

Standard

 1
2

Pad control panel

Standard

 1
3

Wireless shore-based

Optional

 1
4

Show the big screen

Optional

 1

Category item Smurf 20 Traditional cleaning Semi-automatic machiner
Maintenance area 11.5acres/person 3.2acres/person 16.4acres/person*boat
Length of work 16h/day (continuous charging) 6h/day 6h/day
Safety Driverless, 100% safe People + tools, high labor risk Manned driving, driving risk is high
Response efficiency 24h online response Working time response Working time response
Energy consumption Clean energy, charging at night, working during the day Manpower Gasoline energy, need to be purchased at the petrol station
Skill requirements Smart machine operation, easy to use, no certificate required Skilled in using tools, skilled in ferrying boats, swimming license required Skilled in mechanical boat driving, swimming license and crew certificate are required
Quality of work Machine Cleanup, quality maintain unity Affected by work status and attitude Affected by work status and attitude
