OrcaUboat is committed to providing integrated solutions for the comprehensive treatment of water environment. At the application level, deep water surface high-frequency rigid demand scenarios: Committed to providing integrated solutions for intelligent (unmanned) maintenance and management of urban waters, detonating industry applications; technical level Extend the diversified applications of unmanned driving on the surface, and empower the diversified scenarios of "Smart Ship" in the water area.

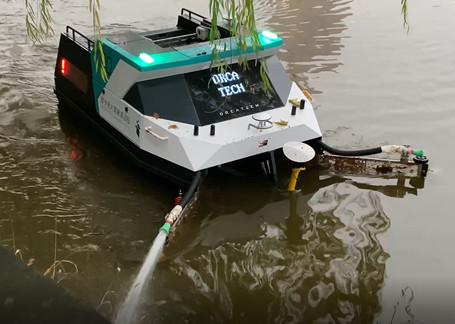

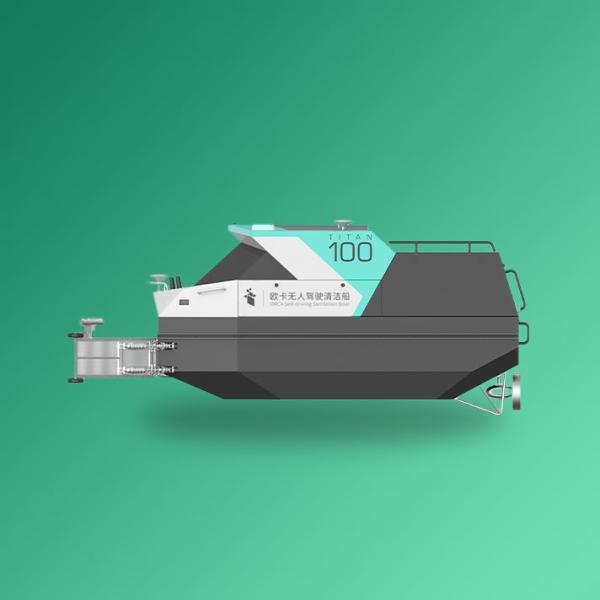

TITAN unmanned cleaning boat is a surface service robot that integrates surface garbage cleaning, water quality inspection, intelligent inspection and other functions,the main application scenarios are urban inland rivers, reservoirs, landscape lakes and other waters.
Water area intelligent maintenance direction-focusing on the three smart scenarios of water surface sanitation, water area data collection, and water area intelligent inspection, launched the artificial intelligence water cloud analysis platform and two series of unmanned cleaning boats SMURF and TITAN, which are intelligent (unmanned ) Maintenance and governance provide integrated solutions, and are committed to promoting the maintenance of standardized robots in water areas and water area governance;
Core functions:
garbage cleaning, separation of dry and wet, water quality detection, intelligent path planning, full load of garbage to go home.
Product parameter:
Name | Parameter |
Hull size|Length, width and height/mm (extension arm not included) | Length 3150 × width 1660 × height 1480 |
Hull size|Length, width and height/mm (standard 1m extension arm) | Length 4030 × width 2380 × height 1480 |
Hull material | Aluminum alloy |
Hull weight (no load) | 430kg |
Rated load | 100kg |
Charging time | 5 hours |
Battery life | 8 hours |
Rated storage volume | 0.45m³ |
Working minimum water depth | 800mm |
Safety protection and dustproof design | IP55 |
Cleaning speed | 1.5m/s |
Dimension | TITAN 100 | Traditional labor | Semi-automatic machinery |
Maintenance area | 24.7acres/boat | 3.2acres/person | 16.4acres/person |
Length of work | 12h/day (continuous charging) | 6h/day | 6h/day |
Safety | Driverless, 100% safe | People + tools, high labor risk | Manned driving, driving risk is high |
Response efficiency | 24h online response | Working time response | Working time response |
Energy consumption | Clean energy, charging at night, working during the day | Manpower | Gasoline energy, need to be purchased at the petrol station |
Quality of work | Machine Cleanup, quality maintain unity | Affected by work status and attitude | Affected by work status and attitude |
Skill requirements | Simple smart machine operation, no certificate requirements | Skilled in using tools, skilled in ferrying boats, swimming license required | Skilled in mechanical boat driving, swimming license required, crew certificate required |
Product Highlights :
Dry and wet separation of water surface garbage: Through the garbage collection module, the garbage floating on the water can be collected into the garbage basket inside the hull to filter out the water.
0.8m Along the river bank cleaning: For cement or stone rivers/lake banks, the sweeping module along the shore can be used to clean up the rubbish near the shore and sticking to the shore.
Multiple cleaning modes: For different water scenarios, unmanned ships have multiple cleaning modes such as area cleaning and edge cleaning. The mobile APP supports independent selection and combination of cleaning modes.
Multiple functions: Mainly cleaning function, standardized water quality, water depth, inspection and detection multiple modules, which can be quickly matched to meet the needs of all-weather and all-scene maintenance in water.
Configuration service:
Basic Configuration: silver metal charging cabinet.
Optional modules: water quality monitoring module, coastal flushing module, garbage weighing module.
