50KG Rated Load Unmanned River Cleaning Boat Mounted Millimeter Wave Radar
50KG Rated Load Unmanned River Cleaning Boat Mounted Millimeter Wave Radar
50KG Rated Load Unmanned River Cleaning Boat Mounted Millimeter Wave Radar
50KG Rated Load Unmanned River Cleaning Boat Mounted Millimeter Wave Radar
Specifications
Brand Name :
ORCAUBOAT
Model Number :
SMURF
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
100 Units Per Month/month
Delivery Time :
4-6 Weeks
Packaging Details :
Sea-Worthy Packing
Certification :
CE
Hull size (length, width and height/mm) :
2750*1660*1050
Hull material :
Aluminum alloy
Hull weight :
130KG
Rated load :
50KG
Battery life :
8 hours
Charging time :
6 hours（5%-90%)
Speed of work :
1.2m/s
Maximum speed :
2.2m/s
Depth of immersion :
470mm
Maintain waters :
6.6-11.5 acres
Safety protection and dustproof design :
The whole ship is waterproof and splash-proof
Power plant :
Electric thruster
Description

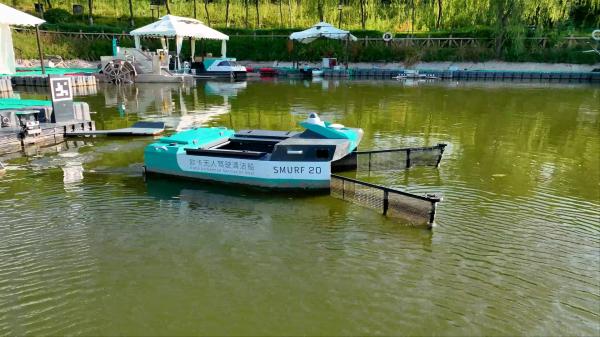

SMURF Unmanned Cleaning Boat Surface Service Robot

Product Introduction:

SMURF is an unmanned cleaning boat that integrates surface garbage cleaning, intelligent inspection, and data monitoring.

Four core functions:

unmanned cleaning, daily inspection, data monitoring, and smart management

Product Highlights:

  1. Autonomous and precise obstacle avoidance: Relying on the mounted millimeter-wave radar, the unmanned ship can accurately avoid obstacles, and can perform scene modeling of operating waters.
  2. The latest generation of flexible extension arm: The latest generation of flexible extension arm is added, which can realize zero-distance coastal cleaning, realize zero-dead-angle cleaning of waters, and clean waters.
  3. Bluetooth smart audio: It is equipped with a remote Bluetooth smart audio, which can remotely realize accurate compilation of shouting voices, and intelligent inspection is more convenient.
  4. Multi-stage operation mode: Set multi-stage operation mode, the operation speed is further improved, the maximum operation speed can reach 2m/s, and the cleaning efficiency is further improved.

50KG Rated Load Unmanned River Cleaning Boat Mounted Millimeter Wave Radar

Category item Smurf 20 Traditional cleaning Semi-automatic machiner
Maintenance area 11.5acres/person 3.2acres/person 16.4acres/person*boat
Length of work 16h/day (continuous charging) 6h/day 6h/day
Safety Driverless, 100% safe People + tools, high labor risk Manned driving, driving risk is high
Response efficiency 24h online response Working time response Working time response
Energy consumption Clean energy, charging at night, working during the day Manpower Gasoline energy, need to be purchased at the petrol station
Skill requirements Smart machine operation, easy to use, no certificate required Skilled in using tools, skilled in ferrying boats, swimming license required Skilled in mechanical boat driving, swimming license and crew certificate are required
Quality of work Machine Cleanup, quality maintain unity Affected by work status and attitude Affected by work status and attitude

50KG Rated Load Unmanned River Cleaning Boat Mounted Millimeter Wave Radar

Product parameters:

Hull size (length, width and height/mm) 2912*1773*1030
Hull material Aluminum alloy
Hull weight 140KG
Rated load 50KG
Battery life 6-8 hours
Charging time 6 hours(5%-90%)
Depth of immersion 470mm
Maintain waters 6.6-11.5 acres
Safety protection and dustproof design The whole ship is waterproof and splash-proof
Power plant Electric thruster
Speed of work 1.2m/s
Maximum speed 2.2m/s

Basic configuration:

Sequence

Names and specifications

Remark

Quantity
1

Charging cabinet

Standard

 1
2

Pad control panel

Standard

 1
3

Wireless shore-based

Optional

 1
4

Show the big screen

Optional

 1

Value-added module:

1 COD detection module 1
2 Ammonia nitrogen detection module 1
3 Blue-green algae detection module 1
4 Chlorophyll detection module 1
5 Water depth detection module 1
6 Smart wireless propaganda module 1

FAQ:

  • What can your unmanned ship do?

    (1) The water area is automatically cleaned, and the unmanned ship can automatically clean the floating garbage on the water surface according to the task settings. Similar to the sweeping robot at home, the unmanned ship is a cleaning robot on the water surface;

    (2) By carrying water quality sensors, real-time monitoring and return of water quality data, information management of water areas;

    (3) Based on the exclusive AI visual recognition algorithm for waters, it can automatically conduct video inspections of waters and shorelines, and alert the staff in time when illegal fishing or drowning is detected.
