Double Vessel Netting Unmanned River Cleaning Boat Autonomous Obstacle Avoidance
Double Vessel Netting Unmanned River Cleaning Boat Autonomous Obstacle Avoidance
Double Vessel Netting Unmanned River Cleaning Boat Autonomous Obstacle Avoidance
Double Vessel Netting Unmanned River Cleaning Boat Autonomous Obstacle Avoidance
Specifications
Brand Name :
ORCAUBOAT
Model Number :
SMURF
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
100 Units Per Month/month
Delivery Time :
4-6 Weeks
Packaging Details :
Sea-Worthy Packing
Certification :
CE
Hull size (length, width and height/mm) :
2750*1660*1050
Hull material :
Aluminum alloy
Hull weight :
115KG
Rated load :
50KG
Battery life :
8 hours
Charging time :
6 hours（5%-90%)
Speed of work :
1.4m/s
Maximum speed :
2m/s
Depth of immersion :
470mm
Maintain waters :
6.6-11.5 acres
Safety protection and dustproof design :
The whole ship is waterproof and splash-proof
Power plant :
Electric thruster
Description

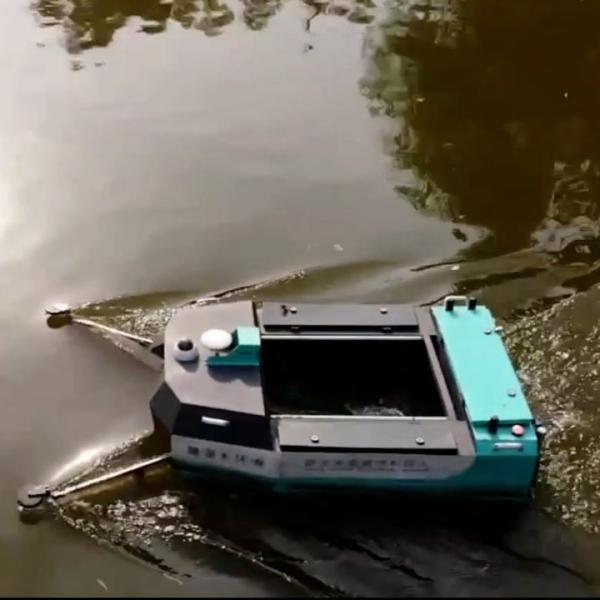

SMURF Unmanned Cleaning Boat Surface Service Robot

Product Introduction:

SMURF is an unmanned cleaning boat that integrates surface garbage cleaning, intelligent inspection, and data monitoring.

Product Highlights:

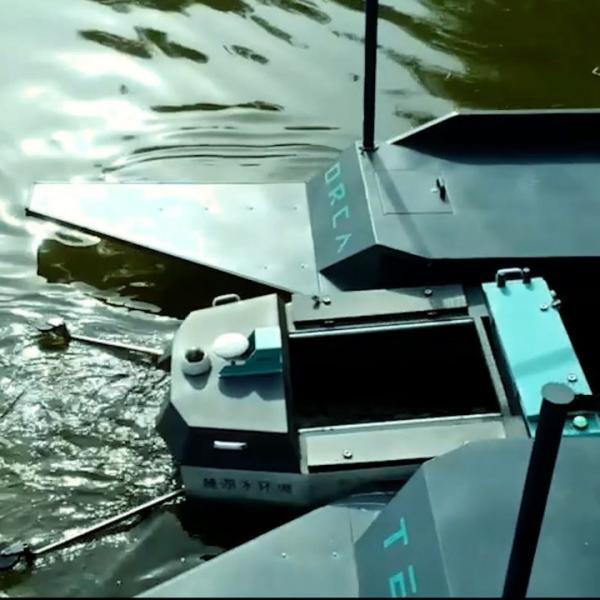

  1. Double-vessel netting technology: It can support the collaborative work of double-vessels, and is equipped with a double-vessel netting cleaning work plan to increase the scope of water cleaning and greatly improve the efficiency of water surface cleaning.
  2. Intelligent path optimization: With the support of intelligent algorithms, the unmanned ship can plan and optimize the clean path to achieve efficient and safe operations.
  3. High-precision positioning: Based on RTK's high-precision positioning, unmanned ships can achieve centimeter-level water surface positioning, which can better cope with complex water scenes.
  4. Autonomous and precise obstacle avoidance: Relying on the mounted millimeter-wave radar, the unmanned ship can accurately avoid obstacles, and can perform scene modeling of operating waters.

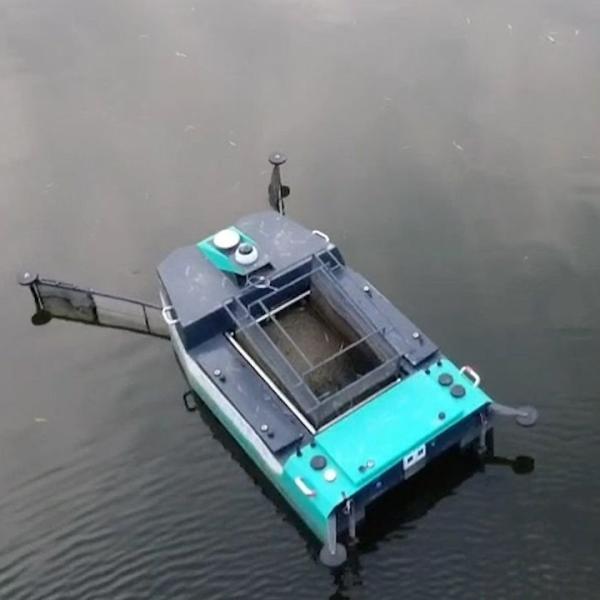

Double Vessel Netting Unmanned River Cleaning Boat Autonomous Obstacle Avoidance

Category item Smurf 20 Traditional cleaning Semi-automatic machiner
Maintenance area 11.5acres/person 3.2acres/person 16.4acres/person*boat
Length of work 16h/day (continuous charging) 6h/day 6h/day
Safety Driverless, 100% safe People + tools, high labor risk Manned driving, driving risk is high
Response efficiency 24h online response Working time response Working time response
Energy consumption Clean energy, charging at night, working during the day Manpower Gasoline energy, need to be purchased at the petrol station
Skill requirements Smart machine operation, easy to use, no certificate required Skilled in using tools, skilled in ferrying boats, swimming license required Skilled in mechanical boat driving, swimming license and crew certificate are required
Quality of work Machine Cleanup, quality maintain unity Affected by work status and attitude Affected by work status and attitude

Double Vessel Netting Unmanned River Cleaning Boat Autonomous Obstacle Avoidance

Product parameters:

Hull size (length, width and height/mm) 2750*1660*1050
Hull material Aluminum alloy
Hull weight 115KG
Rated load 50KG
Battery life 6-8 hours
Charging time 6 hours(5%-90%)
Depth of immersion 470mm
Maintain waters 6.6-11.5 acres
Safety protection and dustproof design The whole ship is waterproof and splash-proof
Power plant Electric thruster
Speed of work 1.4m/s
Maximum speed 2m/s

Basic configuration:

Sequence

Names and specifications

Remark

Quantity
1

Charging cabinet

Standard

 1
2

Pad control panel

Standard

 1
3

Wireless shore-based

Optional

 1
4

Show the big screen

Optional

 1

Value-added module:

1 COD detection module 1
2 Ammonia nitrogen detection module 1
3 Blue-green algae detection module 1
4 Chlorophyll detection module 1
5 Water depth detection module 1
6 Smart wireless propaganda module 1

FAQ:

  • A: What can your unmanned ship do?
  • Q: The water area is automatically cleaned, and the unmanned ship can automatically clean the floating garbage on the water surface according to the task settings. Similar to the sweeping robot at home, the unmanned ship is a cleaning robot on the water surface.

  • A: What are the maintenance costs in the later period?
  • Q: The main maintenance costs are the propellers and batteries (replaced every two years), the replacement cost of several thousand yuan, and the cost of other consumables such as propeller blades, antennas, etc. are very low.

  • A: Can you work at night?
  • Q: It works fine at night and the boat camera supports night vision.
