Multipurpose Aluminum Alloy River Cleaning Boat 50KG Rated Load 2750 X 1660 X 1050
Multipurpose Aluminum Alloy River Cleaning Boat 50KG Rated Load 2750 X 1660 X 1050
Multipurpose Aluminum Alloy River Cleaning Boat 50KG Rated Load 2750 X 1660 X 1050
Multipurpose Aluminum Alloy River Cleaning Boat 50KG Rated Load 2750 X 1660 X 1050
Specifications
Brand Name :
ORCAUBOAT
Model Number :
SMURF
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
100 Units Per Month/month
Delivery Time :
4-6 Weeks
Packaging Details :
Sea-Worthy Packing
Certification :
CE
Hull size (length, width and height/mm) :
2750*1660*1050
Hull material :
Aluminum alloy
Hull weight :
115KG
Rated load :
50KG
Battery life :
8 hours
Charging time :
6 hours（5%-90%)
Speed of work :
1.4m/s
Maximum speed :
2m/s
Depth of immersion :
470mm
Maintain waters :
6.6-11.5 acres
Safety protection and dustproof design :
The whole ship is waterproof and splash-proof
Power plant :
Electric thruster
Description

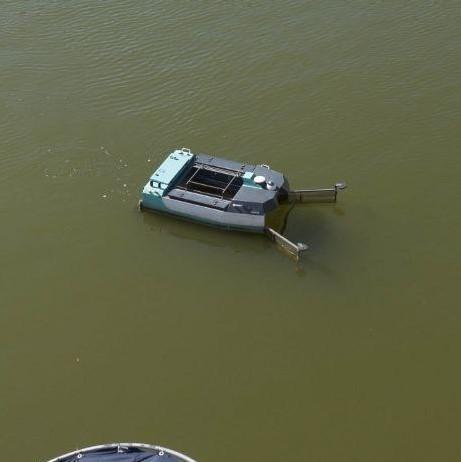

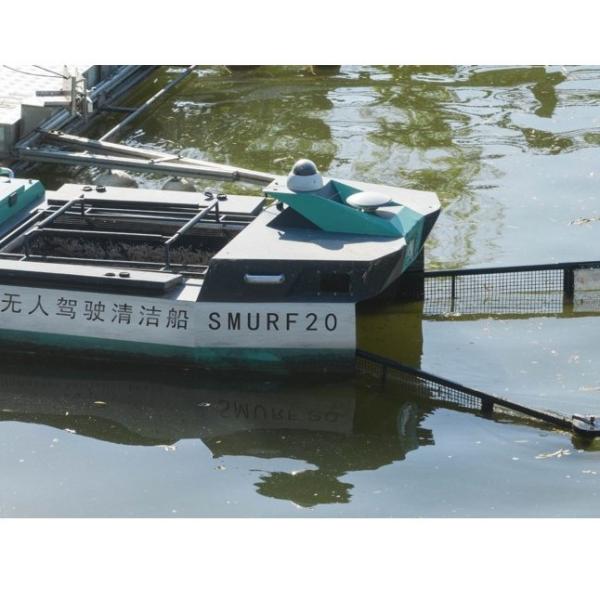

SMURF Unmanned Cleaning Boat Surface Service Robot

Product Introduction:

SMURF is a water unmanned cleaning boat that integrates surface garbage cleaning, intelligent inspection, and data monitoring. It is mainly used in urban inland rivers, landscape lakes, reservoirs and other waters.

Product Highlights:

  1. Diverse functions: The cleaning function is the main function, and the standardized water quality, water depth, inspection and detection modules can be quickly matched to meet the all-weather and all-scenario maintenance needs of the water area.
  2. Automatic lifting of garbage baskets: The garbage baskets are equipped with their own lifting function, which can be set to lift the garbage baskets with one click, making it more convenient to extract the garbage baskets.
  3. PAD control: Use PAD to control the boat, which is more powerful and intuitive than mobile phone operation, and more convenient than computer.
  4. Radar Slam: The use of millimeter-wave radar SLAM to build maps can free the ship from the constraints of GPS signals, and can clean along the 0.3m water area.

Multipurpose Aluminum Alloy River Cleaning Boat 50KG Rated Load 2750 X 1660 X 1050

Category item Smurf 20 Traditional cleaning Semi-automatic machiner
Maintenance area 11.5acres/person 3.2acres/person 16.4acres/person*boat
Length of work 16h/day (continuous charging) 6h/day 6h/day
Safety Driverless, 100% safe People + tools, high labor risk Manned driving, driving risk is high
Response efficiency 24h online response Working time response Working time response
Energy consumption Clean energy, charging at night, working during the day Manpower Gasoline energy, need to be purchased at the petrol station
Skill requirements Smart machine operation, easy to use, no certificate required Skilled in using tools, skilled in ferrying boats, swimming license required Skilled in mechanical boat driving, swimming license and crew certificate are required
Quality of work Machine Cleanup, quality maintain unity Affected by work status and attitude Affected by work status and attitude

Multipurpose Aluminum Alloy River Cleaning Boat 50KG Rated Load 2750 X 1660 X 1050

Product parameters:

Hull size (length, width and height/mm) 2750*1660*1050
Hull material Aluminum alloy
Hull weight 115KG
Rated load 50KG
Battery life 6-8 hours
Charging time 6 hours(5%-90%)
Depth of immersion 470mm
Maintain waters 6.6-11.5 acres
Safety protection and dustproof design The whole ship is waterproof and splash-proof
Power plant Electric thruster
Speed of work 1.4m/s
Maximum speed 2m/s

Basic configuration:

Sequence

Names and specifications

Remark

Quantity
1

Charging cabinet

Standard

 1
2

Pad control panel

Standard

 1
3

Wireless shore-based

Optional

 1
4

Show the big screen

Optional

 1

Value-added module:

1 COD detection module 1
2 Ammonia nitrogen detection module 1
3 Blue-green algae detection module 1
4 Chlorophyll detection module 1
5 Water depth detection module 1
6 Smart wireless propaganda module 1

FAQ:

  • A: What are the maintenance costs in the later period?
  • Q: The main maintenance costs are the propellers and batteries (replaced every two years), the replacement cost of several thousand yuan, and the cost of other consumables such as propeller blades, antennas, etc. are very low.

  • A: What can your unmanned ship do?
  • Q: Based on the exclusive AI visual recognition algorithm for waters, it can automatically conduct video inspections of waters and shorelines, and alert the staff in time when illegal fishing or drowning is detected.

  • A: Do you have a certificate?
  • Q: The whole ship has CE certification.
