Electric Thruster Unmanned River Cleaning Boat With Automatic Lifting Garbage Baskets SMURF
Electric Thruster Unmanned River Cleaning Boat With Automatic Lifting Garbage Baskets SMURF
Electric Thruster Unmanned River Cleaning Boat With Automatic Lifting Garbage Baskets SMURF
Electric Thruster Unmanned River Cleaning Boat With Automatic Lifting Garbage Baskets SMURF
Specifications
Brand Name :
ORCAUBOAT
Model Number :
SMURF
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
100 Units Per Month/month
Delivery Time :
4-6 Weeks
Packaging Details :
Sea-Worthy Packing
Certification :
CE
Hull size (length, width and height/mm) :
2750*1660*1050
Hull material :
Aluminum alloy
Hull weight :
115KG
Rated load :
50KG
Battery life :
8 hours
Charging time :
6 hours（5%-90%)
Speed of work :
1.4m/s
Maximum speed :
2m/s
Depth of immersion :
470mm
Maintain waters :
6.6-11.5 acres
Safety protection and dustproof design :
The whole ship is waterproof and splash-proof
Power plant :
Electric thruster
Description

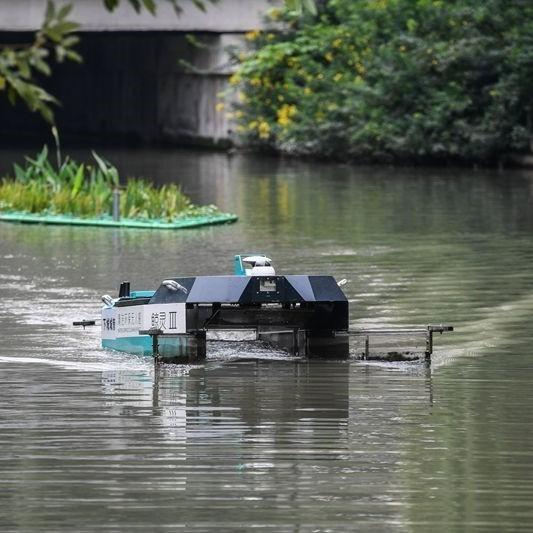

SMURF Unmanned Cleaning Boat Surface Service Robot

Product Introduction:

SMURF is an unmanned cleaning boat that integrates surface garbage cleaning, intelligent inspection, and data monitoring. The main application scenarios are urban inland rivers, landscape lakes, reservoirs and other waters.

Product Highlights:

  1. The latest generation battery system: using the latest BYD batteries + LG imported batteries, the battery life can reach 8 hours, and the work of the boat is safer.
  2. Autonomous Precise Obstacle Avoidance: Using the millimeter wave radar + binocular vision positioning scheme, the unmanned ship can achieve precise obstacle avoidance during operation, and at the same time, it can conduct scene modeling for the working waters.
  3. Automatic lifting of garbage baskets: The automatic lifting function of garbage baskets has been added, which can lift the garbage baskets with one button, and adjust the different states of the garbage baskets according to the working state, further improving the cleaning efficiency and running speed.
  4. Image recognition: Equipped with a water surface floating object recognition system, which can accurately identify multiple targets such as floating garbage on the water surface, drowning personnel, and pedestrians along the coast.

Electric Thruster Unmanned River Cleaning Boat With Automatic Lifting Garbage Baskets SMURF

Category item Smurf 20 Traditional cleaning Semi-automatic machiner
Maintenance area 11.5acres/person 3.2acres/person 16.4acres/person*boat
Length of work 16h/day (continuous charging) 6h/day 6h/day
Safety Driverless, 100% safe People + tools, high labor risk Manned driving, driving risk is high
Response efficiency 24h online response Working time response Working time response
Energy consumption Clean energy, charging at night, working during the day Manpower Gasoline energy, need to be purchased at the petrol station
Skill requirements Smart machine operation, easy to use, no certificate required Skilled in using tools, skilled in ferrying boats, swimming license required Skilled in mechanical boat driving, swimming license and crew certificate are required
Quality of work Machine Cleanup, quality maintain unity Affected by work status and attitude Affected by work status and attitude

Electric Thruster Unmanned River Cleaning Boat With Automatic Lifting Garbage Baskets SMURF

Product parameters:

Hull size (length, width and height/mm) 2750*1660*1050
Hull material Aluminum alloy
Hull weight 115KG
Rated load 50KG
Battery life 6-8 hours
Charging time 6 hours(5%-90%)
Depth of immersion 470mm
Maintain waters 6.6-11.5 acres
Safety protection and dustproof design The whole ship is waterproof and splash-proof
Power plant Electric thruster
Speed of work 1.4m/s
Maximum speed 2m/s

Basic configuration:

Sequence

Names and specifications

Remark

Quantity
1

Charging cabinet

Standard

 1
2

Pad control panel

Standard

 1
3

Wireless shore-based

Optional

 1
4

Show the big screen

Optional

 1

Value-added module:

1 COD detection module 1
2 Ammonia nitrogen detection module 1
3 Blue-green algae detection module 1
4 Chlorophyll detection module 1
5 Water depth detection module 1
6 Smart wireless propaganda module 1

FAQ:

  • A:How many years will this boat last?
  • Q:The design life of the whole ship is 5 years

  • A:Do you have a certificate?
  • Q:The whole ship has the CE certification.

  • A:What are the maintenance costs in the later period?
  • Q:The main maintenance costs are the propellers and batteries (replaced every two years), the replacement cost of several thousand yuan, and the cost of other consumables such as propeller blades, antennas, etc. are very low.
