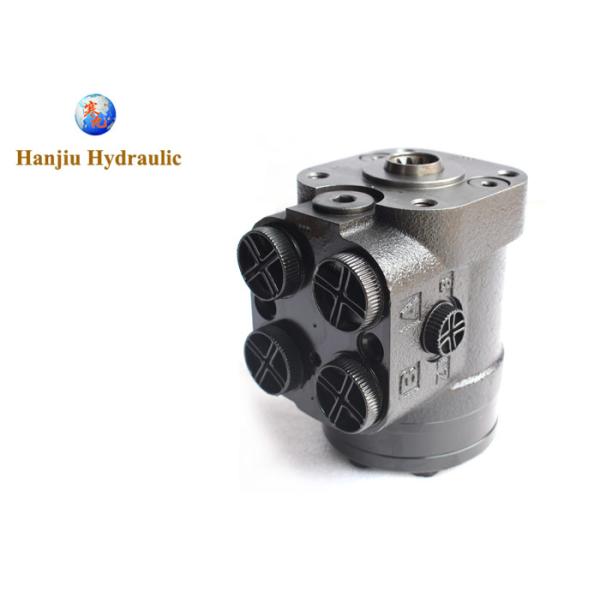

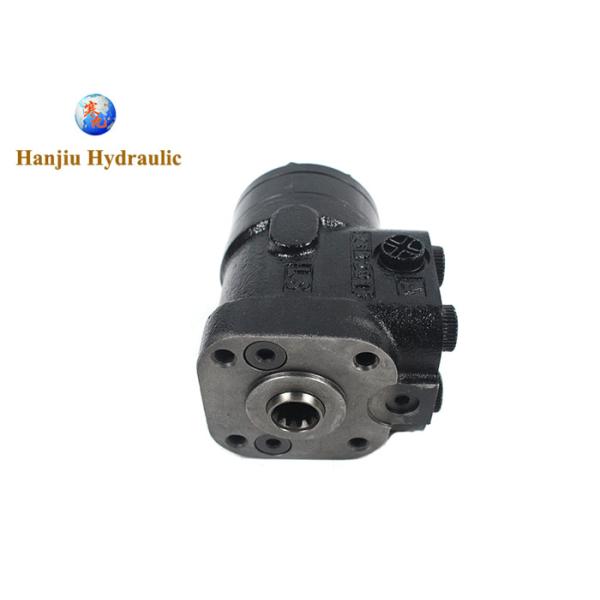

349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
Specifications
Brand Name :
HANJIU
Model Number :
101s
Certification :
CE
Place of Origin :
CHINA
MOQ :
50 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Product Name :
Hydraulic Steering pump valve
Oil port :
G1/2,SAE ports
Quality :
Grade AAA
Material :
cast iron
Applications :
Cat 3496093
warrty :
12 months
Description

349-6093 Pump Assembly-Metering Hydraulic steering units for wheel loader

  • Product Name:Hydraulic Motor
  • Part Number:349-6093 3496093
  • Application: Compatible with CAT 962M Z 962 980 982 966H 962H 966L 986H 966 950H 972H 950K 962L 962K 950M 950 950L 962M 972 972L 980L 950M Z 966 GC WHEEL LOADER IT62H INTEGRATED TOOLCARRIER TR16-C7.1 TRANSMISSION

Part number 101S series 349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
Description eaton 200-0740-002
Category STEERING UNITS
Sub-category Carterpillar STEERING UNITS AND PARTS
Manufacturer HANJIU
Weight 5.9kgs

Parameters Series
101S-*-***-**-*
Function code 1,2,4 1,4
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40
Max.input pressure(Mpa) 17.5
Relief Valve Pressure Settings ( MPa) 06,07,08,10,12,14,15,16,17.5
Shock Valve Pressure Settings ( MPa) 12,13,14,16,18,20,21,22,23.5
Max.cont.back pressure 2.5
Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176

349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader

349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader

349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader

other types can be made

211-1001-002
211-1002-002
211-1003-002
211-1004-002
211-1005-002
211-1006-002
211-1007-002
211-1008-002
211-1009-002
211-1010-002
211-1011-002
211-1012-002
211-1015-002
211-1016-002
263-1032-052
263-1032-072
263-1097-082
263-1099-002
263-1104-002
263-1105-002
263-1161-002
263-1163-002
263-1166-002

349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader
