hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor
hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor
hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor
hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor
hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor
hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor
hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor
hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor
Specifications
Brand Name :
HANJIU
Model Number :
BMT315
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
20 Sets
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100,000 Sets per year
Packaging Details :
Carton Packing, and finally with pallet or wooden box
Categories :
Hydraulic Heavy Motor
Name :
bmt315
Max.output :
cont.34.9kw/int.40kw
max torque :
cont.950N.m/int.1140N.m
Flange :
square flange
Shaft :
tapered shaft
Description

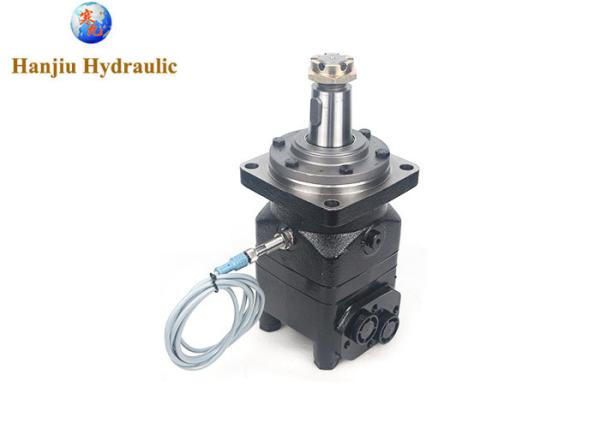

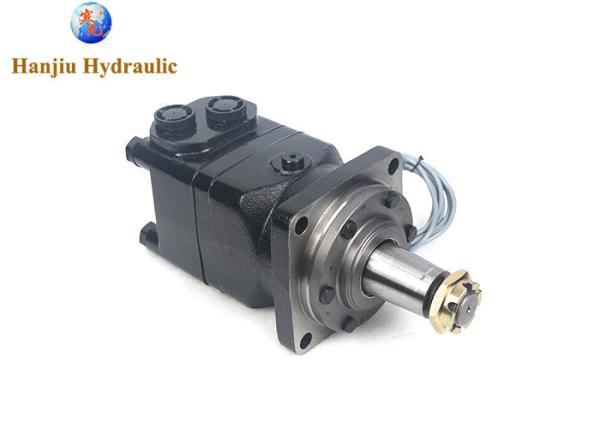

hydraulic orbital motor M+S motor MT315K-RS,315cc tapered shaft motor with speed sensor


Details


  • Output volume (cc/rev): 315cc
  • Shaft: ø45 tapered 1:10, Parallel key B12x8x28 DIN6885
  • max r.p.m.: 380
  • Torque max. (Nm): 950/1140
  • Power max. (kW): 30
  • Pressure difference (bar): 180
  • Inlet pressure (bar): 280
  • Volume flow max. (l/min): 125
  • Engine version: with non-return valves
  • Connection: G 3/4
  • Leakage oil connection: G 1/4


Main Specifications:


Type BMT
160		 BMT
200		 BMT
230		 BMT
250		 BMT
315		 BMT
400		 BMT
500		 BMT
630		 BMT
800
displacement (cm3/rev. ) 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed
(rpm)		 cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N.m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (KW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max.pressure drop (MPa) cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) rated 80 100 100 100 100 100 100 100 100
cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet
pressure (Mpa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25


hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor


hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor

hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor

Application:

Conveyors
Metal working machines
Road building machines
Mining machinery
Food industries
Agricultural machines
Special vehicles
Plastic and rubber machinery etc.


hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor


As a professional manufacturer in the field of hydraulic transmission in China, HANJIU is committed to providing customers all over the world with a complete range of orbital motor products with reliable performance and wide adaptability by virtue of its strong technical strength and mature production technology.
