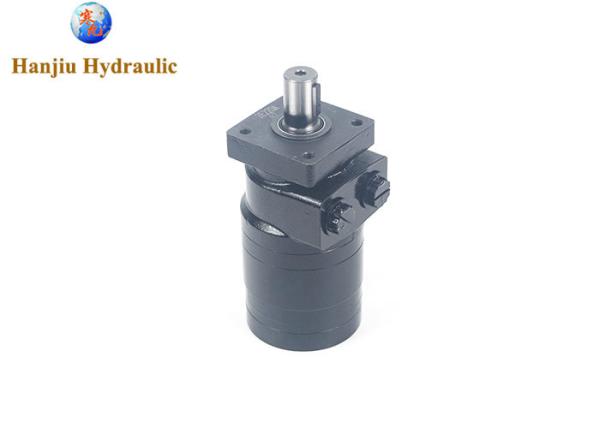

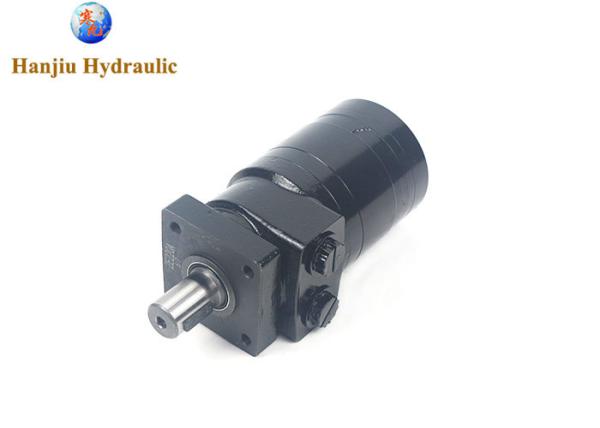

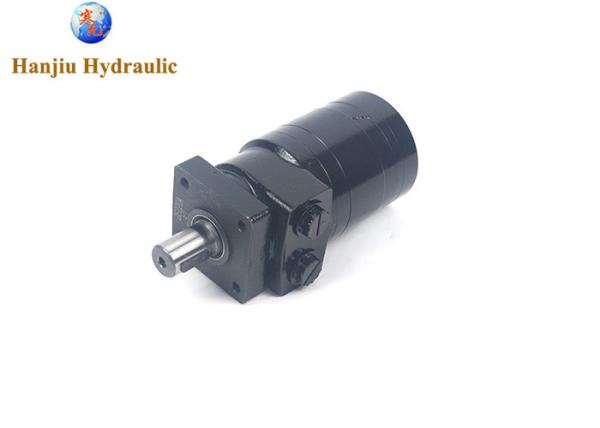

BME2 Series Geroler orbital motors, 200cc 4 bolts square flange with woodruff key shaft for agricultural machines

HANJIU Technology produce the hydraulic motor BME2 series torqmotor used on agricultural machines

Details as below:

type code:BME2

displacement:200cc

flange:4-3/8-16 Square- flange,Pilot Ø44.4×2.54

port:7/8-14 SAE

shaft:Cylindrical Shaft Ø25.4, Woodruff key Ø25.4×6.35

Main Specifications:

There are many different types of Orbital Motors, and the specific type of orbital motor to be selected needs to be analyzed in relation to the requirements of the use. To summarize, the following factors should be considered when selecting an orbital motor:

1.the need for motor torque size, of course, first to determine the system pressure, hydraulic motor torque output and system pressure has a direct relationship.

2.the need for motor speed

3.According to the motor connection form to consider the back pressure of the motor, the tandem system in particular, the main motor back pressure.

4.according to the motor system to consider the size of the motor back pressure, a lot of agricultural machinery auxiliary motor back pressure up to 60bar.

5.pay special attention to the motor can withstand the back pressure and motor output speed is directly related to the motor output speed, the higher the motor output speed, can withstand the back pressure is smaller, please see the manufacturer's samples.

6.hydraulic motor installation requirements and volume requirements, determine the shell and output shaft.

7.Choose the commonly used models, so that the delivery time and price has the advantage.

Understanding types of Orbital Motors can help users efficiently shop for products, if you want to learn more about the expertise or want to buy related products, welcome to visit our official website for browsing.
