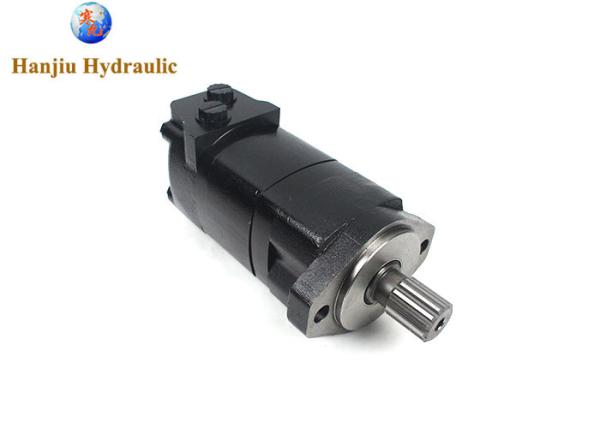

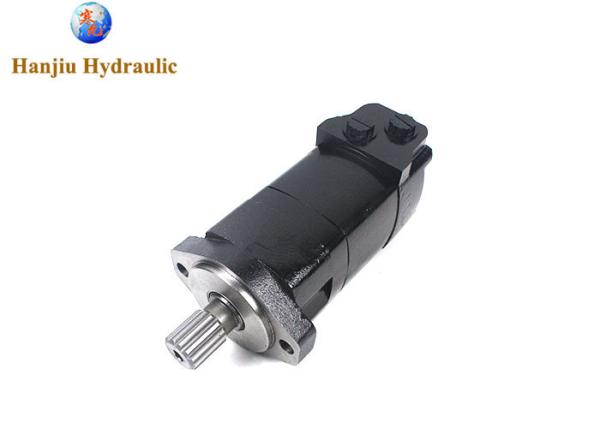

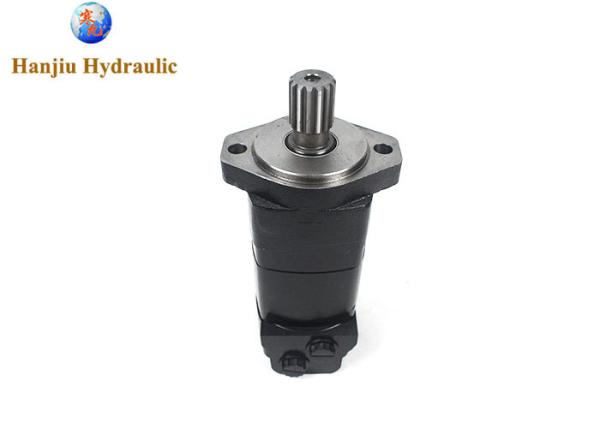

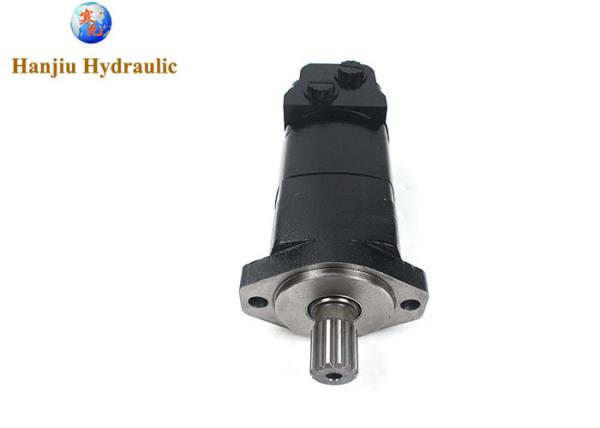

Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor
Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor
Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor
Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor
Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor
Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor
Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor
Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor
Specifications
Brand Name :
HANJIU
Model Number :
BMK2-315
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
90 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Type :
Low speed high torque motor
Material :
Cast iron
Displacement :
315ml/r
Flange :
2 Bolt SAE A Flange
Port size :
Manifold Ports
Drain line :
7/16-20UNF
Speed :
246 - 365 rpm
Torque :
765 - 885 nm
Description

Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor


Hanjiu technology produce BMK2 series hydraulic disc motors, matching Eaton Charlynn 2000 Motor

which are used on sugarcane harvesters, the same specification ,same performance, but in a cost effective,

to cut your costs down, optimize your supply chain


Quick review:

Model No.:CB11480558 AXT13783


type BMK2 MOTOR eaton 2000 series motor
speed 385 - 577 rpm
torque 540 - 665 nm
mounting
2 Bolt SAE A Flange
shaft spline shaft



Main specifiction:


Main Specifications:
Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
65 80 100 125 160 200 250 315 400 475
Geometric displacement
(cm3 /rev.)		 65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N·m) cont. 185 235 295 385 455 540 660 765 775 845
int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
int. 27.5 31 31 31 26 26 26 24 17 14
peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.



Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor



Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor

Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor

Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor

Our advantages

1. Technical strength and product quality assurance

ISO 9001 quality management system certification;Advanced production equipment and processes

2. Production capacity and delivery reliability

having the ability of mass production to meet the demand of customers' large-volume orders

having an efficient logistics system to ensure that products are delivered to customers on time

3. Industry experience and customized service capability

having rich experience in the Orbital motor industry and be familiar with the specific needs and standards of the industry

4.After-sales service and technical support system

5. R&D innovation capability and industry trend tracking

6. Price competitiveness and cost optimization
