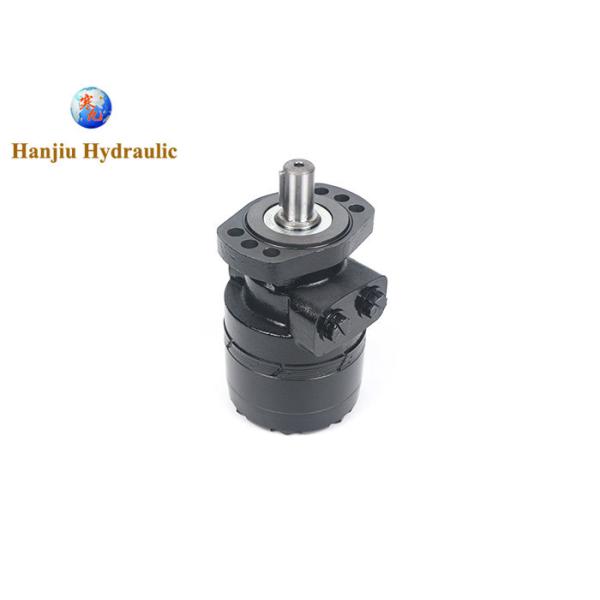

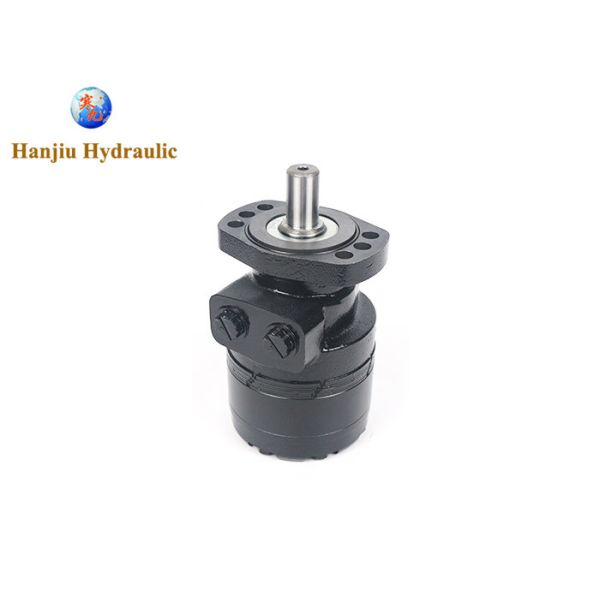

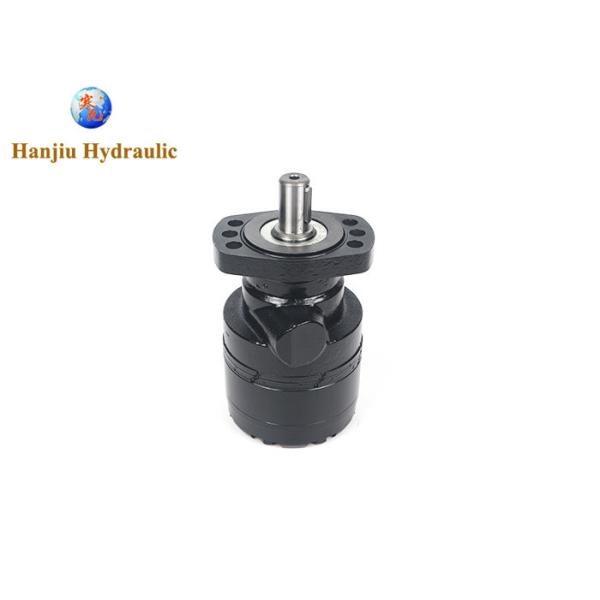

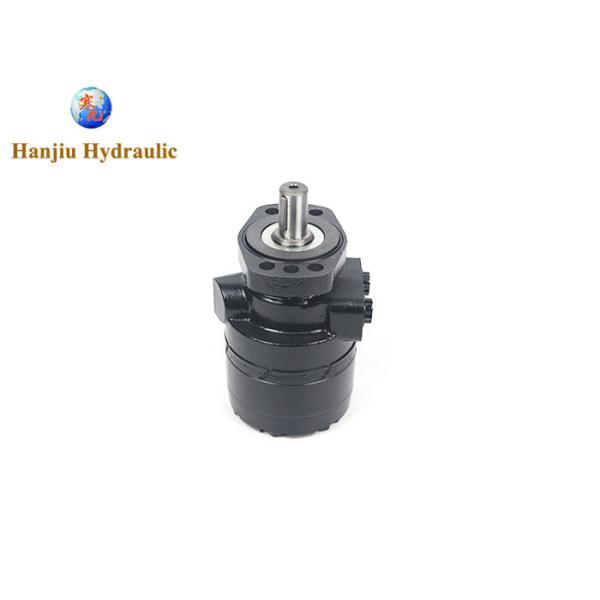

LSHT Hydraulic Motor 28.18 In3/rev Magneto 1 Keyed SAE Ports CW - BMER-2-475-FS-RW-S
LSHT Hydraulic Motor 28.18 In3/rev Magneto 1 Keyed SAE Ports CW - BMER-2-475-FS-RW-S
LSHT Hydraulic Motor 28.18 In3/rev Magneto 1 Keyed SAE Ports CW - BMER-2-475-FS-RW-S
LSHT Hydraulic Motor 28.18 In3/rev Magneto 1 Keyed SAE Ports CW - BMER-2-475-FS-RW-S
LSHT Hydraulic Motor 28.18 In3/rev Magneto 1 Keyed SAE Ports CW - BMER-2-475-FS-RW-S
LSHT Hydraulic Motor 28.18 In3/rev Magneto 1 Keyed SAE Ports CW - BMER-2-475-FS-RW-S
LSHT Hydraulic Motor 28.18 In3/rev Magneto 1 Keyed SAE Ports CW - BMER-2-475-FS-RW-S
LSHT Hydraulic Motor 28.18 In3/rev Magneto 1 Keyed SAE Ports CW - BMER-2-475-FS-RW-S
Specifications
Brand Name :
HANJIU
Model Number :
BMER-2-475-FS-RW-R-B
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
170 usd/pc
Payment Terms :
T/T,Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
box, pallet
Product :
Low Speed High torque Hydraulic Motor
Model No. :
BMER-2-475-FS-RW-R-B
Size :
470ml/r
Flange :
Magneto Mount 6-Hole flange
Shaft :
25.4mm key shaft
Rotation :
CCW
Port :
7/8-14UNF
Material :
Cast iron
Description

LSHT Hydraulic Motor - 28.18 in³/rev - Magneto - 1" Keyed - SAE Ports - CW - BMER-2-475-FS-RW-S


Quick review:


Model no.: BMER-2-475-FS-RW-R-B


matching White motor RE530/531 ;Parker TG series motor


displacement 470 ml/r
flange wheel mount
pilot 82.55*5
ports BMER-2-475-FS-RW-R-B
output shaft
Shaft RW: Cylindrical shaft Ø25.4
Parallel key 6.35x6.35x31.75
rotation right
paint black




Specification:


Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.)
118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90



LSHT Hydraulic Motor 28.18 In3/rev Magneto 1

LSHT Hydraulic Motor 28.18 In3/rev Magneto 1


LSHT Hydraulic Motor 28.18 In3/rev Magneto 1

LSHT Hydraulic Motor 28.18 In3/rev Magneto 1

The Orbital motor specifications system is like a precision gear set, where the optimization of each parameter affects the overall performance. From the basic formulas of pressure and displacement to the in-depth synergy of materials and processes, parameter selection is not only the result of scientific calculations, but also the crystallization of engineering experience. With the penetration of intelligence and new material technology, the parameter boundaries are constantly being broken through, pushing this classic hydraulic component towards a new stage of higher efficiency and reliability.




orbital motor specs

orbital motor size chart

orbital motors diagram

orbital motor catalog pdf

orbital motor conversion chart

orbital motor operating principle

orbital motors for sale

orbital motor manufacturers



LSHT Hydraulic Motor 28.18 In3/rev Magneto 1
