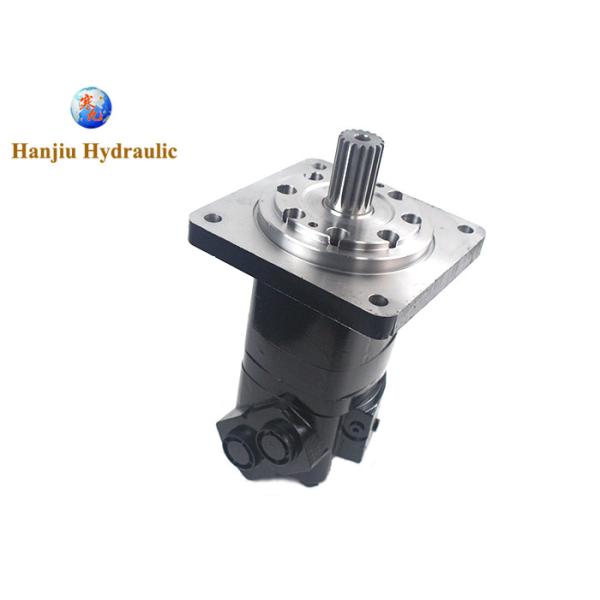

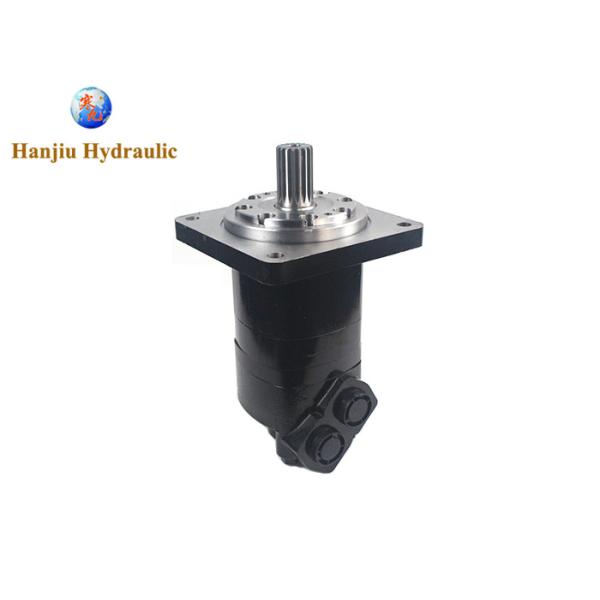

Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor
Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor
Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor
Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor
Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor
Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor
Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor
Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor
Specifications
Brand Name :
HANJIU CHINA
Model Number :
112-1131-006
Certification :
CE/ISO9001:2015
Place of Origin :
CHINA
MOQ :
50 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
100000 pieces per year
Delivery Time :
25 - 35 work days
Packaging Details :
2pcs/32x32x17cm
type :
charlynn 6000 series
Flange :
4 bolts big square flange
Shaft :
17 teeth spline shaft
displacement :
312cc
Max Speed :
cont.304/int.455rpm
Material :
cast iron
Description

hydraulic low speed high torque motor 112-1031-006 spline shaft big flange charlynn 6000 motor

Product details

order type:BMK6

displacement:312 cubic centimetre per revolution

Flange:Standard; (SAE D) 4 Bolt; 152.4 [6.00] Pilot Dia. 15.24 [.600] Dia. Holes On 228.6 [9.00] Dia. Bolt Circle; (SAE D) With O-Ring Groove To Accept Arp-163 O-Ring

shaft:spline

ports:1.3125-12 UN-2B SAE O-Ring Ports - Staggered Ports

fit:Mobile equipment, Snow Removal, Mowing, Spayer, Trencher, Wood products

quality:aftermarket OEM quality

Main Specifications:

Type

BMK6

200

BMK6

250

BMK6

315

BMK6

400

BMK6

500

BMK6

630

BMK6

800

BMK6

1000
Geometric displacement
(cm3 /rev.)		 195.6 246.1 311.6 391.3 490.8 623 802.4 981.6
Main speed(rpm) cont. 765 610 480 382 304 240 186 152
int. 865 830 690 570 455 360 280 230
Max torque N.M cont. 565 710 920 1160 1445 1480 1580 1675
int. 840 1080 1325 1625 1880 1890 1880 1860
Max pressure drop (Mpa) cont. 20 20 20 20 20 17.5 14 14
int. 30 30 30 30 27.5 22.5 15.5 14
Weight (kg) 26.3 26.8 27.3 28 28.8 29.6 30.5 32

Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 MotorHydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor

CHARLYNN 6000 SERIES MOTORS WE CAN SUPPLY

112-1001-006 112-1375-006 112-1145-006 112-1093-006 112-1069-006
112-1005-006 112-1383-006 112-1150-006 112-1094-006 112-1076-006
112-1006-006 112-1446-006 112-1158-006 112-1095-006 112-1080-006
112-1007-006 112-1456-006 112-1161-006 112-1096-006 112-1088-006
112-1011-006 112-1528-006 112-1162-006 112-1097-006 112-1089-006
112-1012-006 112-1560-006 112-1163-006 112-1098-006 112-1090-006
112-1013-006 113-1019-006 112-1164-006 112-1099-006 112-1091-006
112-1017-006 113-1020-006 112-1166-006 112-1104-006 112-1092-006
112-1018-006 113-1021-006 112-1180-006 112-1107-006 113-1075-006
112-1019-006 113-1022-006 112-1182-006 112-1108-006 113-1076-006
112-1020-006 113-1023-006 112-1193-006 112-1109-006 113-1077-006
112-1021-006 113-1025-006 112-1206-006 112-1111-006 113-1078-006
112-1022-006 113-1026-006 112-1207-006 112-1115-006 113-1079-006
112-1023-006 113-1027-006 112-1209-006 112-1116-006 113-1080-006
112-1024-006 113-1028-006 112-1213-006 112-1128-006 113-1081-006
112-1025-006 113-1047-006 112-1214-006 112-1131-006 113-1082-006
112-1026-006 113-1051-006 112-1215-006 112-1138-006 112-1320-006
112-1052-006 113-1052-006 112-1216-006 113-1083-006 112-1324-006
112-1053-006 113-1053-006 112-1217-006 113-1084-006 112-1334-006
112-1054-006 113-1057-006 112-1218-006 113-1085-006 112-1336-006
112-1055-006 113-1058-006 112-1219-006 113-1086-006 112-1345-006
112-1056-006 113-1059-006 112-1220-006 113-1087-006 112-1350-006
112-1057-006 113-1063-006 112-1227-006 113-1093-006 112-1359-006
112-1058-006 113-1064-006 112-1229-006 113-1095-006 112-1360-006
112-1059-006 113-1065-006 112-1230-006 113-1100-006 112-1067-006
112-1060-006 113-1066-006 112-1247-006 113-1101-006 112-1068-006
112-1061-006 113-1067-006 112-1253-006 113-1108-006 113-1073-006
112-1062-006 113-1068-006 112-1254-006 113-1121-006 113-1074-006
112-1063-006 113-1069-006 112-1264-006 113-1133-006 112-1307-006
112-1064-006 113-1070-006 112-1287-006 113-1140-006 112-1309-006
112-1065-006 113-1071-006 112-1290-006 113-1143-006 113-1157-006
112-1066-006 113-1072-006 112-1305-006 113-1150-006 113-1165-006
