Specifications
Brand Name :
HANJIU
Model Number :
BMM
Certification :
CE
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
70000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type :
Gerotor Hydraulic Motor
max torque :
cont.25n.m/int35n.m
max speed :
cont814rpm/int.1000rpm
Displacement :
20cc
max flow :
cont.20l/min int.25l/min
max.output :
cont.2.4kw/int.3.2kw
Description

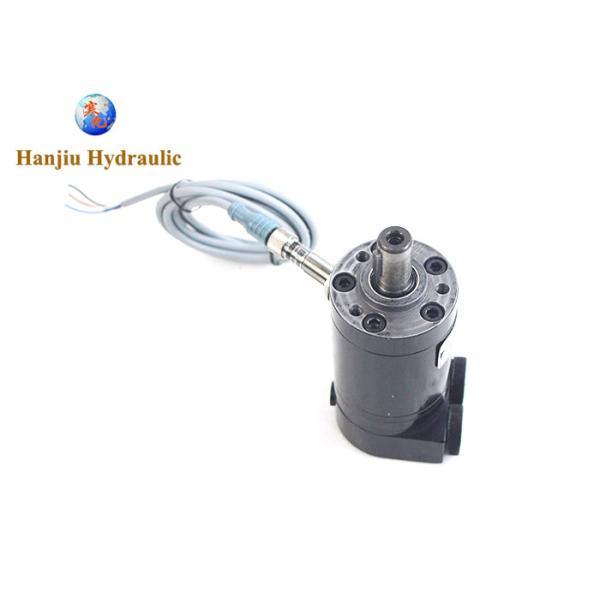

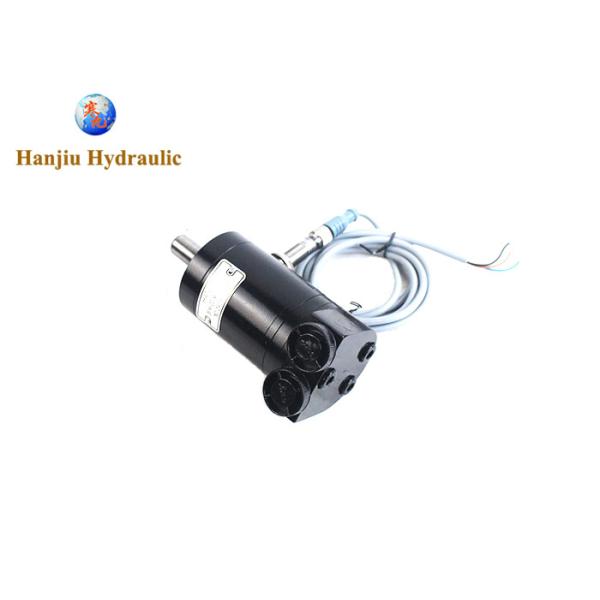

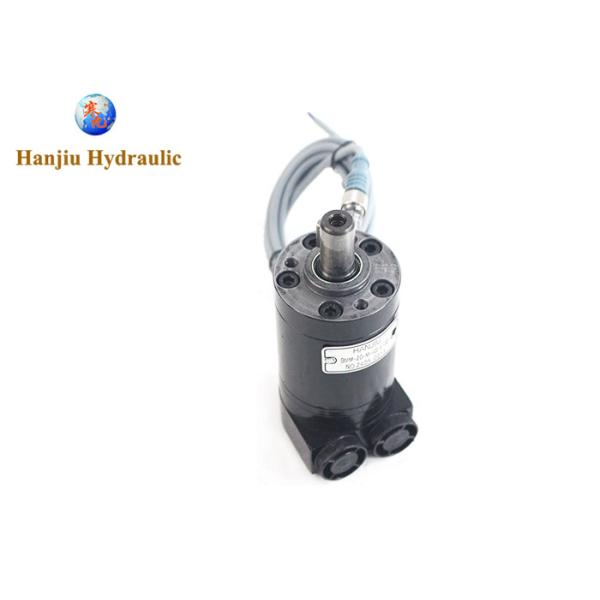

Hydraulic Orbit Motor OMM20 MM20 BMM20 speed sensor motor Side Ports With Key Shaft

Product Details:

Brand:Hanjiu

type:OMM20/BMM20

shaft:key shaft

ports:side ports

special:with speed sensor

Main Specifications:

type BMM8 BMM12 BMM20 BMM32 BMM40 BMM50
displacement 8.2 12.9 19.9 31.6 39.8 50.3
Max speed(rpm) rated 1537 1256 814 513 452 358
Cont. 1950 1550 1000 630 500 400
int. 2450 1940 1250 800 630 500
Max Torque
(N*M)		 rated 8 13 19 31 37 33
Cont. 11 16 25 40 45 46
int. 15 23 35 57 70 88
peak 21 33 51 64 82 100
Max speed
(kw)		 rated 1.3 1.7 1.7 1.7 1.7 1.2
Cont. 1.8 2.4 2.4 2.4 2.2 1.8
int. 2.6 3.2 3.2 3.2 3.2 3.2
Max pressure
drop(MPa)		 rated 9 9 9 9 8.5 6
Cont. 10 10 10 10 9 7
int. 14 14 14 14 14 14
peak 20 20 20 16 16 16
Max flow(L/min) rated 14 18 18 18 20 20
Cont. 18 20 20 20 20 20
int. 20 25 25 25 25 25
Weight(kg) 1.9 2 2.1 2.2 2.3 2.4

Type Max.inlet pressure
BMM8-50 Cont. 17.5
(Mpa) Int. 22.5
