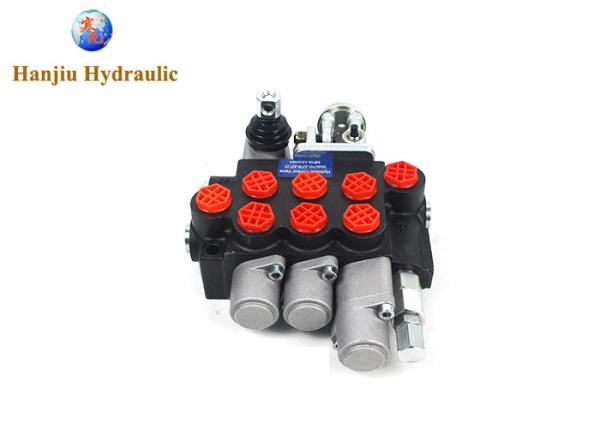

Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick
Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick
Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick
Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick
Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick
Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick
Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick
Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick
Specifications
Brand Name :
HANJIU
Model Number :
3P40-J
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 sets per year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Model No. :
3p40
Warranty :
12-18 months
Spool :
1, 2, 3, 4, 5, 6, ...
Flow :
40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Spool function :
floating control type
Material :
cast iron
Description

Monoblock Directional Control Valve 40 L/Min (11GPM) 3 Spool 4 Positions Double Actiong + Joystick

P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.

.Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.

.Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

.Oil way: Parallel circuit, power beyond option

.Control Way: Manual, Hydraulic,Pneumatic, Electro-pneumatic, Electro-hydraulic,
Solenoid, Joystick, Joystick and Cable, Micro Switch

.Valve construction: monoblock construction, 1-7 levers.

Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 250 bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools with 1 to 7


Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick

Pressure range:

Maximum supply pressure: 250Bar (3625,94 psi)

Maximum pressure on return: 50Bar (725,19 psi)

Maximum pressure on sections: 300Bar (4351,13 psi)


The opening pressure of the bypass valve increases proportionally with increasing flow rate:

180 bar (2610,68 psi) at 10 l/min

190 bar (2755,72 psi) at 20 l/min

200 bar (2900,75 psi) at 30 l/min

210 bar (3045,79 psi) at 40 l/min

It is recommended to check and set the correct pressure before commissioning.

Self-adjustable, full rotation 30Bar (435,11 psi change).

Monoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + JoystickMonoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + JoystickMonoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + JoystickMonoblock Directional Control Valve 40 L/Min 11GPM 3 Spool 4 Positions Double Actiong + Joystick
