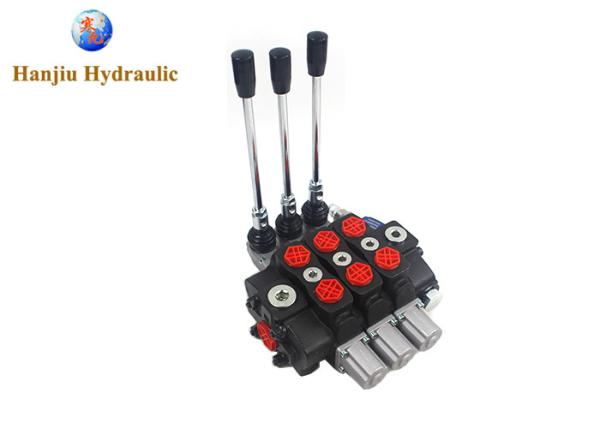

High Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP Ports
High Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP Ports
High Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP Ports
High Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP Ports
High Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP Ports
High Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP Ports
High Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP Ports
High Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP Ports
Specifications
Brand Name :
HANJIU
Model Number :
HSSD8-3
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
Contact the seller to get a quote
Payment Terms :
L/C, T/T, Western Union, Western Union
Supply Ability :
300000 sets per year
Delivery Time :
25 - 35 work days
Packaging Details :
Carton, Box, Pallets
Item :
Hydraulic valves
Material :
cast iron
Apply to :
Construction application,Cranes,excavators
Spool :
3 spools
Max operation pressure :
315 bar
control type :
manual control type
Description

High pressure hydraulic directional valve HSSD8, 3 spools, manual control type, BSPP ports

HSSD series directional control valve, flow range of 30-400L/min,

can meet different flow requirements; Its compact, heavy and simple design, can be used in a variety of work scenarios for open or closed centre hydraulic systems; stable performance, a variety of control methods to choose


Control type: manual, cable, pneumatic,
electro-hydraulic,solenoid, etc.


Circuit type: parallel

flow rate 80 liters
number of spools 3spools
inlet section valve side inlet, with relief valve
relief valve set pressure 315bar
inlet port size G3/8,G1/2, G3/4
spool type 3 positon, double acting
handle side arrangement standard type
spool cap side arrangement 3position, spring return,manual control,detent control,
working section arrangement standard type
work port size G3/8,G1/2,G4/3,G1
outlet section type top outlet,side
outlet port size G3/8,G1/2,G4/3,G1

High Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP PortsHigh Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP PortsHigh Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP PortsHigh Pressure Hydraulic Directional Valve HSSD8 3 Spools Manual Control Type BSPP Ports

Other types matching Walvoil valve

SD5 Series:

walvoil integrated multiway valve SD5/2-P(KG-200)/18L/18L/AET

walvoil integrated multiway valve SD5/3-P(KG-200)/18L/18L/18L/AET

walvoil integrated multiway valve SD5/4-P(KG-200)/18L/18L/18L/AET

walvoil Integrated multiway valve SD5/5-P(KG-200)/18L/18L/18L/18L/ 18L/AET

walvoil Integrated multiway valve SD5/6-P(KG-200)/18L/18L/18L/18L/18L/ 18L/AET

Technical parameters: Rated flow 45L/MIN Working pressure setting: 80bar——315bar PABT Size: G3/8"

SD8 Series:

walvoil shard multiway valve SD8/2/AC/28L-160/28L-160/AET

walvoil shard multiway valve SD8/3/AC/28L-160/28L-160/28L-160/AET

walvoil shard multiway valve SD8/4/AC/ 28L-160/28L-160/28L-160/28L-160/28L-160 /AET

walvoil shard multiway valve SD8/5/AC/ 28L-160/28L-160/28L-160/28L-160/28L-160/28L-160/28L-160 /AET

Technical parameters: Rated flow 80L/MIN Working pressure setting: 80bar——315bar PABT Size: G1/2"
