Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155
Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155
Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155
Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155
Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155
Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155
Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155
Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155
Specifications
Brand Name :
HANJIU
Model Number :
BMPH-50
Certification :
CE
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiable
Supply Ability :
90000 Pieces One Year
Packaging Details :
Carton Box
Product Name :
hydraulic geroler motor
Material :
cast iron
Features :
low speed high torque
Displacement :
50CC
Shaft :
1 in. Straight w/ Woodruff key
Description

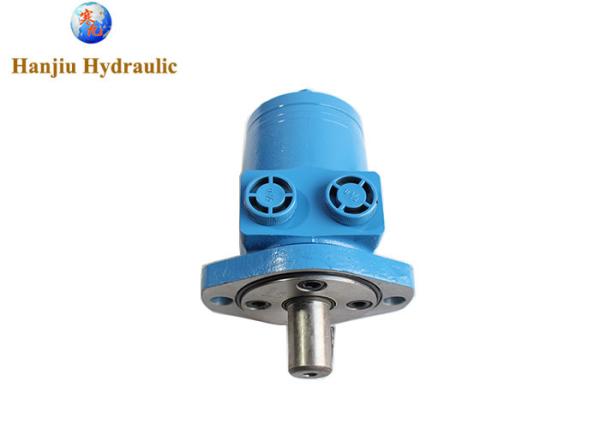

HYDRAULIC MOTOR 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155

HANJIU aftermarker hydraulic motor to suit side belt draper drive on Harvester 900 series Draper cutting platforms. Mounted to the drive roller for the side Draper belt, this 49.5cc motor can be used on either the right hand or feft hand draper decks. It features a 2 bolt mount, 1" straight shaft and 1/2" BSPP ports.

► Product details

model type:BMPH-50

Competibal type:AH159155 101-2627-009

displacement:50cc

flange:Ø13.5 Rhomb-flange , 2-pilot Ø82.5×2.8

shaft: φ25.4mm,woodruff key shaft

port threads:NPT ports



► Specification

Type BMPH
36		 BMPH
50		 BMPH
80		 BMPH
100		 BMPH
125		 BMPH
160		 BMPH
200		 BMPH
250		 BMPH
315		 BMPH
400		 BMPH
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8

Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155



Hydraulic Motor 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155

Hydraulic Components in Agricultural Machinery

Hydraulic systems are integral to modern agricultural machinery, providing power and control for a wide range of functions.

Orbital motors Provide high torque at low speeds, ideal for driving implements like

Harvesters Header lift, cutterbar drive, grain unloading, and platform controls.

Balers Bale chamber control, pick-up, and tying mechanisms.

Sprayers Boom control, pump operation, and agitation.


HANJIU TECHNOLOGY,is a young innovational manufacturer,was established in Shijiazhuang in 2011 by Mr.HAN,who is an engineer and has been working more than 15years on the hydraulic and automatic fields.

During 10 years,HANJIU became a market leader in China and customers are from all over the world.

Right now,HANJIU Brand is becoming one of the worldwide hydraulic brands with the widest range and depth of hydraulic products in the market.
