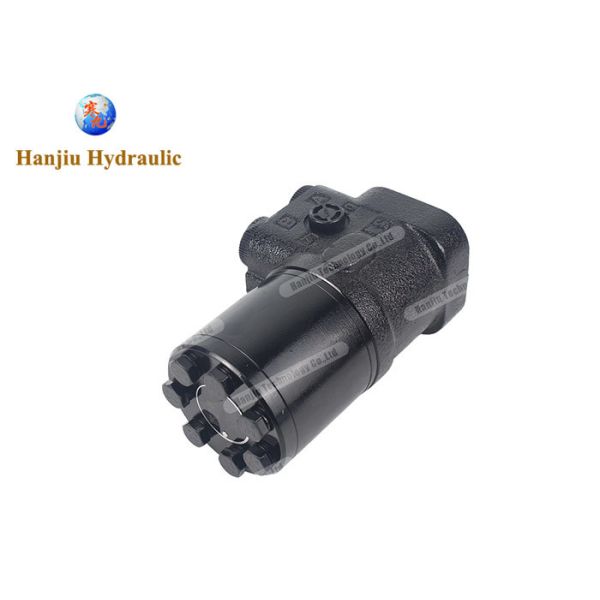

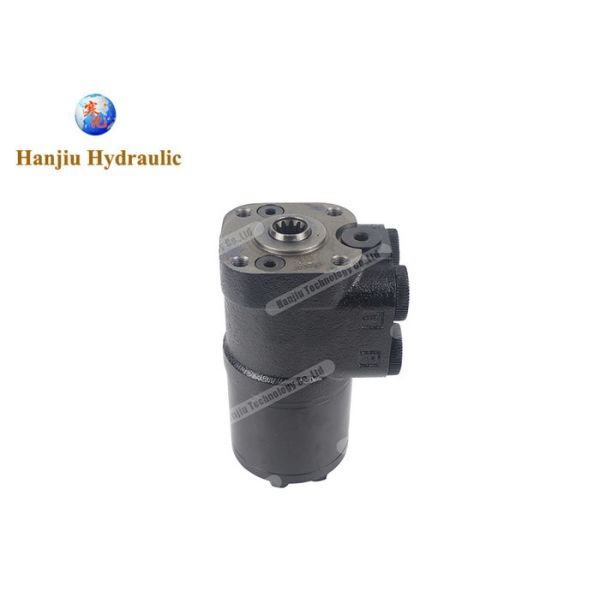

Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors
Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors
Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors
Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors
Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors
Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors
Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors
Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors
Specifications
Brand Name :
HANJIU
Model Number :
101S-5T-500-15-E
Certification :
CE
Place of Origin :
CHINA
MOQ :
50 Sets
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
300000 Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Product Name :
Tractor Spare Parts
Relieve Valve :
15Mpa
Shock Valve :
21Mpa
Function :
Load sensing
Displacement :
500 ml/r
Max input speed :
75rpm
Description

Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors


type number:Hanjiu 101S-5T-500-15-E

displacement:500cc

function:load sensing type

relief valve pressure settings:15mpa

shock valve pressure settings:21mpa

crossing code:OSPC500 LS,HKUS500/5T

Specification:

Parameters Series
101S-5(T)(TE)(L)(E)-***
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400 500
Max.input speed(rpm) 100 75
Max.input pressure(Mpa) 17.5
Max.cont.back pressure 2.5
Relief Valve Pressure Settings(Mpa) 06,07,08,10,12,14,15,16.5,17.5
Shock Valves Pressure Settings(Mpa) 12,13,14,16,18,20,21,22,23.5
Weight(kg) 5.75 5.81 5.89 5.93 6.1 6.3 6.5 6.73 6.91 7.1 7.5 8.3
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176 183






Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors

Hydrostatic Steering Unit HKUS500/5T load sensing orbitrol for tractors
