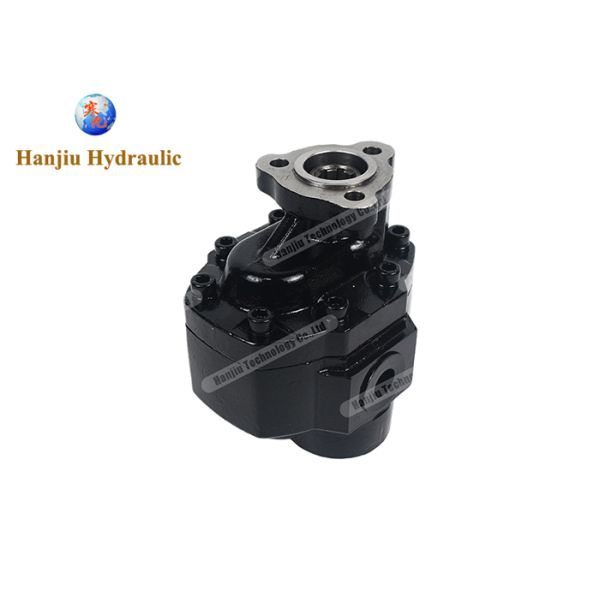

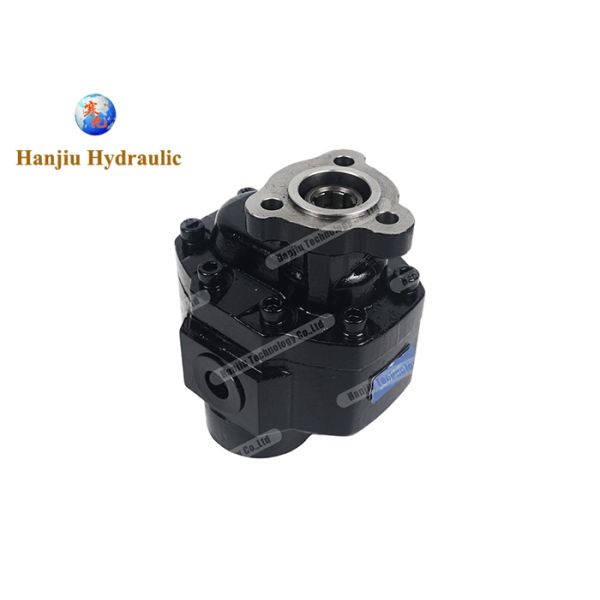

NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements
Specifications
Brand Name :
Hanjiu
Model Number :
NPH-43 UNI-43
Certification :
CE
Place of Origin :
China
MOQ :
100 pcs
Price :
Contact exporter to get a quote
Payment Terms :
T/T
Supply Ability :
200000 pcs per year
Delivery Time :
15 - 20 days
Packaging Details :
Carton and Wooden Box
Material :
Hydraulic Pump
Model No. :
NPH-43 UNI-43
Rotation :
Right
Brand :
Hanjiu
Description

DESCRIPTION
TYPE OF PUMP: NPH-43 UNI-43
DISPLACEMENT CC: 43
ROTATION:Right



Product description:
High-performance OMFB NPH-43 hydraulic gear pump replacement.
Right rotation design with a 3-bolt UNI flange and G 3/4” threaded ports.
An excellent choice for industrial, agricultural and truck hydraulic systems.



NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements


NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements






Main features:

Type: NPH-43
Rotation: Right
Inlet port (IN): G 3/4”
Outlet port (OUT): G 3/4”
Displacement: 43 cm³/rev
Max. working pressure: 280 bar
Peak pressure: 310 bar
Maximum speed: 2800 rpm
Minimum speed: 300 rpm
Shaft type: 6×21×25 (ISO 14)
Mounting: 3-bolt, Ø12 mm
Housing material: cast iron
Weight: 10.5kg





FAMILY DESCRIPTION
Autocompensated one-way cast-iron pumps for medium-heavy duty, displacements from 17 to 125 cc- 3 hole Flanging UNI 21x25- Side intake, side and rear delivery OPTIONAL: bronze thrust plate. This is crucial in mobile machinery.
