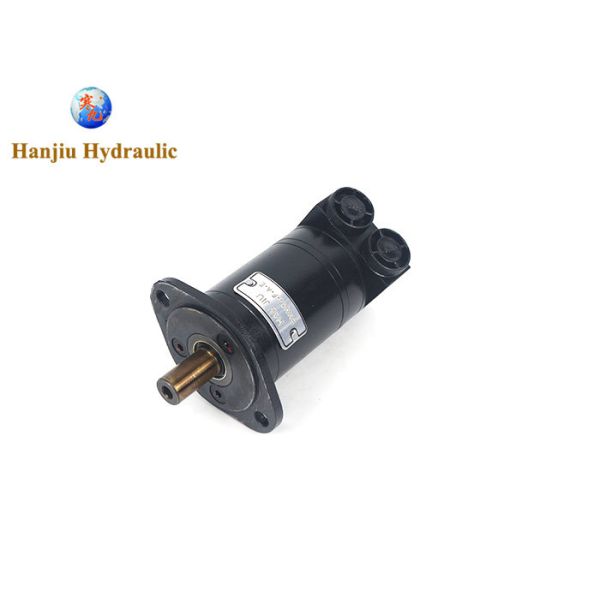

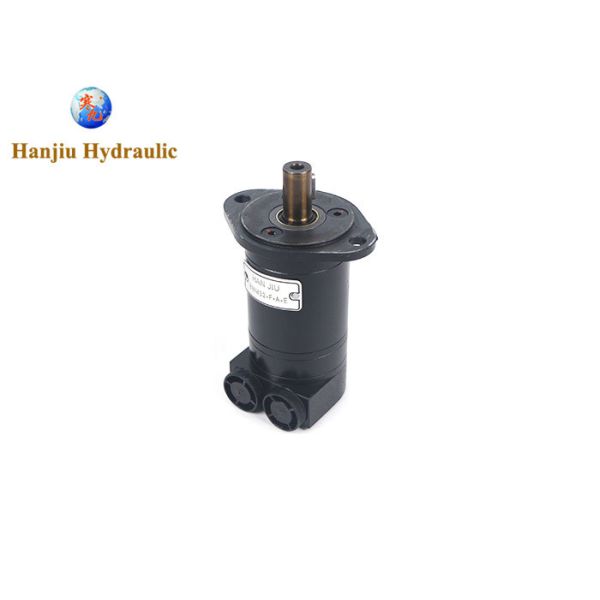

OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange
OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange
OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange
OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange
OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange
OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange
OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange
OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange
Specifications
Brand Name :
HANJIU
Model Number :
BMM-32-F-A-E
Certification :
CE
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability :
70000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type :
Gerotor Hydraulic Motor
max torque :
cont.31n.m/int40n.m
max speed :
cont.513rpm/int.630rpm
material :
cast iron
max flow :
cont.18l/min int.20l/min
Description

OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange


Product Details:


Brand:Hanjiu

type:OMM32/BMM32

shaft:16mm key shaft

ports:BSPP side ports

flange:2-Ø9 Rhomb-flange, pilot Ø63×2


Main Specifications:


type BMM8 BMM12 BMM20 BMM32 BMM40 BMM50
displacement 8.2 12.9 19.9 31.6 39.8 50.3
Max speed(rpm) rated 1537 1256 814 513 452 358
Cont. 1950 1550 1000 630 500 400
int. 2450 1940 1250 800 630 500
Max Torque
(N*M)		 rated 8 13 19 31 37 33
Cont. 11 16 25 40 45 46
int. 15 23 35 57 70 88
peak 21 33 51 64 82 100
Max speed
(kw)		 rated 1.3 1.7 1.7 1.7 1.7 1.2
Cont. 1.8 2.4 2.4 2.4 2.2 1.8
int. 2.6 3.2 3.2 3.2 3.2 3.2
Max pressure
drop(MPa)		 rated 9 9 9 9 8.5 6
Cont. 10 10 10 10 9 7
int. 14 14 14 14 14 14
peak 20 20 20 16 16 16
Max flow(L/min) rated 14 18 18 18 20 20
Cont. 18 20 20 20 20 20
int. 20 25 25 25 25 25
Weight(kg) 1.9 2 2.1 2.2 2.3 2.4


Type
Max.inlet pressure
BMM8-50 Cont. 17.5
(Mpa) Int. 22.5



OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange


OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange


Made by HANJIU a world leader within production of low speed orbital motors with high torque. Appealing to a large number of applications and a part of the program is characterised by motors that can be adapted to the following applications:
Construction
Agricultural
Material handling & Lifting
Forestry
Lawn & turf equipment
Special purpose
Machine tools & stationary
Marine equipment


We can offer more than 3,000 different orbital motors, categorised in types, variants and sizes (including different shaft versions, motor sizes and torques).

Characteristic features:
Smooth running over the entire speed range
Constant operating torque over a wide speed range
Long life under extreme operating conditions
High return pressure without the use of drain line (High pressure shaft seal)
High efficiency
High starting torque
Robust and compact design
High radial and axial bearing capacity
For applications in both open and closed loop hydraulic systems
Suitable for a wide variety of hydraulics fluids
