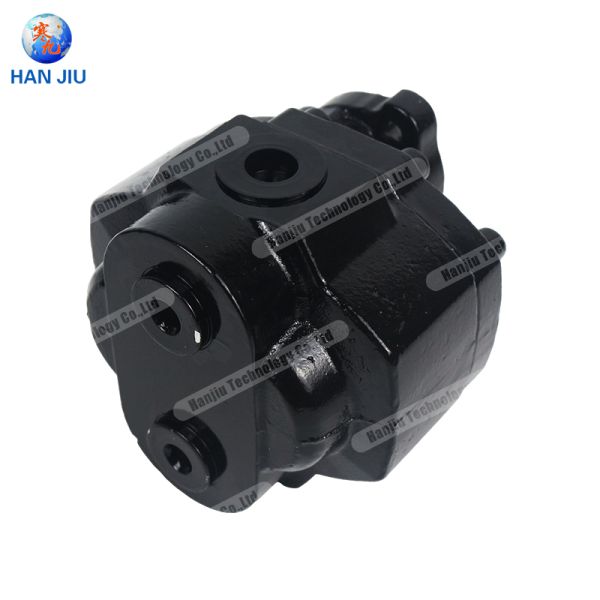

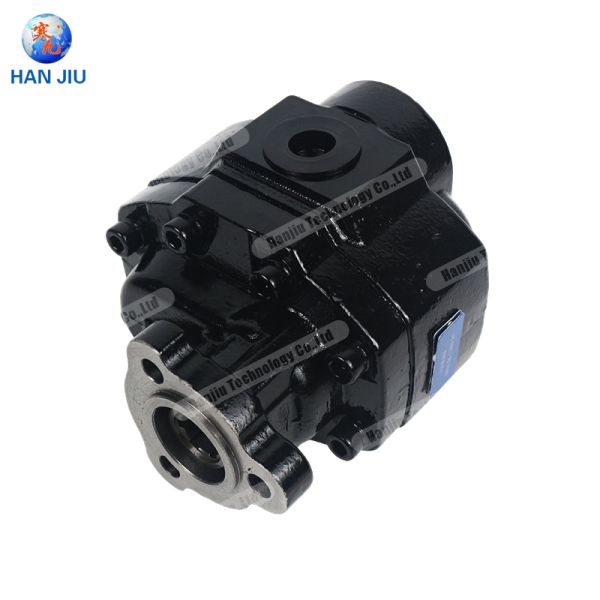

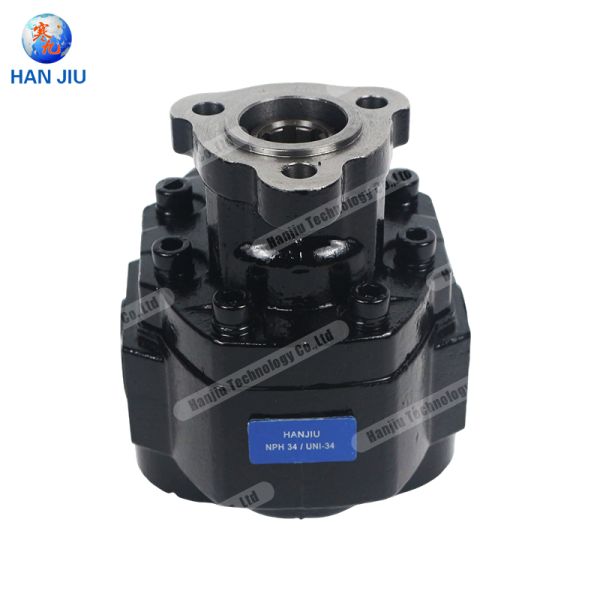

OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty
Specifications
Brand Name :
Hanjiu
Model Number :
NPH-34 UNI-34
Certification :
CE
Place of Origin :
China
MOQ :
100 pcs
Price :
Contact exporter to get a quote
Payment Terms :
T/T
Supply Ability :
100000 pcs per year
Delivery Time :
15 - 20 days
Packaging Details :
Carton and Wooden Box
Material :
Case Iron
Model No. :
NPH-34 UNI-34
Rotation :
Right
Brand :
Hanjiu
Description


OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty


DESCRIPTION
TYPE OF PUMP:NPH- 34
DISPLACEMENT CC:33,88
ROTATION:Right



Product description:
High-performance OMFB NPH-34 hydraulic gear pump replacement.
Right rotation design with a 3-bolt UNI flange and G 3/4” threaded ports.
An excellent choice for industrial, agricultural and truck hydraulic systems.


OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty


OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty


OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty




Main features:

Type: NPH-34
Rotation: Right
Inlet port (IN): G 3/4”
Outlet port (OUT): G 3/4”
Displacement: 33.88 cm³/rev
Max. working pressure: 280 bar
Peak pressure: 310 bar
Maximum speed: 2800 rpm
Minimum speed: 300 rpm
Shaft type: 6×21×25 (ISO 14)
Mounting: 3-bolt, Ø12 mm
Housing material: cast iron
Weight: 10.5kg



CODE
10501100344
Standard



FAMILY DESCRIPTION
Autocompensated one-way cast-iron pumps for medium-heavy duty, displacements from 17 to 125 cc- 3 hole Flanging UNI 21x25- Side intake, side and rear delivery OPTIONAL: bronze thrust plate. This is crucial in mobile machinery.
