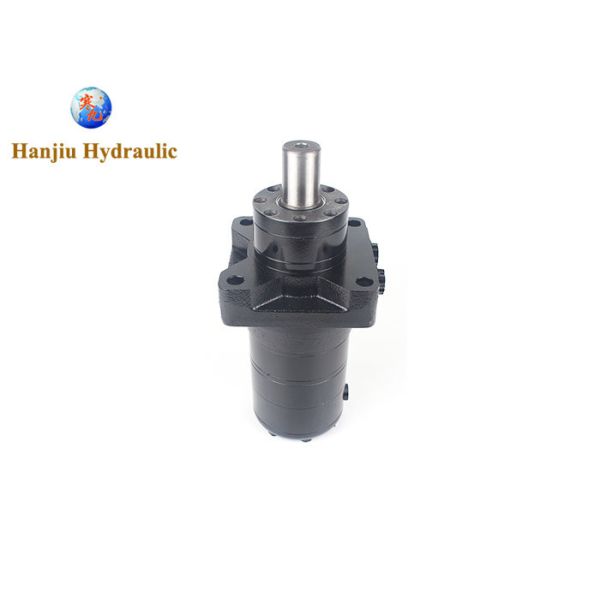

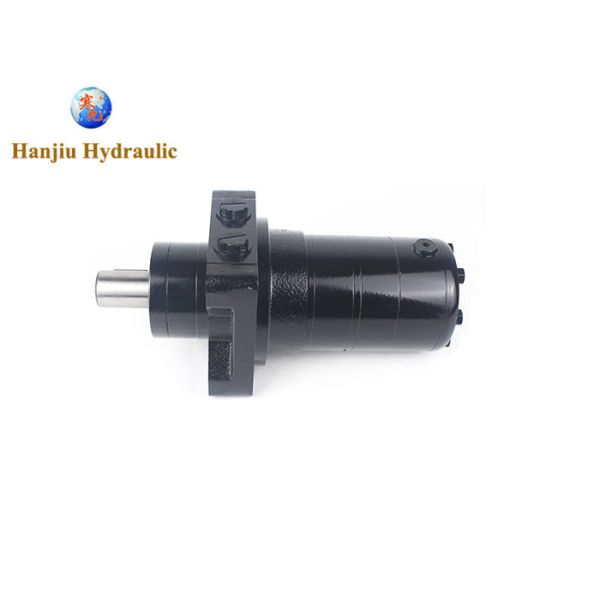

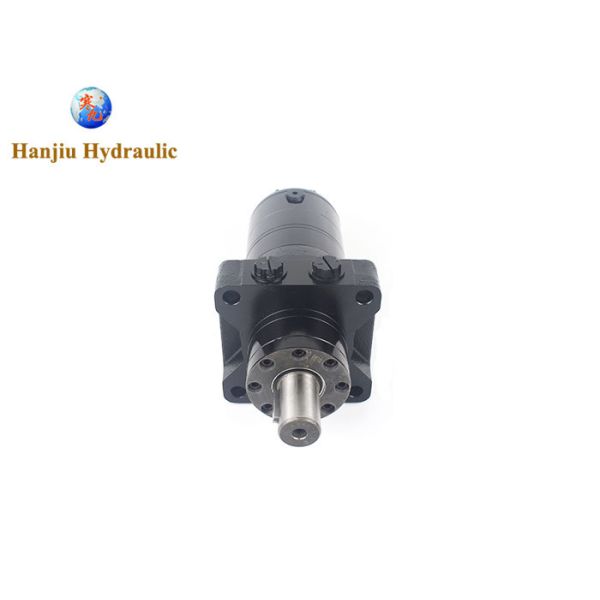

Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake
Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake
Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake
Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake
Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake
Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake
Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake
Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake
Specifications
Brand Name :
HANJIU
Model Number :
bmrwn-bk01-160-g-s-g
Certification :
CE
Place of Origin :
China
MOQ :
20 Pieces
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability :
300000 pieces per year
Delivery Time :
25-30 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type :
Hydraulic Oil Motor
material :
cast iron
Model No. :
bmrwn-bk01-160-g-s-g
Displacement :
160CC
Speed :
378RPM - 3475RPM
Flow :
60 lpm -75 lpm
pressure :
16.5mpa-22.5mpa
output :
12.5-14kw
Description

Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake


Specifications:

  1. BMRWN-BK01-160-G-S-G
  2. displacement :160CC
  3. wheel flange
  4. 31.75 key shaft
  5. 7/8-14 O-ring manifold
    4×5/16-18UNC, 7/16-20UN
  6. brake release port G1/4



Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type BMR
Bk01
36		 BMR
Bk01
50		 BMR
Bk01
80		 BMR
Bk01
100		 BMR
Bk01
125		 BMR
Bk01
160		 BMR
Bk01
200		 BMR
Bk01
250		 BMR
Bk01
315		 BMR
Bk01
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5


Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake
Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake

Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake

APPLICATION
Conveyors
Feeding mechanism of robots and manipulators
Metal working machines
Textile machines
Food industries
Agriculture machines
Mining machinery etc.




HANJIU focuses on continuous research in fluid power, material applications, and system integration, with an emphasis on the development and manufacturing of motor orbital oms. Relying on advanced manufacturing equipment and a comprehensive quality inspection system, we ensure that every product delivered meets strict technical standards, from precision machining of core components to full performance testing of the entire machine. HANJIU not only provides high-quality hydraulic components but also strives to be a reliable partner for customers in the field of power transmission, helping improve the performance and value of industrial equipment worldwide with advanced technology and stable products.
